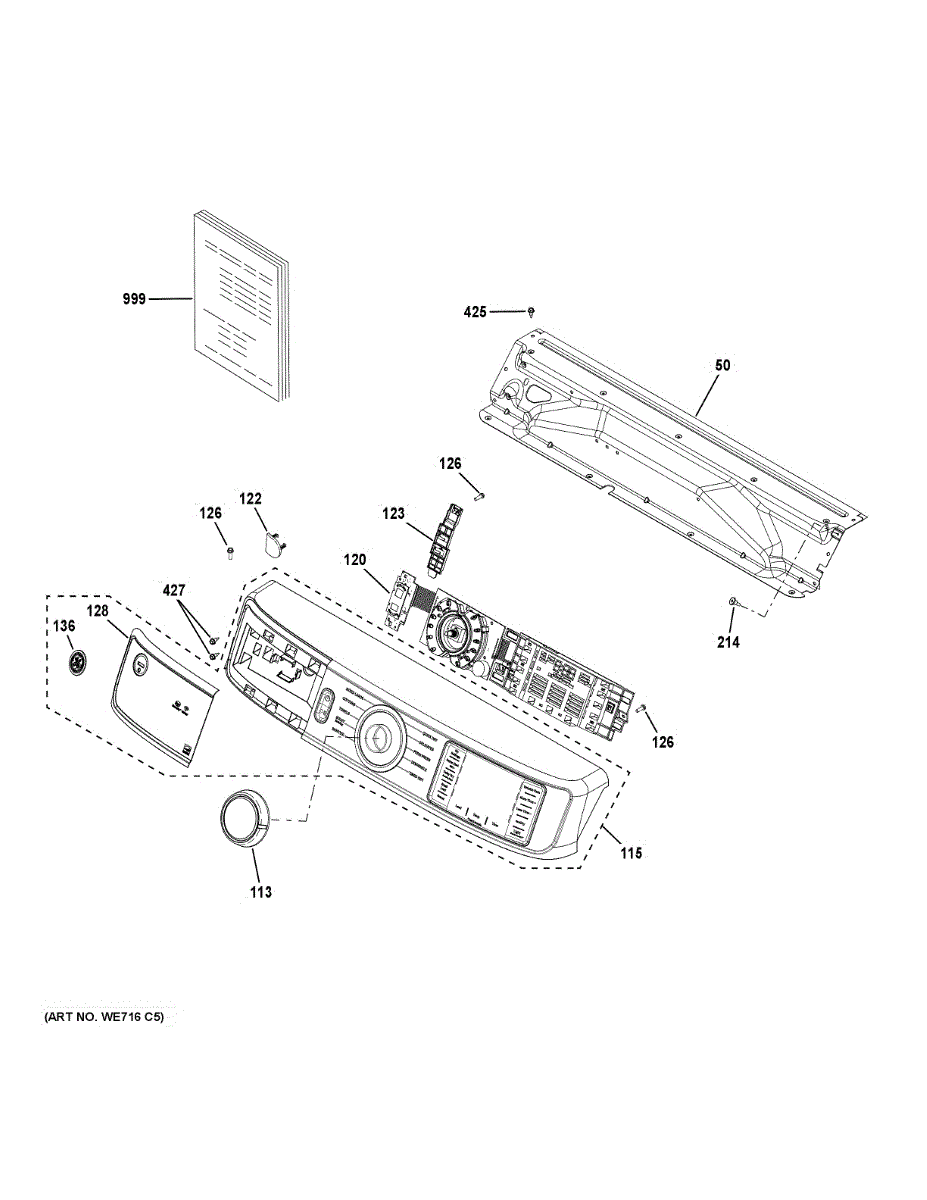

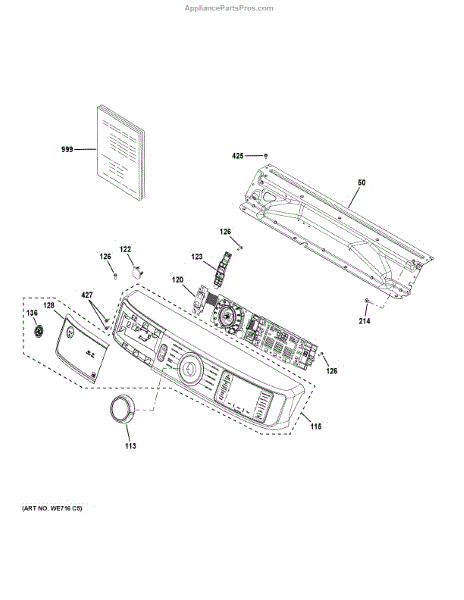

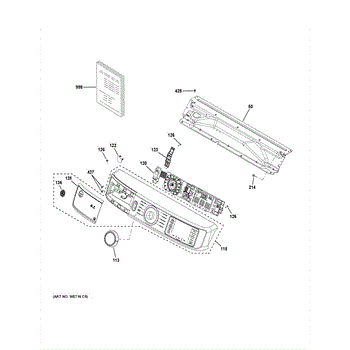

Parts for Ge GFD65GSPN1SN: Controls & Backsplash Parts

The User Interface Board is an OEM part for GE electric dryers. Located at the control panel, it acts as the central processing unit that facilitates communication between buttons, displays, and electrical units. The user interface board receives input signals from the touchpad buttons and uses programming to trigger the correct dryer functions. It also powers the digital displays and sends output signals to govern components like the motor, thermostat, and timer.

Causes of interface board failure can be water damage, fluctuations in current supply over time distorting circuits, or heavy impacts potentially dislodging connections.

Symptoms of a bad user interface board include:

• Non-responsive or unresponsive buttons
• Inaccurate readings on LED displays
• Failure to advance programs or time settings

Compatible with some Kenmore dryer models that contain GE control internals.

This bracket secures the power/start button to the appliance control panel so the button stays aligned and functions correctly. Replacing a damaged bracket restores proper button fit and reliable user control. What it does:

• Holds the power/start button in place inside the control panel assembly.
• Keeps the button aligned so presses engage the switch consistently.
• Prevents the button from rattling, sticking, or falling out of the panel.
• Used when the button housing is cracked, bent, or missing mounting support.

• Disconnect power to the appliance before beginning any work.
• Remove the control panel trim or fascia to access the bracket; keep screws and fasteners organized.
• Handle internal components gently to avoid damaging the button, switch, or wiring.

8-18 hi/lo 5/8

The GE Badge is an OEM part for GE washing machines. It is an emblem installed on the exterior of the washer that identifies the manufacturer and brand. Beyond aesthetics, the badge also demonstrates authenticity and quality assurance for the appliance.

Causes of a bad badge can include damage from impact or weathering over time, loss of adhesion to the outer casing, or fading/wear of printed graphics.

Symptoms of a bad badge include:

• Missing or loose badge that is no longer securely attached
• Faded or illegible print that fails to display the brand
• Cracks or pieces breaking off the badge surface

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8 - 18 ab.

This 10-32 screw with a hex-washer head fastens panels, brackets, or components as specified by the manufacturer. Replacing worn or missing hardware restores a secure fit and helps reduce vibration, rattling, and loosening during operation.

• Provides 10-32 machine-thread fastening at the designated mounting point
• Hex-washer head helps distribute load for a tight, reliable clamp
• Replace if the original is missing, stripped, corroded, or won't stay tight
• Helps address loose panels/brackets, vibration, or rattling noises

• Disconnect power before servicing; if working on a washer, also shut off the water supply
• Use a driver or nut driver that matches the screw head
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Reinstall any original hardware in the same order it was removed
