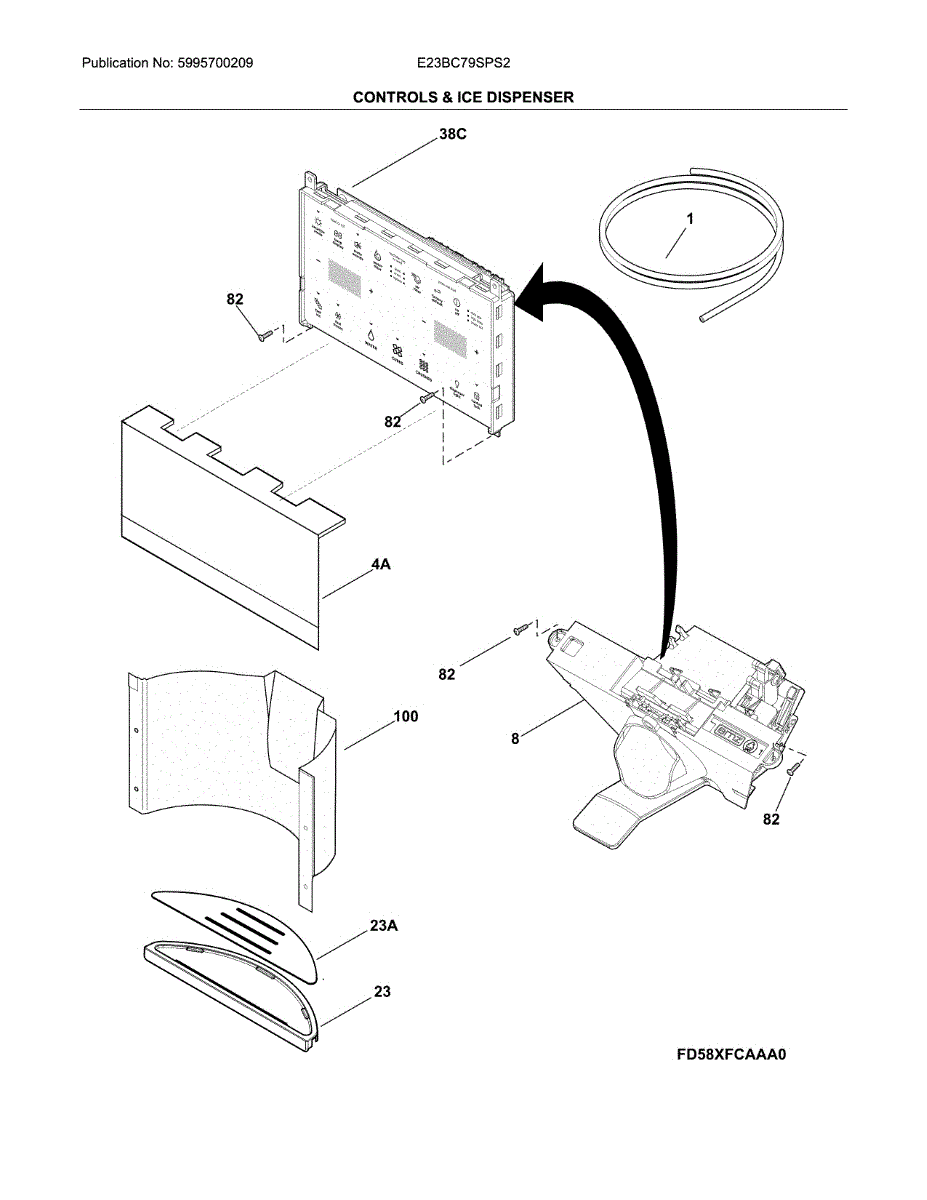

Parts for Electrolux E23BC79SPS2: Controls & Ice Dispenser Parts

This water inlet tube routes potable water from the supply/valve to the refrigerator's water/ice system, keeping the dispenser and icemaker supplied. It's a direct-fit replacement that restores proper water flow and helps prevent leaks from damaged tubing. What it does:

• Channels water from the inlet valve to the dispenser/ice maker assembly
• Restores proper water delivery when original tubing is cracked, clogged, or leaking
• Helps prevent water damage by providing a secure, direct path for supply water
• Matches OEM routing and connection points for proper fit and flow

• One water inlet tube

• Disconnect power and shut off the home's water supply before starting
• Inspect fittings and replace any damaged clips or seals during install
• Use proper tools and avoid kinking the tube; hand-tighten fittings then test for leaks

This refrigerator water tube carries fresh water between the valve, reservoir, dispenser, and/or ice maker. Replacing a cracked or kinked tube restores proper water flow and helps stop leaks inside or behind the refrigerator.

• Directs pressurized water between components in the refrigerator's water system
• Common failure signs: leaks, visible cracking, kinks, or pinhole sprays
• May cause no or slow dispenser flow, or an ice maker that doesn't fill
• Restores correct routing after tubing becomes brittle or damaged with age

• Unplug the refrigerator and shut off the household water supply before servicing
• Place a towel under connections and dispense water to relieve line pressure
• Depress quick-connect collars or loosen clamps to remove the old tube; route the new tube exactly like the original
• Fully seat tubing in fittings, perform a gentle tug test, restore water, check for leaks, and flush several cups to clear air

This dispenser module controls the refrigerator door water and ice dispenser pads and sends the control signals that operate the dispenser. Replacing a failed module restores normal button/pad response and dispenser operation. What it does:

• Receives input from the door dispenser pads or switches and sends signals to the water valve and ice dispenser components.
• Restores responsive dispense pad/button operation when the dispenser is unresponsive or intermittent.
• Can stop erratic or continuous dispensing caused by a faulty dispenser control.
• Works as the electronic interface between the user controls and the dispenser mechanisms.

• Disconnect power to the appliance before starting—electrical shock hazard.
• You may need to remove the refrigerator door inner panel to access the module; keep fasteners organized.
• Handle the module carefully to avoid static damage; avoid touching circuit traces or connectors.
• Reconnect power and test dispenser functions after installation.

This drip tray collects defrost and condensation water and helps channel it to the evaporator/evaporation area, reducing puddles and water damage under the appliance. It's a direct-fit service part designed for easy replacement. What it does:

• Catches meltwater from the defrost cycle and directs it to the evaporator/evaporation area
• Prevents water pooling under or around the appliance that can cause floor damage
• Helps reduce odor and mold risk by containing and directing moisture
• Restores proper drainage when the original tray is cracked, warped, or clogged

• Disconnect power to the appliance before beginning any service
• Remove access panels or kickplate as needed to reach the tray; keep fasteners for reinstallation
• Inspect surrounding seals and drain channel for clogs or damage while replacing the tray
• Handle carefully to avoid bending or cracking the new tray; ensure it seats flat and drains properly before restoring power

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This water tube routes potable water inside the refrigerator to the dispenser and/or ice maker, restoring normal water delivery and preventing leaks. It's a direct-fit replacement that helps maintain proper ice and water operation. What it does:

• Channels water from the refrigerator inlet/valve to the dispenser or ice maker
• Replaces cracked, kinked or punctured tubing that causes leaks
• Stops intermittent or no-water delivery caused by damaged tubing
• Restores steady water flow for ice production and dispensing

• Turn off the refrigerator power and shut off the water supply before starting
• Inspect connection fittings and tubing route; replace any worn clamps or seals as needed
• Use appropriate tools to loosen and tighten fittings without over-torquing

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

Replacement water tube that carries water from the inlet valve to the dispenser and ice system, restoring water delivery and preventing leaks when the original tube is cracked, clogged, or disconnected. What it does:

• Routes water from the refrigerator inlet valve to the ice maker and/or water dispenser.
• Restores normal water flow when the existing tube is blocked, kinked, or leaking.
• Helps stop leaks and puddling caused by cracked or damaged tubing.
• Matches original routing and connections to maintain proper water delivery.

• Disconnect power and shut off the refrigerator water supply before starting work.
• Drain remaining water from the line and place a towel or tray to catch drips.
• Inspect connection fittings and any O-rings; replace seals if damaged to prevent leaks.
• After installation, restore water and power, then check all connections carefully for leaks.

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

The Fill Tube Kit is an OEM part for Frigidaire refrigerators. It contains the tubes used to direct water from the water supply line into the refrigerator's water dispenser and ice maker. As these tubes can degrade over time due to mineral buildup or cracking, this kit provides a like-new replacement to ensure optimal water flow.

Causes of a bad fill tube include mineral or limescale deposits restricting water flow, cracks or leaks developing from general wear and tear, or accidental damage from installation or maintenance issues.

Symptoms of a bad fill tube are:

• Slow or inconsistent water flow from the dispenser
• Dripping or leaks from the fill tube connection points
• Ice maker not working or producing small or misshapen ice cubes
• Water backing up or overflowing in the refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
