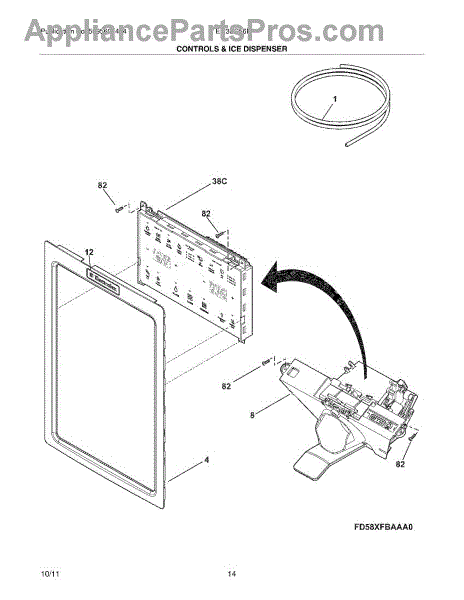

Parts for Electrolux EI23BC56IW9: 13 - Controls & Ice Dispenser Parts

This module cover protects the appliance's electronic control module and wiring from dust, moisture and accidental contact. Its durable plastic shell helps keep the control electronics secure so the appliance operates reliably. What it does:

• Shields the electronic control board and connectors from debris and spills
• Helps prevent accidental contact with live components during use or service
• Keeps wiring and harnesses routed and secured near the control area
• Reduces vibration-related movement and rattling of the control module

• Always disconnect power to the appliance before starting service
• Handle the control board with care and avoid touching electronic components
• Align tabs and mounting bosses, then secure with the original screws—do not overtighten
• If wiring or connectors appear damaged, replace or repair those components before reinstalling the cover

This dispenser module is the door-mounted control assembly that operates the refrigerator's water and ice dispensing functions, restoring proper dispenser response and user control. What it does:

• Controls the dispenser switch and signals to start water or ice dispensing when the pad or lever is pressed
• Manages dispenser interlocks to prevent accidental dispensing
• Helps resolve intermittent or non-responsive dispenser operation
• Works with door electronics to coordinate dispenser commands

• One dispenser module

• Disconnect power to the refrigerator before servicing to avoid shock
• Access typically requires removing the freezer door inner cover; handle parts carefully to avoid damage
• Replace with the exact part number and route connectors carefully to ensure proper seating

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This wiring harness connects the appliance's control board or power source to internal components, restoring electrical continuity for reliable operation. Replace a damaged harness to stop intermittent power or non-responsive functions. What it does

• Routes power and signals between the control and components so controls, switches and motors operate correctly.
• Common symptom: controls or display are unresponsive or intermittent.
• Common symptom: specific functions (motors, lights, heating elements) do not receive power.
• Helps prevent shorts and arcing when routing and insulation are intact.

• One wiring harness as pictured and specified by the manufacturer.

• Disconnect power (unplug or shut off breaker) before accessing internal wiring.
• Verify connector orientation and seating; match wire colors and terminal positions during reassembly.
• Replace only the harnesses explicitly listed for your exact model to avoid mis-wiring.
• If you see burned terminals or damaged connectors, inspect adjacent components and replace as needed.

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

The Fill Tube Kit is an OEM part for Frigidaire refrigerators. It contains the tubes used to direct water from the water supply line into the refrigerator's water dispenser and ice maker. As these tubes can degrade over time due to mineral buildup or cracking, this kit provides a like-new replacement to ensure optimal water flow.

Causes of a bad fill tube include mineral or limescale deposits restricting water flow, cracks or leaks developing from general wear and tear, or accidental damage from installation or maintenance issues.

Symptoms of a bad fill tube are:

• Slow or inconsistent water flow from the dispenser
• Dripping or leaks from the fill tube connection points
• Ice maker not working or producing small or misshapen ice cubes
• Water backing up or overflowing in the refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement chute guides output through the appliance's passageway so it reaches the correct area. Replacing a cracked or warped chute restores smooth, consistent flow and helps prevent blockages, spills, and misdirected dispensing.

• Directs flow through the intended path between components
• Helps maintain alignment and sealing with adjoining parts
• Restores consistent dispensing/throughput when the original is damaged
• Common symptoms: visible cracks, obstructions, misalignment, or output missing the opening

• Disconnect power; turn off water supply if applicable
• Access the chute by removing the relevant cover or panel
• Transfer any reusable gasket/seal or mounting hardware from the old chute
• Seat and align the new chute fully; reassemble and test operation
