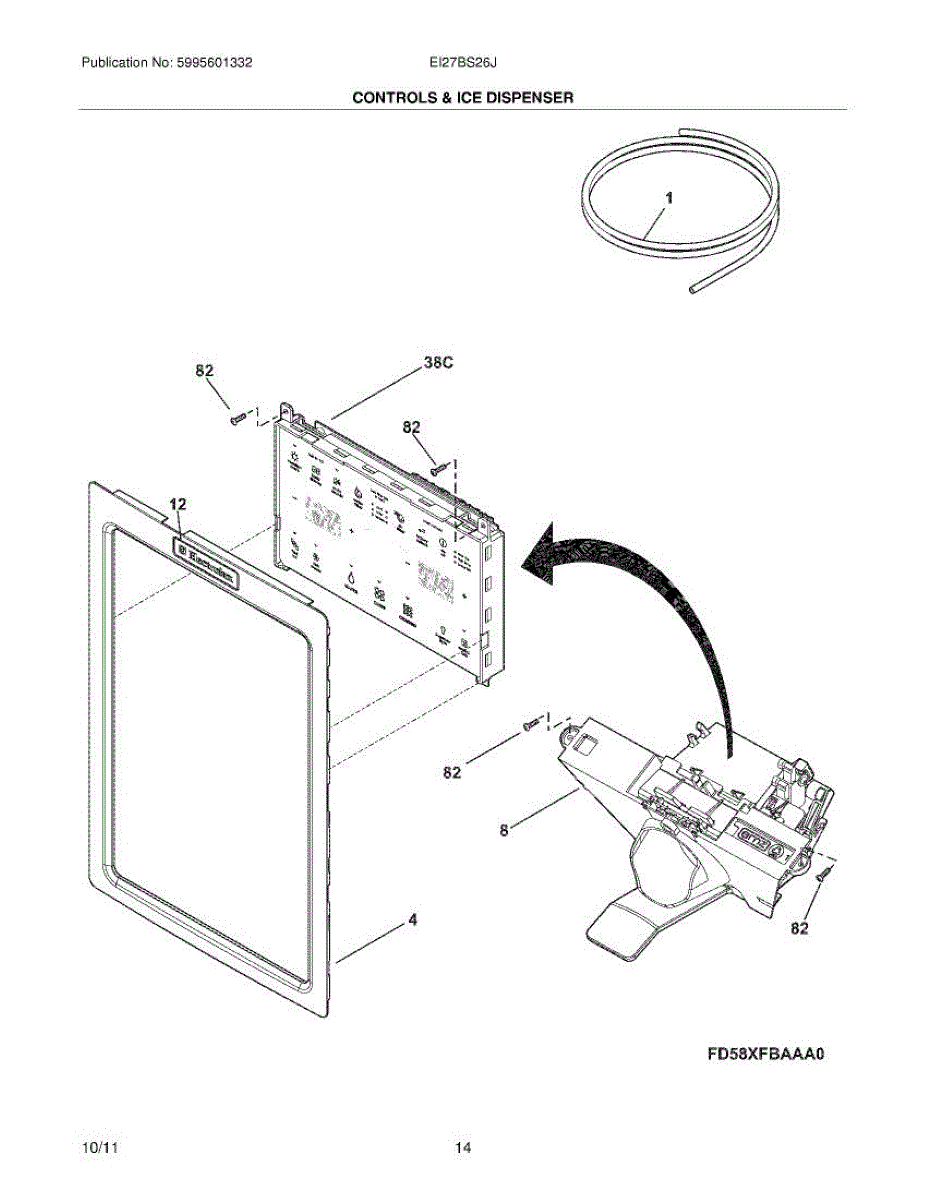

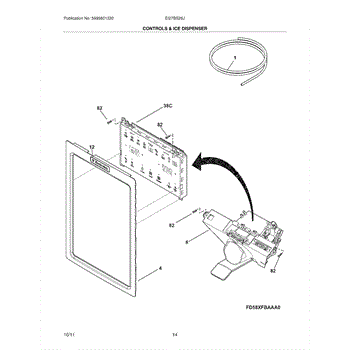

Parts for Electrolux EI27BS26JS5: 13 - Controls & Ice Dispenser Parts

This dispenser module is the door-mounted control assembly that operates the refrigerator's water and ice dispensing functions, restoring proper dispenser response and user control. What it does:

• Controls the dispenser switch and signals to start water or ice dispensing when the pad or lever is pressed
• Manages dispenser interlocks to prevent accidental dispensing
• Helps resolve intermittent or non-responsive dispenser operation
• Works with door electronics to coordinate dispenser commands

• One dispenser module

• Disconnect power to the refrigerator before servicing to avoid shock
• Access typically requires removing the freezer door inner cover; handle parts carefully to avoid damage
• Replace with the exact part number and route connectors carefully to ensure proper seating

This electronic control board manages your refrigerator's core functions. It processes sensor inputs and directs cooling, defrost, and fan operations so temperatures stay consistent and the unit responds to the controls.

• Coordinates compressor, evaporator, and condenser fan operation for proper cooling
• Controls the automatic defrost cycle based on sensor feedback
• Can cause no-cool, intermittent cooling, or unresponsive controls when it fails
• May help with erratic temperatures, frequent cycling, or clicking from the control area

• Disconnect power before servicing; this is a sensitive electronic component
• Handle by the edges and use anti-static precautions
• Note/photograph wire connections and transfer one connector at a time
• Mount the board securely; restore power and verify normal operation per the service instructions

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

This replacement chute guides output through the appliance's passageway so it reaches the correct area. Replacing a cracked or warped chute restores smooth, consistent flow and helps prevent blockages, spills, and misdirected dispensing.

• Directs flow through the intended path between components
• Helps maintain alignment and sealing with adjoining parts
• Restores consistent dispensing/throughput when the original is damaged
• Common symptoms: visible cracks, obstructions, misalignment, or output missing the opening

• Disconnect power; turn off water supply if applicable
• Access the chute by removing the relevant cover or panel
• Transfer any reusable gasket/seal or mounting hardware from the old chute
• Seat and align the new chute fully; reassemble and test operation
