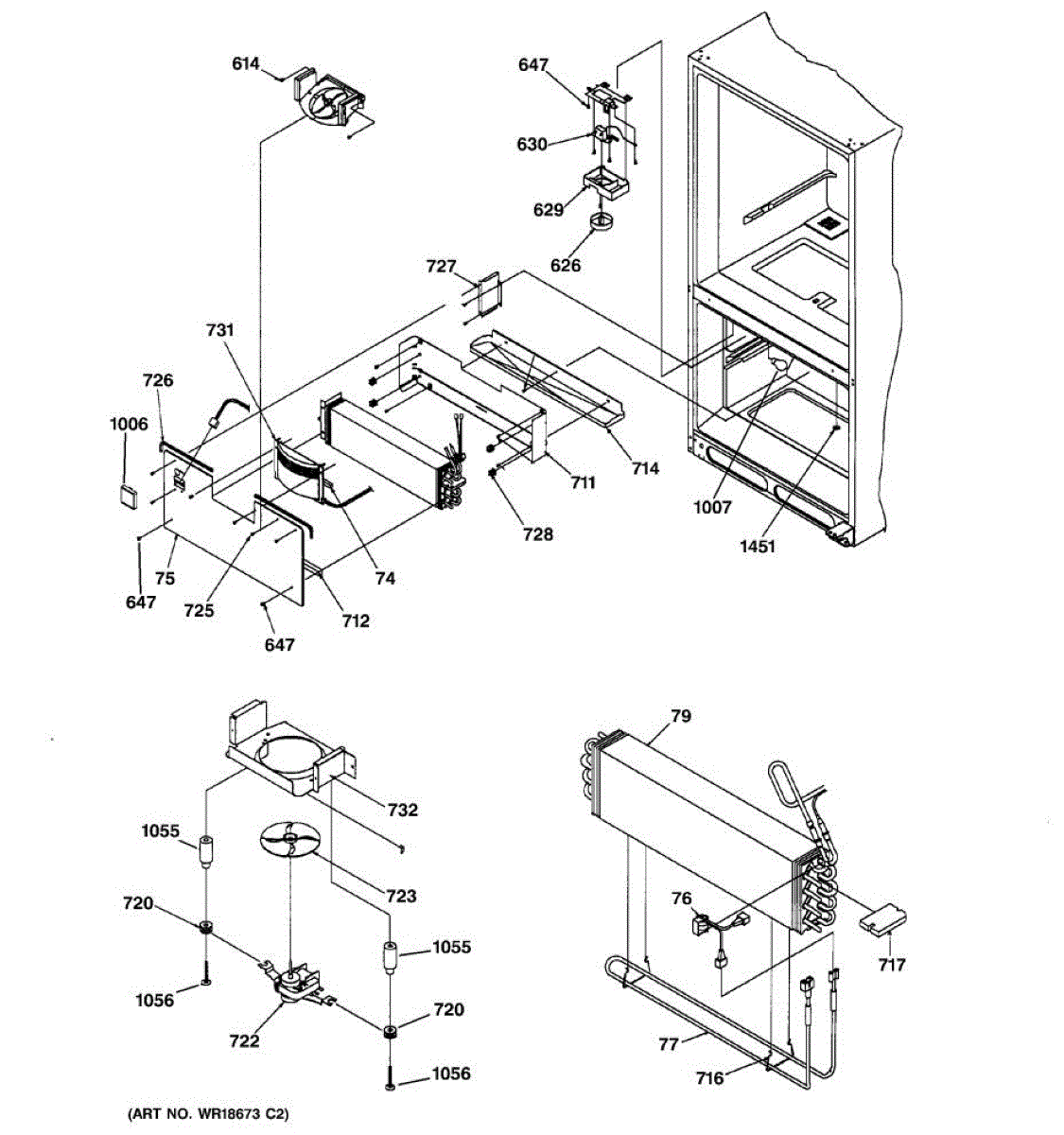

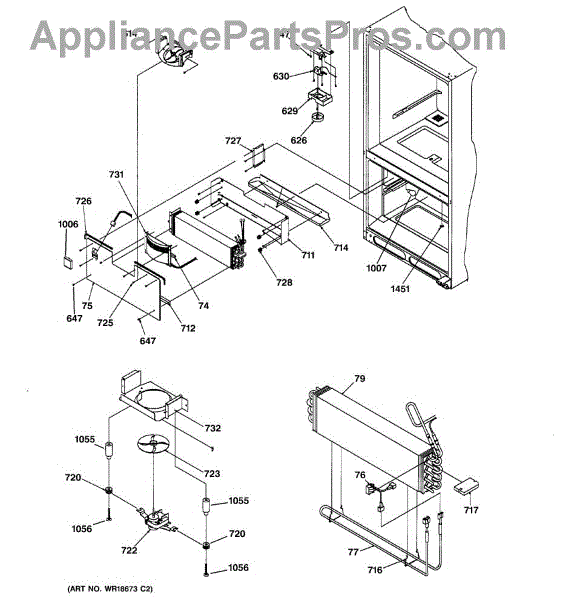

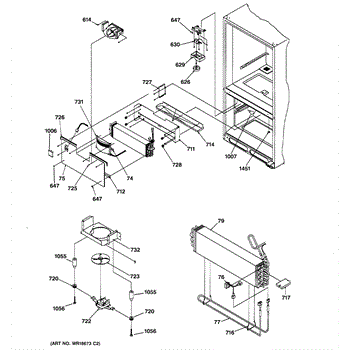

Parts for Ge PDS21SBMABS: 03 - Controls & Light Covers Parts

This drip tray collects and channels water from the refrigerator/ice maker area to prevent leaks and pooling under components. It restores proper water routing to reduce standing water and help keep the cabinet interior dry. What it does:

• Catches condensate and meltwater from the ice maker/evaporator area and directs it to the drain or evaporation area
• Prevents water from pooling under components, which can cause odors or damage
• Helps maintain proper drainage to reduce visible leaks or puddling near the freezer/refrigerator bottom
• Fits into the designated tray location and secures water flow where the original tray was installed

• One drip tray

• Designed to replace the original tray in the same location; confirm fit before installation
• Remove power to the appliance and empty surrounding compartments before servicing
• Clean the area and check adjoining seals/drains for blockages when replacing the tray
• If mounting clips or fasteners are damaged or missing, replace them to ensure a secure fit

This evaporator blade helps move cold air across the evaporator coil so your refrigerator cools evenly and resists frost buildup. It's the replacement blade used with the evaporator fan assembly. What it does:

• Circulates air across the evaporator coil for consistent cooling
• Helps reduce frost accumulation on the coil by improving airflow
• Restores airflow if the original blade is cracked, broken, or missing
• Resolves reduced cooling, uneven temperatures, or frost buildup in the freezer

• Disconnect power to the appliance before starting any repair.
• Remove interior freezer panels and access the evaporator/fan housing per OEM service instructions.
• Handle the blade and evaporator fins carefully to avoid damage; ensure the blade is properly seated on the fan shaft.

This cover seals the refrigerator fill tube where the water/ice system connects, helping direct water flow and reduce leaks. Replaces a cracked, missing, or damaged fill tube cover to restore proper water delivery to the ice maker/dispenser. What it does:

• Covers and seals the water fill tube to prevent leaks and misdirected water flow
• Helps maintain correct water delivery to the ice maker and ice bin
• Prevents debris from entering the fill tube that can cause clogging or poor fills
• Stops intermittent dripping or pooling near the ice maker area when damaged

• One cover fill tube (fill tube plug)

• Disconnect power to the appliance and shut off the water supply before starting
• Typically installs by aligning and pressing/snapping into place; firm but gentle pressure may be needed
• Inspect surrounding gaskets and tubing for damage and replace if necessary to ensure a watertight fit
• After installation, restore power and water, then check for leaks during a test fill
