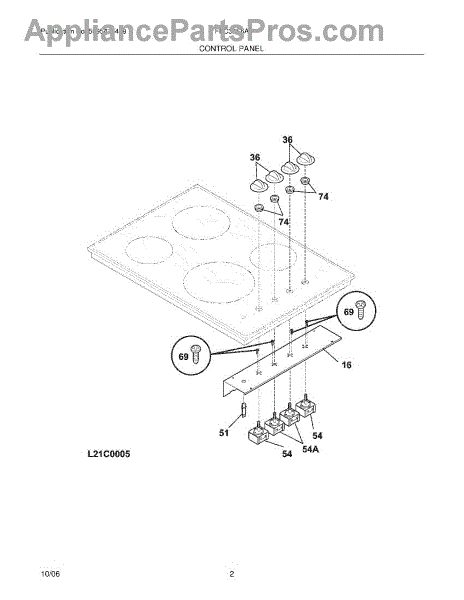

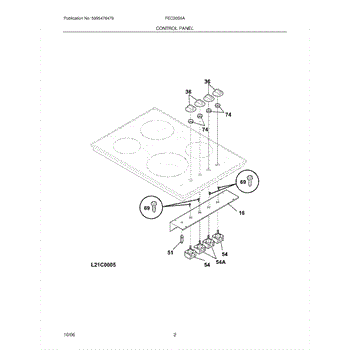

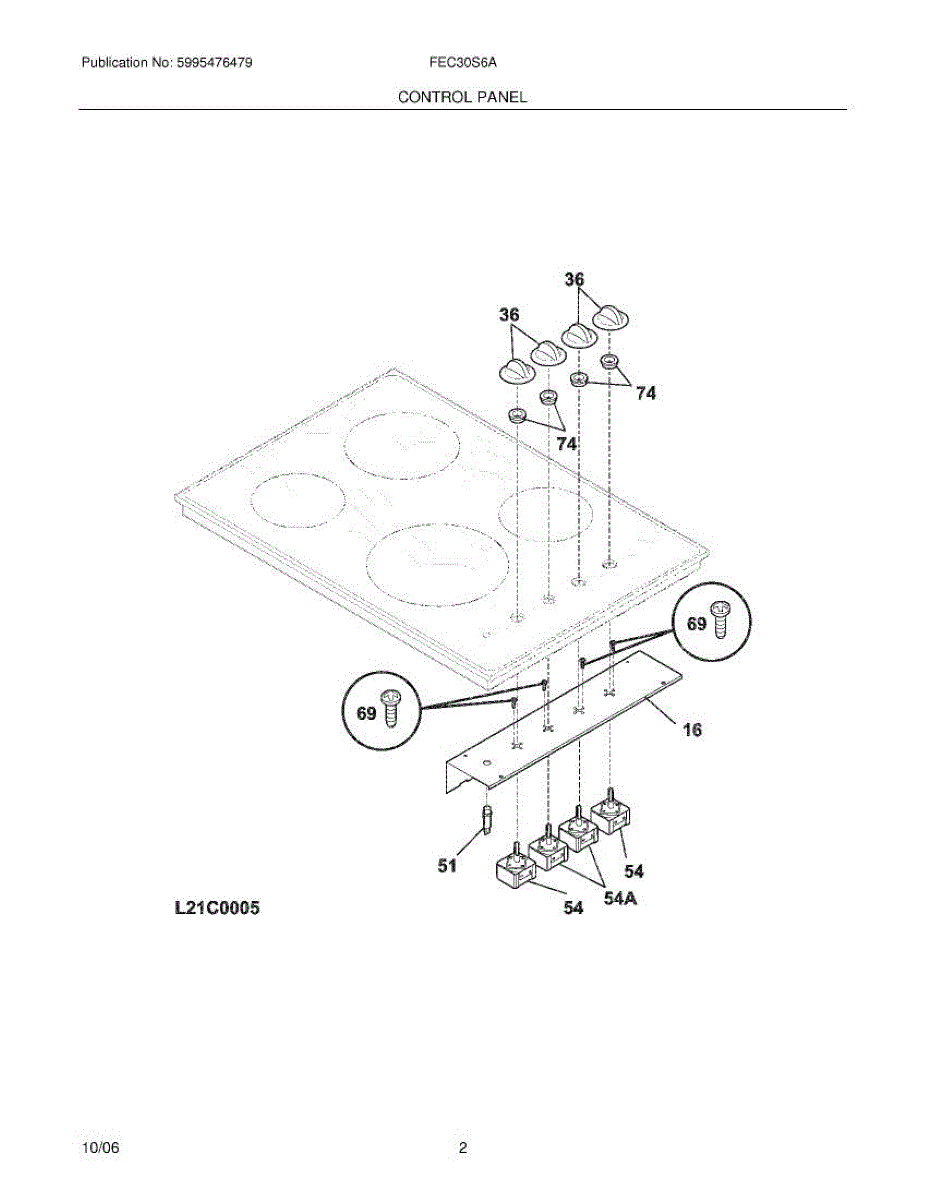

Parts for Frigidaire FEC30S6ASF: 03 - Controls Parts

The Control Knob is an OEM replacement part for Frigidaire ranges and cooktops. It measures about 2-1/2 inches in diameter. It allows users to control the heat settings for burners or the oven, ensuring precise temperature adjustments during cooking. The knob is designed to fit securely onto the control shaft, providing a user-friendly interface for operating the appliance.

Over time, control knobs can wear out or become damaged due to repeated use, accidental impacts, or exposure to high temperatures. A broken or malfunctioning knob can make it difficult to adjust or control the appliance effectively.

Symptoms of a bad control knob include:

• Difficulty turning the knob or it spinning freely without engaging
• Cracks, breaks, or visible damage to the knob
• The appliance not responding to adjustments made with the knob
• The knob not staying securely attached to the control shaft

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Indicator light replaces the control-panel lamp that signals power or active functions, restoring visible status feedback for safer, more confident operation. Use this when the original lamp is dim, cracked, or fails to illuminate. What it does:

• Provides visible indication of power, cycle status, or selected functions on the appliance control panel.
• Restores clear status feedback when the original lamp is burned out or flickering.
• Helps troubleshoot whether a control or circuit is receiving power by showing when the indicator should be lit.
• Improves usability so settings and operating states are easy to confirm at a glance.

• Disconnect power to the appliance (unplug or turn off the breaker) before beginning work.
• Access may require removing the control panel or console.
• Handle the lamp carefully and avoid touching bulb surfaces; use gloves to prevent oil transfer.
• After installation, restore power and verify the indicator lights as expected; if it still does not light, further electrical diagnosis may be needed.

NOTE: Must order (2) new mounting screws, part# 5303288565 (5303323134) when ordering this switch due to a change.

The Surface Burner Switch is an OEM Replacement Part designed to control the large surface burner on your Frigidaire stove. This switch is suitable for an 8" element with a wattage range of 2136 - 2640 watts. With a capacity of 8.9-11.0 amps and 240 volts, it allows you to adjust the burner temperature by regulating the electrical current to the burner element, ensuring precise cooking temperatures.

Causes of a bad surface burner switch can include electrical faults, wear and tear from frequent use, or internal component failure. When the switch fails, it can result in the inability to control the burner temperature accurately, which may affect cooking performance.

Symptoms of a bad surface burner switch include:

• The burner not heating up or heating inconsistently
• Inability to adjust the burner temperature
• The burner remaining on high heat regardless of the setting
• Unusual sparking or electrical noises from the switch area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Note: For the new mounting screws, order part number 5303288565. Two are needed to properly mount the new switch.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Specs: 10-32 X 0.375

Specs: 8 - 18 x 0.500
