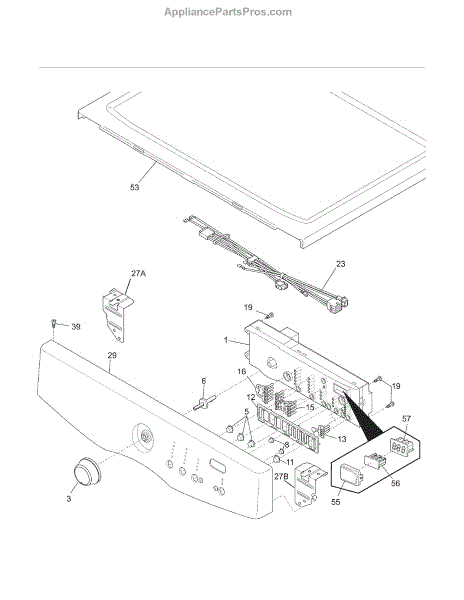

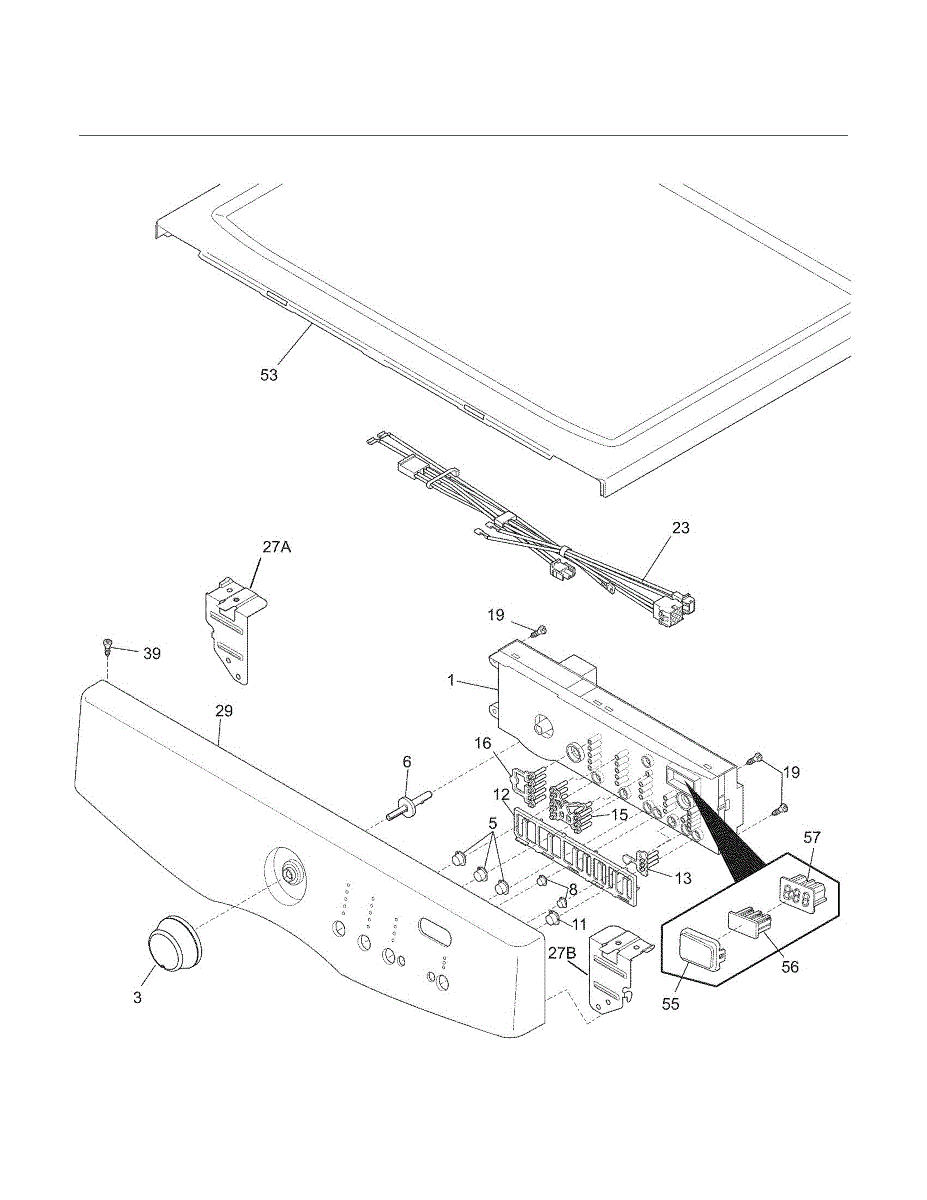

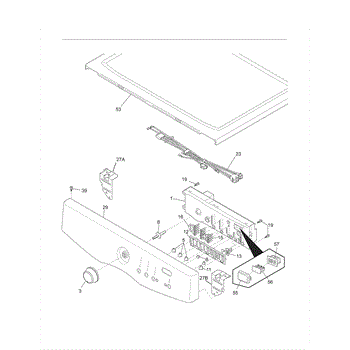

Parts for Kenmore 417.81122310 (41781122310, 417 81122310): Controls Parts

The Main Control Board is an OEM part for Frigidaire dryers. It is the "brain" that regulates all dryer functions and features like sensor drying and temperature control.

Situated inside the dryer where it receives constant vibrations from spin cycles, the control board faces significant stresses over time. Causes of failure typically relate to standard component degradation.

Symptoms of a problematic main control board include:

• Unresponsive or non-functional controls
• Inability to select cycles or change temperature
• Dryer fails to start, heat or tumble clothes

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This push button is the user-facing control button that replaces a worn, broken or missing oven/stove/range or appliance selector button, restoring tactile control and reliable user input. It fits into the front control panel and provides the mechanical interface for selections. What it does:

• Replaces a cracked, stuck or missing control button so selections register correctly
• Restores tactile feedback and proper engagement with the underlying switch or mechanism
• Helps stop intermittent control issues caused by damaged or loose buttons
• Useful when the button housing is chipped or cosmetically damaged

• Disconnect power to the appliance before attempting service to avoid shock or unintended operation
• Typically snaps into the front control panel; remove the old button by pulling straight out and press the new button into place
• Inspect the underlying switch for damage while replacing the button and replace that switch if necessary

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This damper is the refrigerator air-control flap that regulates airflow between compartments to help maintain consistent temperatures and proper cooling. It replaces a worn or stuck damper to restore normal airflow and temperature balance. What it does:

• Opens and closes to direct cold air where needed between freezer and fresh-food sections
• Helps maintain even temperatures and prevents one compartment from getting too warm
• Common symptom: uneven cooling or warm fresh-food section despite running compressor
• Common symptom: damper stuck or not moving, causing poor temperature control

• Disconnect power to the appliance before starting any repair
• Remove interior panels to access the damper; use basic hand tools
• Handle the damper and any wiring harness carefully to avoid damage
• After installation, verify damper operation and allow time for temperatures to stabilize
