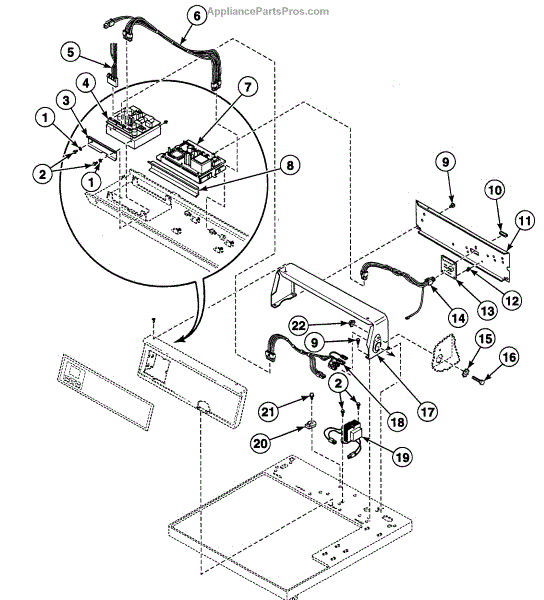

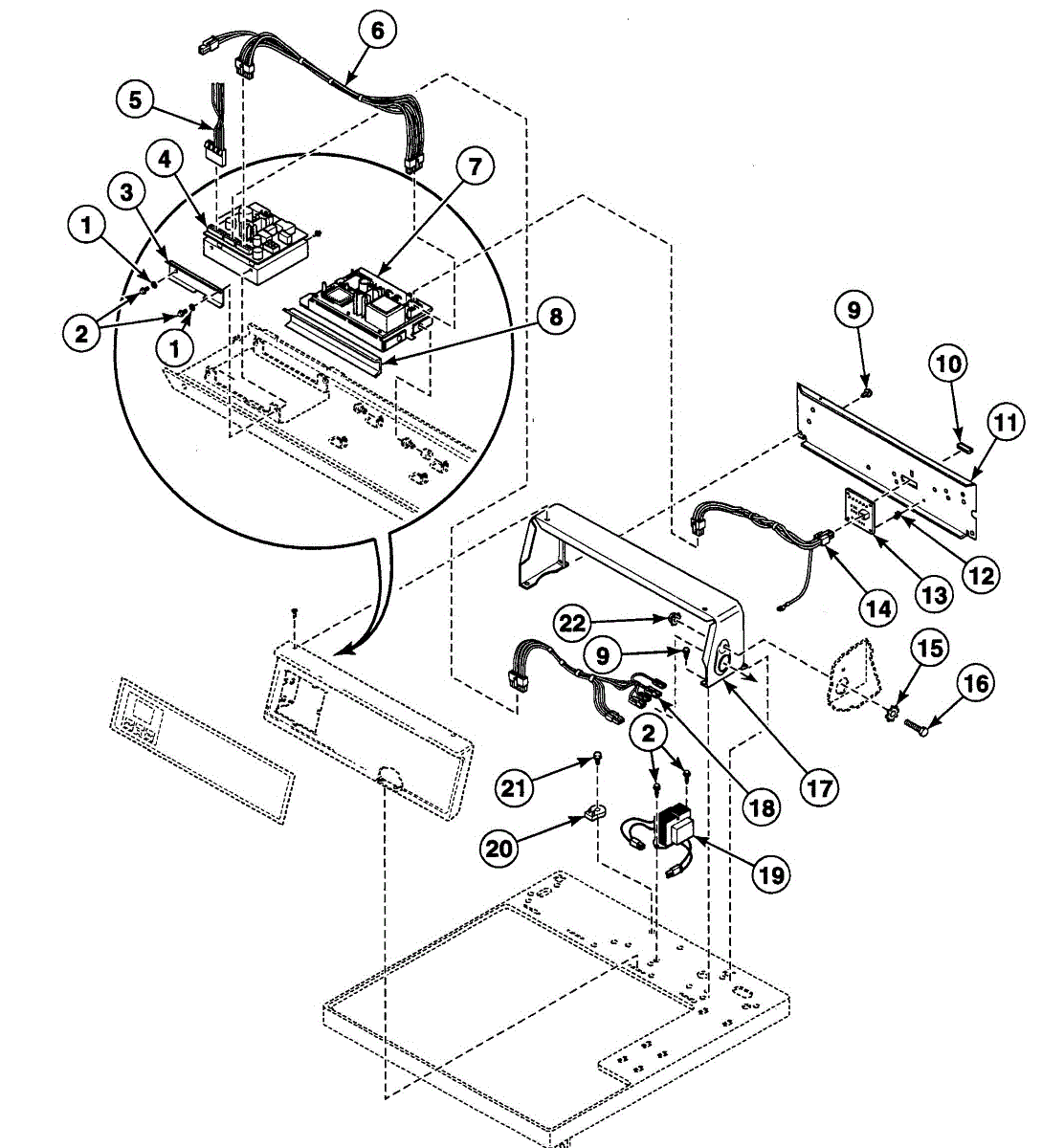

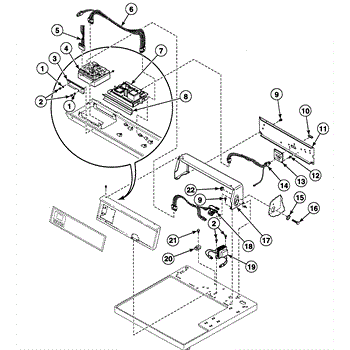

Parts for Speed Queen SDEH07LJ: Controls Parts

This communication connector links control components to enable signal transfer between the machine's control modules. It restores reliable electrical connection so controls and displays can exchange data as intended. What it does:

• Provides a secure electrical connection between control boards or modules
• Transfers communication signals needed for control, status, and error reporting
• Resolves symptoms like unresponsive controls, blank displays, or intermittent communication faults
• Designed to latch into mating component for stable contact under normal use

• Disconnect power to the appliance before servicing to avoid shock or damage
• Verify connector orientation and mating alignment before seating to prevent bent pins
• Ensure latch clicks or is secured; lightly tug wiring to confirm retention
• If any wires or pins appear damaged or corroded, replace or repair wiring harness before reinstalling

This standoff secures and electrically isolates a washing machine control board, keeping the board properly positioned for reliable operation and preventing shorts or contact with the chassis. Fits the OEM mounting location for a direct replacement. What it does:

• Physically supports the PC/control board to keep it stable during operation
• Provides electrical insulation between the board and metal cabinet to prevent shorts
• Helps stop board movement that can cause intermittent controls or noise
• Restores proper board alignment after damage or missing hardware

• Disconnect power and water before accessing control electronics
• Handle the PC board by its edges and avoid touching components
• Install standoff in the original mounting hole and secure the board without over-tightening
• Replace any stripped or broken mounting hardware; inspect surrounding insulation
