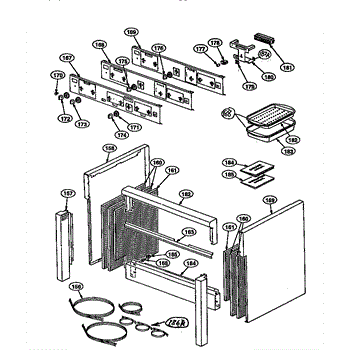

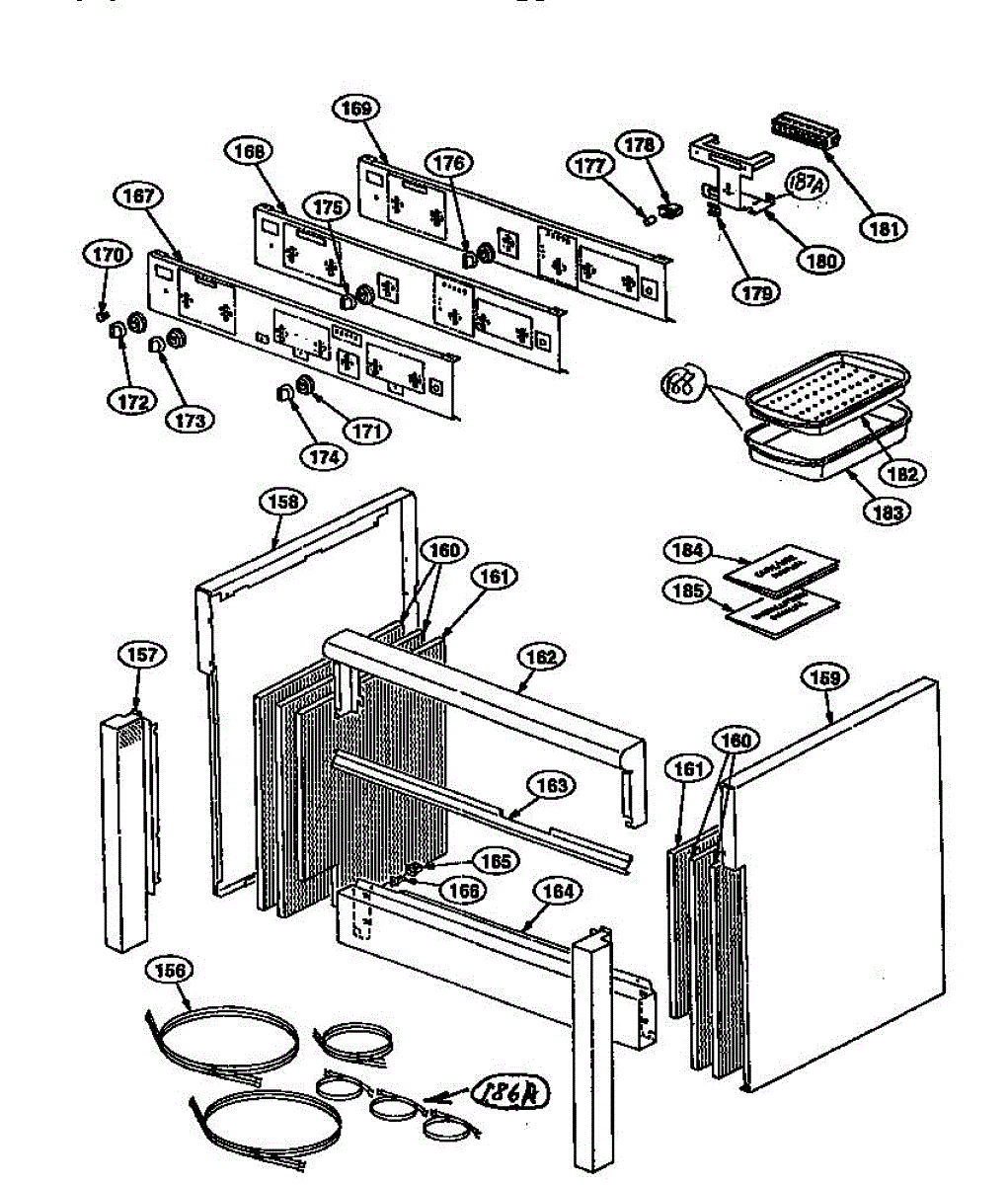

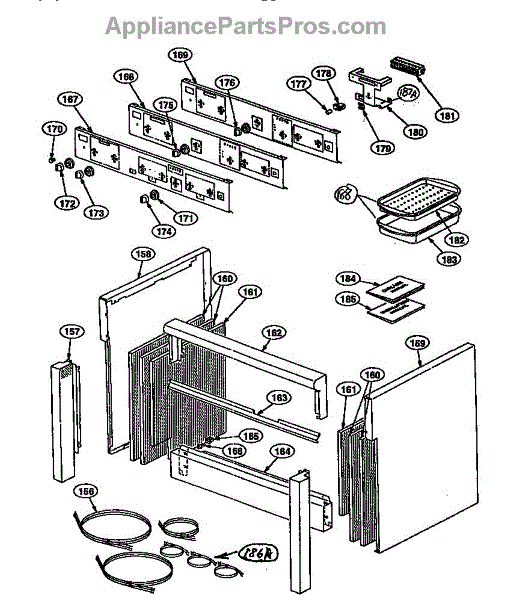

Parts for Thermador PRSE364GD: Controls / Side Panels Parts

Wire harness assembly that connects electrical components in your range. Replace if wires are frayed, damaged, or connector pins are corroded or broken.

This left side trim piece replaces a damaged or missing side trim to restore the cabinet edge and finished appearance of the appliance. It helps maintain a flush fit and clean look along the refrigerator side. What it does:

• Covers and protects the exposed edge of the cabinet for a finished appearance
• Restores proper trim alignment to reduce gaps and rubbing against adjacent surfaces
• Replaces cracked, dented or missing trim that detracts from the appliance finish
• Helps maintain a uniform seal and appearance after service or collision repair

• Always unplug the appliance or turn off power before starting cosmetic or trim repairs
• Installation typically involves removing any adjacent molding or fasteners and snapping or fastening the trim into place; keep original fasteners if reusing
• Handle edges carefully to avoid cuts or damaging adjacent panels

This right side trim is a molded exterior trim piece that restores the appliance's finished look and covers the cabinet edge. It keeps the side of the unit looking clean and replaces damaged or missing trim for a factory appearance. What it does:

• Replaces a cracked, chipped, or missing right-side exterior trim piece
• Covers and protects the cabinet edge from scrapes and dirt
• Restores the original appearance for a seamless door/cabinet fit
• Helps prevent gaps that can collect debris around the appliance edge

• Remove power and empty surrounding area for safe access before starting
• Typical install uses existing clips or screws—retain original fasteners when possible
• Handle trim carefully to avoid scratching the finish during installation
• If trim does not align, inspect mounting clips for damage

Control panel trim for 36-inch electric ranges. Replaces damaged, cracked, or discolored trim pieces around the range control panel interface.

This is a structural frame that surrounds and supports the oven door, providing rigidity and a finished appearance. It holds the door glass and inner panel components securely in place. Replace this frame if it is bent, cracked, or damaged, which can cause the door to fit poorly, allow heat to escape, or create an uneven seal against the oven opening.

This pilot light lens covers and diffuses the control-panel indicator lamp. Replace a cracked, missing, or discolored lens to restore clear visibility of the light, protect the lamp opening, and keep the panel looking finished.

• Covers and diffuses the indicator lamp on the control panel
• Helps protect the lamp opening from debris and accidental contact
• Restores a clean, finished appearance to the panel
• Replace if the lens is cracked, missing, loose, or discolored
• Can help when the indicator is hard to see even when lit

• Disconnect power to the appliance before servicing and allow surfaces to cool
• Access the indicator opening from the front or rear (varies by design) and remove any retainer or clips holding the old lens
• Note orientation and transfer any existing retainer or gasket if present
• Seat the new lens fully, reassemble, and test the indicator light

This part has been discontinued and is no longer available

This Tinnerman C nut is a spring-steel speed clip that secures sheet-metal panels and components using a mating screw. It provides a captive thread where a tapped hole or weld nut isn't practical, helping restore proper fit and stop rattles. What it does:

• Provides a captive, reusable threaded anchor for self-tapping or machine screws
• Secures trim, access panels and internal brackets to sheet-metal edges or panels
• Stops panel movement and vibration-related noise when the original clip is damaged or missing
• Works where a conventional nut or stud cannot be used due to limited access

• Disconnect power and unplug the appliance before accessing panels or fasteners
• Position the clip over the panel edge or hole, then press or slide until it snaps into place
• Align the mating screw and thread carefully to avoid cross-threading the clip
• Use hand tools or pliers for placement; do not over-torque the screw once installed

This is a #10 x 1/2 inch pan-head Phillips sheet-metal screw used to fasten appliance panels and internal components. It replaces missing or worn screws to restore proper fit and reduce rattles or loose parts. What it does:

• Secures trim, access panels, brackets and other sheet-metal parts
• Keeps components aligned and prevents vibration-related noise
• Restores proper fastening when original screws are stripped, lost or corroded
• Works where a #10 x 1/2" pan-head Phillips sheet-metal screw is specified

• One #10 x 1/2" pan-head Phillips sheet-metal screw

• Disconnect power and water before servicing the appliance
• Use the correctly sized Phillips screwdriver to avoid stripping the head
• Start threads straight and tighten until snug—do not overtighten to avoid stripping or deforming sheet metal
• Keep small parts away from children and pets

Secures the glass cooktop to the range frame. Replace if clip is cracked, broken, or missing to properly hold the cooktop surface in place during use.

This is a 1/4-20 hex keps nut — a hex nut with an attached captive washer that helps secure panels, brackets, and fasteners. It provides a simple, vibration-resistant fastening solution for appliance assemblies. What it does

• Fastens components to machine frames, panels, and brackets using a 1/4-20 bolt or stud.
• Captive washer helps resist loosening from vibration and movement.
• Commonly used where a compact, pre-assembled nut-and-washer is needed for reliable retention.
• Replace when threads are stripped, washer is damaged, or parts wobble or rattle.

• One hex keps nut (1/4-20).

• Disconnect power and follow appliance safety procedures before working on hardware.
• Use the correct 1/4" socket or wrench to install; hold the mating bolt head as needed to tighten.
• Tighten securely but avoid over-tightening to prevent thread damage or distortion.
• Replace with the same nut type and size to maintain fit and vibration resistance.

This part has been discontinued by the manufacturer and is no longer available.

Mounting screw for securing range components and panels. Replace worn, stripped, or missing screws during repairs or maintenance to ensure proper assembly.

Package of 60 pyramid shaped briquettes

Foam adhesive tape seals gaps between range panels to reduce vibration and eliminate rattling. Replace when worn or loose. Verify fit with your model number.

This is an installation hardware set that includes the necessary mounting components for setting up a range or cooktop. It provides the brackets, fasteners, or clips needed for a secure and proper fit during initial installation or replacement. Use this set if original installation hardware is missing, damaged, or lost during a kitchen remodel.

90-degree elbow orifice holder for gas ranges and cooktops. Replace this gas line connector if cracked, broken, or causing improper gas flow alignment.
