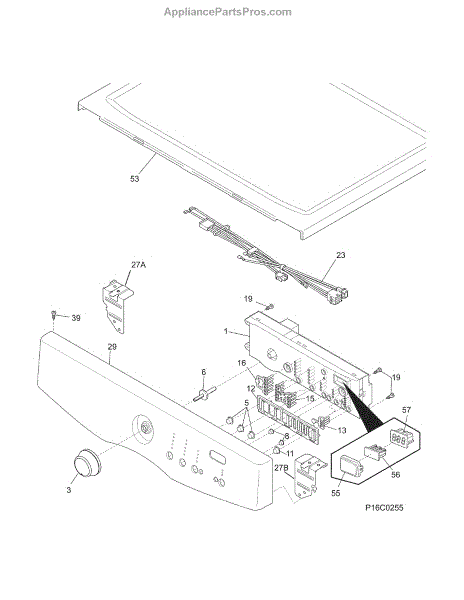

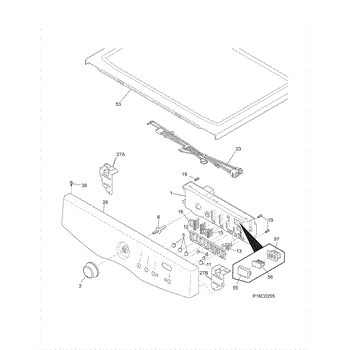

Parts for Crosley CDE4700LB0: Controls / Top Panel Parts

This electronic control board manages the appliance's cycles, timing, and key functions. Replacing a failed board can restore reliable operation when the machine won't start, won't advance, or behaves erratically.

• Interprets inputs from sensors/switches and the user interface
• Controls motors, valves, and heaters based on the selected cycle
• Manages cycle timing, speeds, and indicator lights
• Typical failure symptoms: no start, unresponsive controls, stops mid-cycle, won't advance, random error codes or power cycling

• Disconnect power before servicing to prevent electrical shock
• Use ESD precautions; handle the board by its edges
• Transfer any mounting brackets or jumpers from the old board to the new one
• Move wiring connectors one at a time to matching positions and verify full seating

This push button is the user-facing control button that replaces a worn, broken or missing oven/stove/range or appliance selector button, restoring tactile control and reliable user input. It fits into the front control panel and provides the mechanical interface for selections. What it does:

• Replaces a cracked, stuck or missing control button so selections register correctly
• Restores tactile feedback and proper engagement with the underlying switch or mechanism
• Helps stop intermittent control issues caused by damaged or loose buttons
• Useful when the button housing is chipped or cosmetically damaged

• Disconnect power to the appliance before attempting service to avoid shock or unintended operation
• Typically snaps into the front control panel; remove the old button by pulling straight out and press the new button into place
• Inspect the underlying switch for damage while replacing the button and replace that switch if necessary

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This damper is the refrigerator air-control flap that regulates airflow between compartments to help maintain consistent temperatures and proper cooling. It replaces a worn or stuck damper to restore normal airflow and temperature balance. What it does:

• Opens and closes to direct cold air where needed between freezer and fresh-food sections
• Helps maintain even temperatures and prevents one compartment from getting too warm
• Common symptom: uneven cooling or warm fresh-food section despite running compressor
• Common symptom: damper stuck or not moving, causing poor temperature control

• Disconnect power to the appliance before starting any repair
• Remove interior panels to access the damper; use basic hand tools
• Handle the damper and any wiring harness carefully to avoid damage
• After installation, verify damper operation and allow time for temperatures to stabilize

This terminal block provides the mounting point and secure electrical connection for the appliance power leads. Replacing a damaged or corroded terminal block restores a solid power connection and reduces arcing or intermittent power. What it does:

• Provides a secure connection between the incoming power cord and the appliance wiring
• Holds and isolates power terminals to prevent shorting and arcing
• Commonly fails when terminals are burned, corroded, loose, or when wires heat at the connection
• Symptoms of a failing terminal include loss of power, intermittent power, visible burn marks or arcing at the connection, and melted or discolored insulation

• One terminal block

• Always disconnect power at the breaker or unplug the appliance before servicing
• Tighten mounting screws and terminal screws securely; inspect and replace any damaged wire insulation
