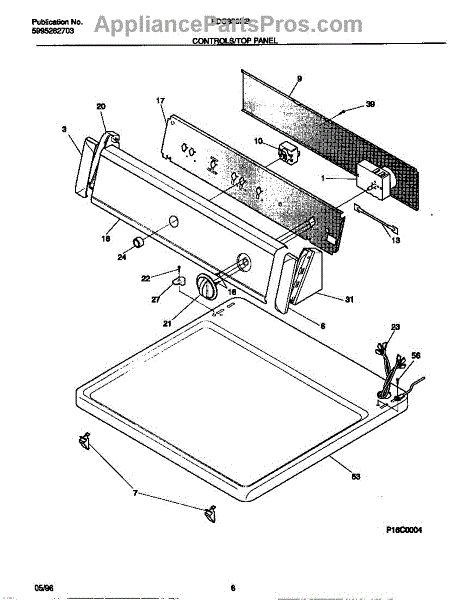

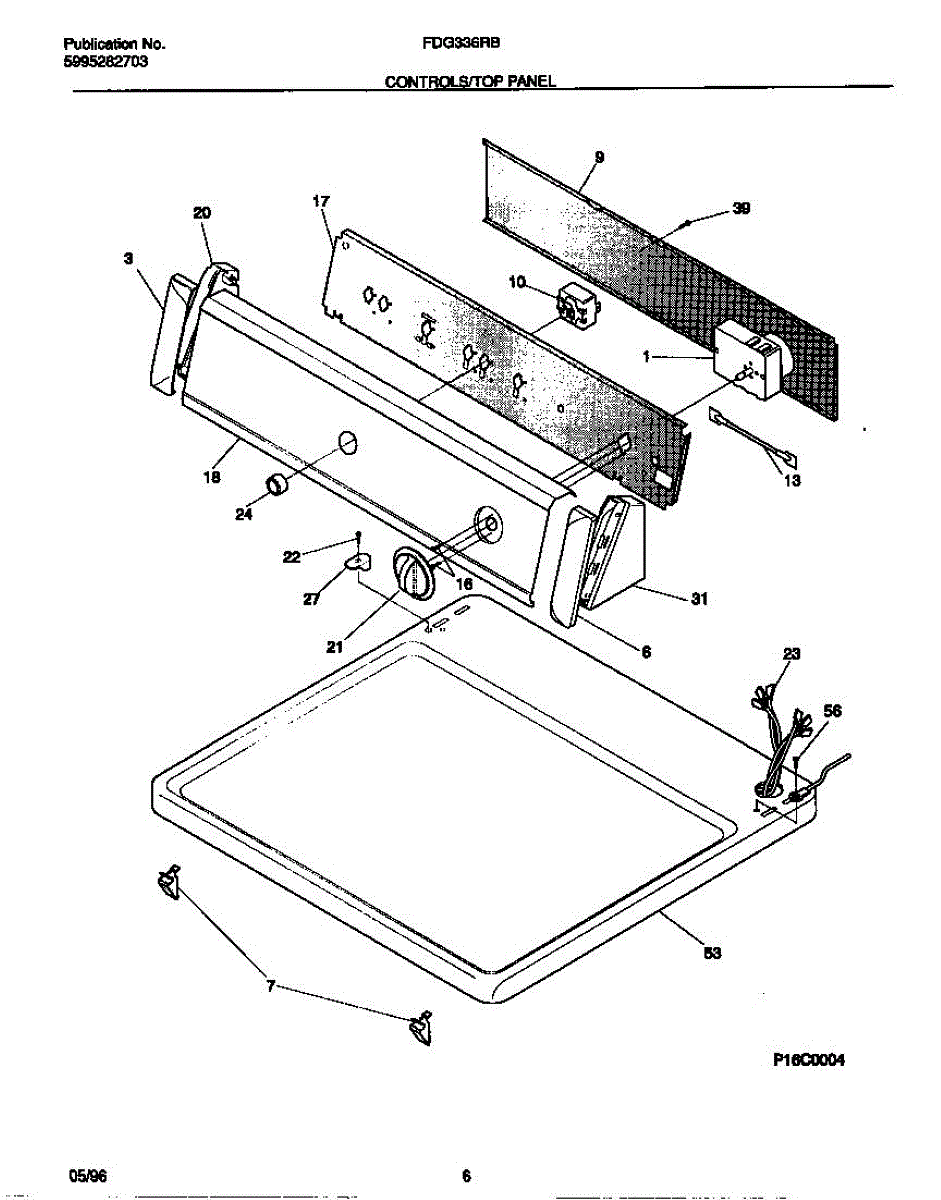

Parts for Frigidaire FDG336RBS2: 04 - Controls / Top Panel Parts

A decorative cover piece that caps the left end of the washer's control panel or cabinet. Replace if the cover is cracked, missing, or doesn't fit properly, affecting the appliance's appearance.

This is a small metal or plastic retainer clip that secures the main top panel of the dryer to the cabinet frame. It holds the top panel firmly in place so it doesn't shift or rattle during operation. If your dryer's top panel feels loose, pops up during use, or won't stay properly seated, this clip may be broken or missing.

Dryer not heating or overheating? This resistor regulates temperature control in your dryer's heating system. Simple DIY replacement part.

Secures panels, brackets, and trim on appliances. Replace when missing, stripped, or damaged to restore a tight, rattle-free fit and proper alignment.

White control panel touch pad for your dryer. Replaces cracked, worn, or discolored panels. Mounts on the console to restore appearance and functionality.

This replacement screw secures appliance panels and components. With a #10-16 thread and 0.75-inch length, it replaces stripped, rusted, or missing hardware to restore a tight, rattle-free fit and reduce vibration and noise.

• Fastens cabinet panels, brackets, or internal parts in washers and dryers
• Direct replacement for worn or lost screws to keep assemblies aligned and secure
• Helps address loose/vibrating panels, rattling noises, or visible gaps/misalignment
• Spec: #10-16 thread; 0.75-inch length

• Disconnect power; for washers, also shut off water supply
• Match the original screw location; start threads by hand to prevent cross-threading
• Use a driver that fits the screw head properly; tighten snugly without overtightening

Color: white. It measures about 3 inches in diameter.

Pan head mounting screw for dryers. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

This is a replacement pan-head, locking screw used to secure the top bracket on compatible Frigidaire appliances. It provides a reliable fastener that helps keep the top bracket and panels held firmly in place. What it does:

• Secures the top bracket to the cabinet or chassis to prevent bracket movement or rattling
• Restores proper alignment of top panels and trim that may be loose or sagging
• Uses a locking feature to resist loosening from vibration
• Pan head design provides a low-profile, finished appearance once installed

• One screw as shown

• Use the matching #8-32 driver or bit and tighten until snug; avoid over-torquing to prevent stripping
• Turn off power and remove panels as needed before accessing the bracket area
• Replace only with the same size and thread type to ensure secure fit
• Replace all related screws for even support

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.
