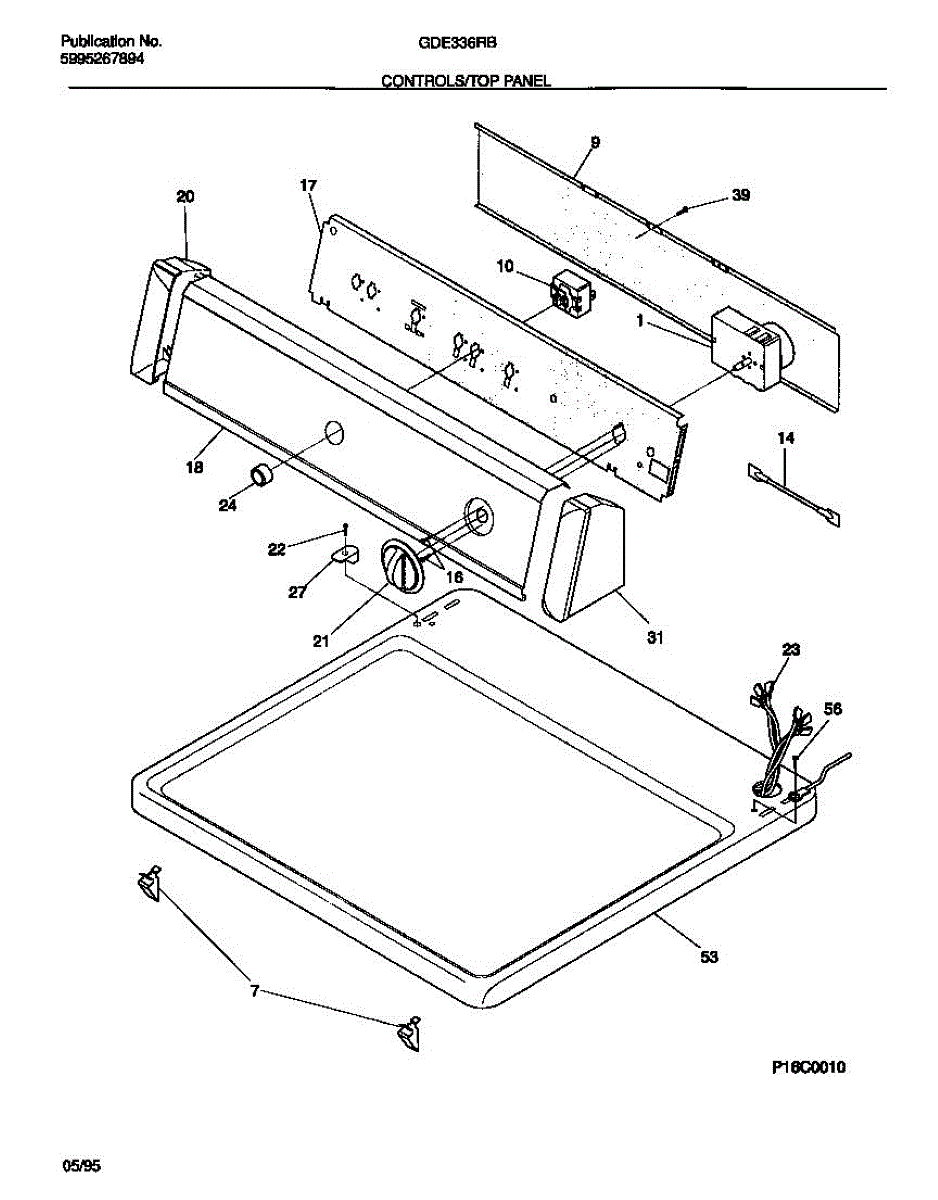

Parts for Frigidaire GDE336RBS0: 04 - Controls / Top Panel Parts

This electromechanical timer controls the sequencing and duration of appliance cycles, restoring timed operation for wash/dry/cook functions depending on application. Replaces a worn or non-advancing timer to help return your appliance to normal use. What it does:

• Rotates through cycle positions to start and stop functions at set intervals
• Sends power to motors, heaters, or pumps according to the selected cycle
• Common symptom: appliance fails to advance through cycles or stops mid-cycle
• Common symptom: timer knob feels loose, won't click, or won't engage selected settings

• Disconnect power before servicing to avoid shock hazard
• Follow your model-specific service manual for disassembly and timer alignment
• Verify terminal connections and wiring harness fit before applying power

This clip is a small plastic retainer designed to secure trim and lightweight panels so they stay in place and reduce rattling or gaps. It restores proper fit and helps keep parts aligned for a finished look. What it does:

• Secures trim pieces, panels, or grill components to the appliance frame
• Prevents loose or rattling parts that can cause noise or misalignment
• Holds components in correct position so doors and panels close properly
• Replaces worn or broken clips that no longer grip reliably

• Remove power or disconnect the appliance before servicing when applicable
• Clip installs by snapping into pre-existing mounting hole or slot; no special tools usually required
• Inspect mating surfaces and replace any additional damaged fasteners for best fit

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

Color: White

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This is a replacement pan-head, locking screw used to secure the top bracket on compatible Frigidaire appliances. It provides a reliable fastener that helps keep the top bracket and panels held firmly in place. What it does:

• Secures the top bracket to the cabinet or chassis to prevent bracket movement or rattling
• Restores proper alignment of top panels and trim that may be loose or sagging
• Uses a locking feature to resist loosening from vibration
• Pan head design provides a low-profile, finished appearance once installed

• One screw as shown

• Use the matching #8-32 driver or bit and tighten until snug; avoid over-torquing to prevent stripping
• Turn off power and remove panels as needed before accessing the bracket area
• Replace only with the same size and thread type to ensure secure fit
• Replace all related screws for even support
