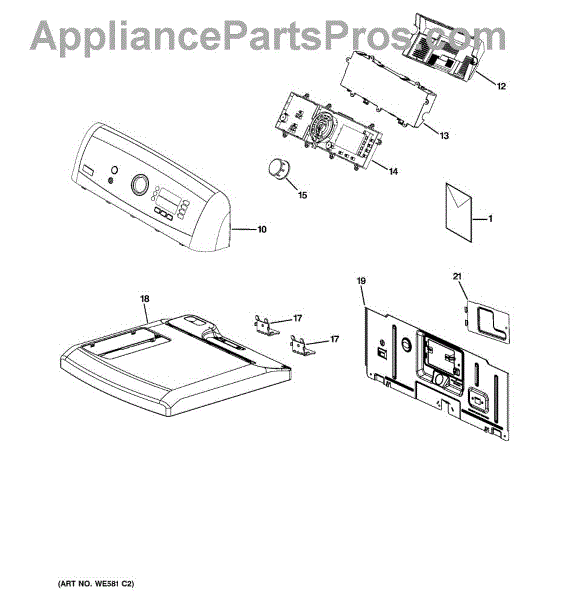

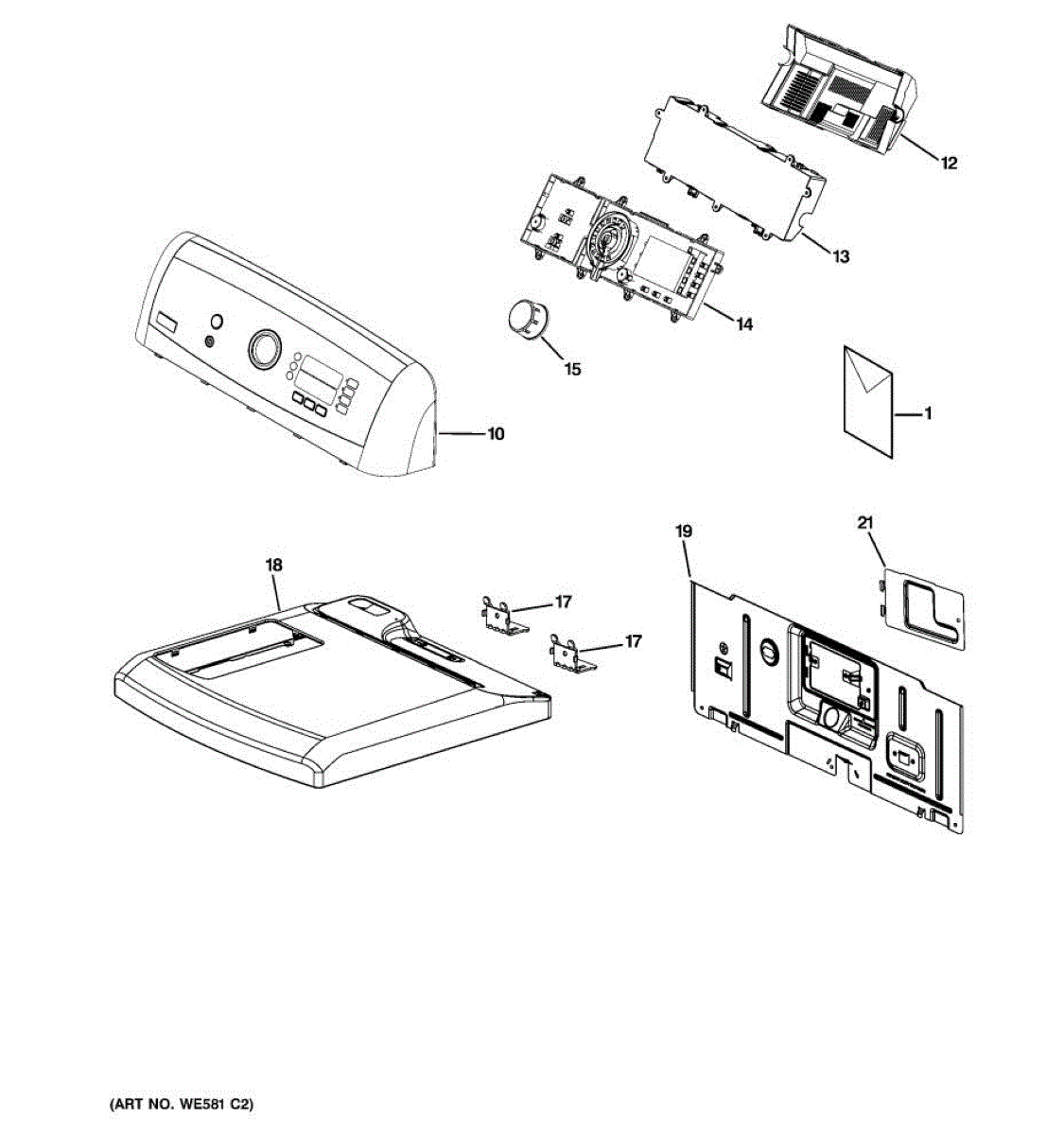

Parts for Ge PTDN805EM0MS: 01 - Controls & Top Panel Parts

This display logic board controls the appliance's front-panel display and user interface so you can see settings and cycle information and send commands to the main control. Replaces a failed or unresponsive display/control board to restore normal display and panel operation. What it does:

• Processes user inputs from the control panel and sends commands to the main control
• Powers and drives the front-panel display so temperature, modes, and status are visible
• Can resolve symptoms like a blank or flickering display, unresponsive touchpad/buttons, or incorrect panel readouts
• Interacts with other control modules to enable features like cycles, timers, and diagnostics

• One display logic board

• Disconnect power at the breaker or unplug the appliance before starting
• Take photos or label connectors to ensure correct wire/receptacle reinstallation
• Handle the board by the edges and avoid static discharge; use an anti-static wrist strap if available
• After installation, restore power and test panel functions before reassembling trim

This upper support plate secures and stabilizes the appliance's upper assembly to restore panel alignment and reduce vibration. A direct-fit replacement used where the upper panel or components need added support. What it does:

• Provides structural support for the appliance's upper panel or assembly to prevent sagging
• Holds adjacent panels and components in the correct position for proper fit and function
• Reduces rattling or vibration caused by loose or worn mounting points
• Useful when the original support is cracked, bent, or missing and causes misalignment

• One upper support plate

• Disconnect power and water (if applicable) before starting repairs
• Basic hand tools required; access may require removal of outer panels or trim
• Reuse original screws/fasteners when possible; replace damaged fasteners
