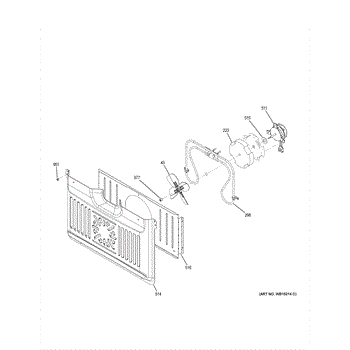

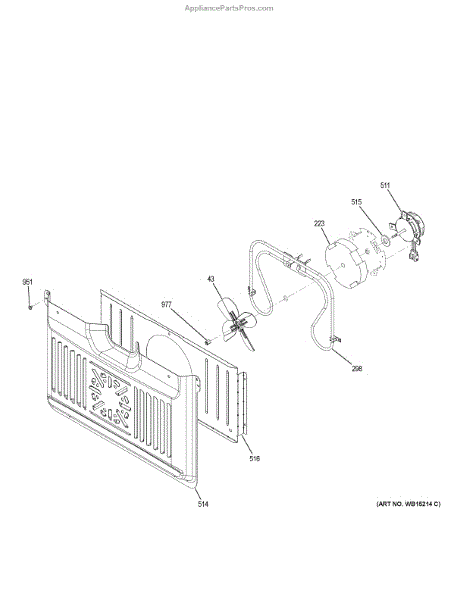

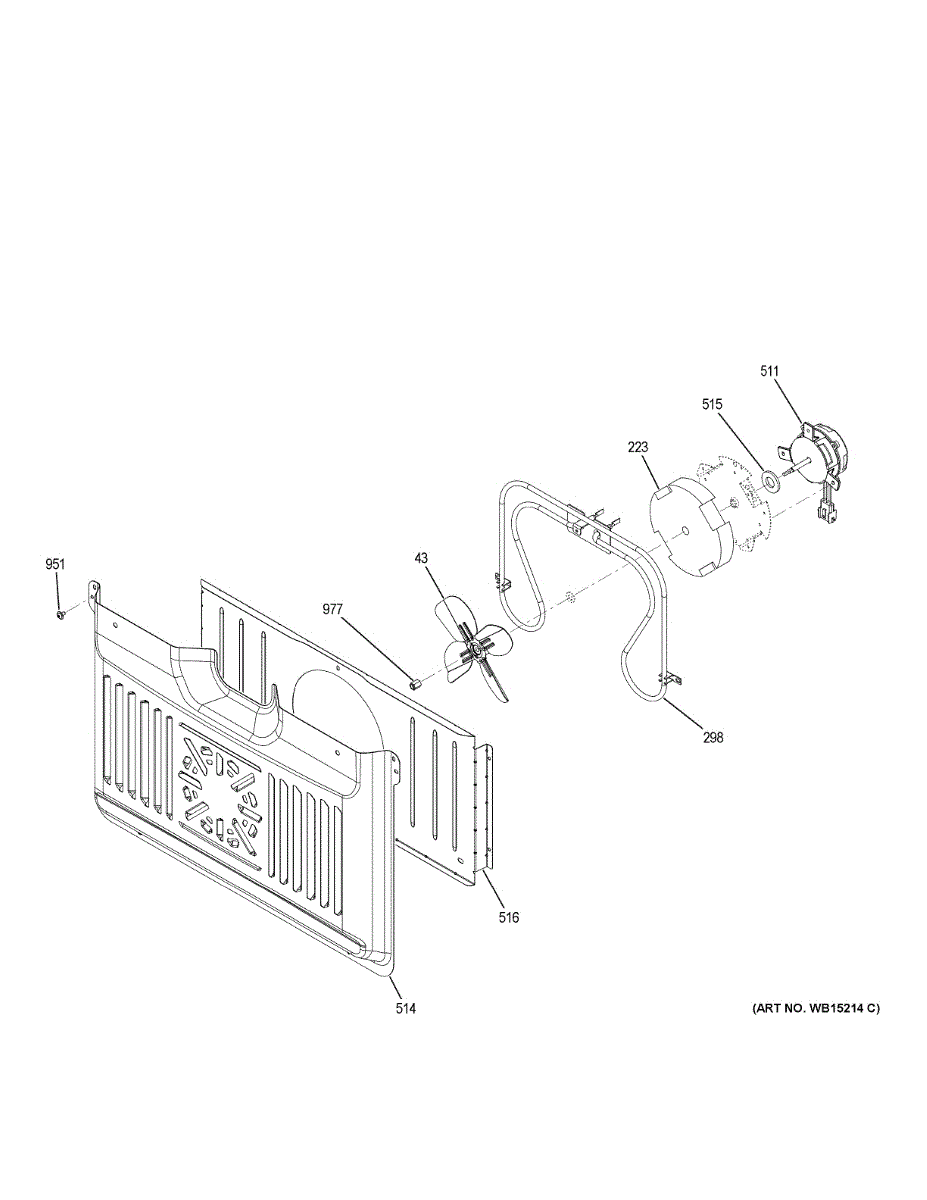

Parts for Ge JKD5000DN2BB: Convection Fan Parts

This is the oven's convection fan blade. It mounts to the convection motor shaft and circulates hot air throughout the cavity for more even baking and roasting.

• Draws heated air across the food and redistributes it for uniform temperatures
• Helps reduce hot and cold spots in convection mode
• Worn or damaged blades can cause poor convection performance or unusual noise
• Visible cracks, warping, or looseness are common replacement indicators

• Disconnect power to the appliance before servicing
• Allow the oven to cool completely; remove rear panel or interior cover to access the fan
• Note blade orientation; install onto the motor shaft and secure per manufacturer design
• The blade spins freely with no rubbing before restoring power

This convection fan insulation cushions and protects the oven's convection fan assembly, helping reduce heat transfer and noise for consistent bake and roast performance. Designed to fit the factory mounting area behind the fan. What it does:

• Thermally insulates the convection fan housing to help maintain correct oven temperatures
• Helps reduce vibration and rattling noise from the fan during operation
• Protects surrounding wiring and components from direct heat exposure
• Supports proper airflow by maintaining intended clearance around the fan

• One convection fan insulation piece as shown

• For safety, disconnect power to the appliance before starting any repair
• Handle insulation with gloves to avoid irritation and prevent contamination
• Verify correct placement around the fan housing and secure any factory fasteners

This convection element is the oven heating element that provides high-heat convection baking and roasting for consistent browning and faster cook times. Replace a damaged or non-heating element to restore convection performance. What it does:

• Heats the oven cavity during convection or bake modes to maintain cooking temperature
• Works with the convection fan to circulate hot air for even browning
• Commonly used when oven won't reach temperature or food cooks unevenly
• Matches OEM shape and mounting style for a direct replacement

• Disconnect power to the appliance at the breaker before servicing
• Allow the oven to cool completely and wear gloves to avoid sharp edges
• Verify electrical connectors and mounting points match before final installation

This convection fan motor drives the fan that circulates hot air during convection cycles. Replacing a weak or seized motor restores proper airflow, helping maintain even heat distribution and dependable convection performance. What it does:

• Spins the convection fan to move heated air through the cooking cavity during convection modes
• Helps maintain consistent temperatures for uniform results
• Typical failure symptoms: fan won't run, weak/no airflow, loud humming or squealing, uneven results in convection mode
• Operates intermittently before failing completely

• Convection fan motor

• Disconnect power before servicing
• Be aware high-voltage components can retain a charge; follow model-specific safety procedures
• Access the motor per your model's service instructions; note wire positions and rotation direction
• Ensure the fan spins freely and no obstructions contact the blade before reassembly

This gasket seals the oven's convection fan assembly. By closing the gap between the fan cover and the oven cavity, it helps prevent air leaks and supports proper airflow for more even convection cooking and steadier temperatures. What it does:

• Seals the junction between the convection fan cover/housing and the oven liner
• Helps maintain correct airflow during convection operation
• Supports more consistent oven temperatures and even baking
• Replace if the seal is torn, frayed, compressed, or missing

• 1 convection fan gasket

• Disconnect power and allow the oven to cool completely before servicing
• Access by removing the interior convection fan cover; note gasket orientation
• Clean mating surfaces before installing; seat gasket evenly and reassemble
• Use care around sharp edges; wear cut-resistant gloves and eye protection

Hex nut that secures threaded fasteners on appliances, restoring firm attachment for panels, brackets and components. Replacing a missing or damaged nut prevents loose parts and noisy operation. What it does:

• Threads onto matching studs or bolts to hold panels, trim, brackets and other appliance components in place.
• Restores proper fastening when original nut is stripped, corroded, or missing.
• Helps eliminate rattling, misalignment or loose parts caused by failed hardware.
• Works wherever a standard hex nut is specified by the manufacturer.

• Always disconnect power (and gas, for gas appliances) before accessing internal components.
• Start the nut by hand to avoid cross-threading, then finish with the correct-size wrench or socket.
• Tighten until snug; avoid overtightening which can strip threads or damage components.
• Replace any mating bolt/stud that is damaged or heavily corroded for a reliable repair.
