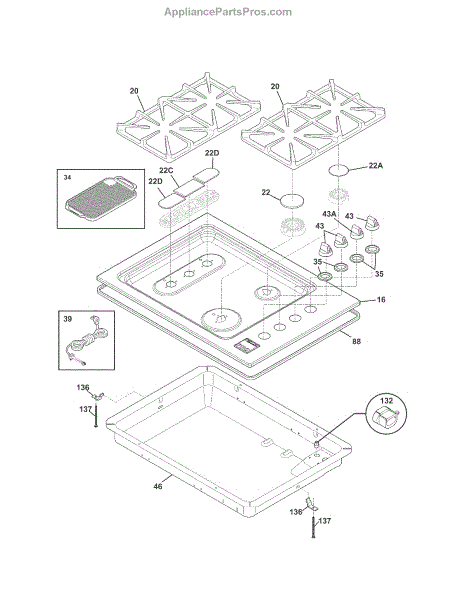

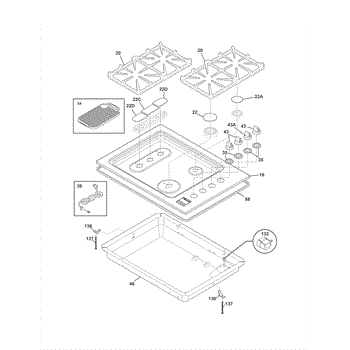

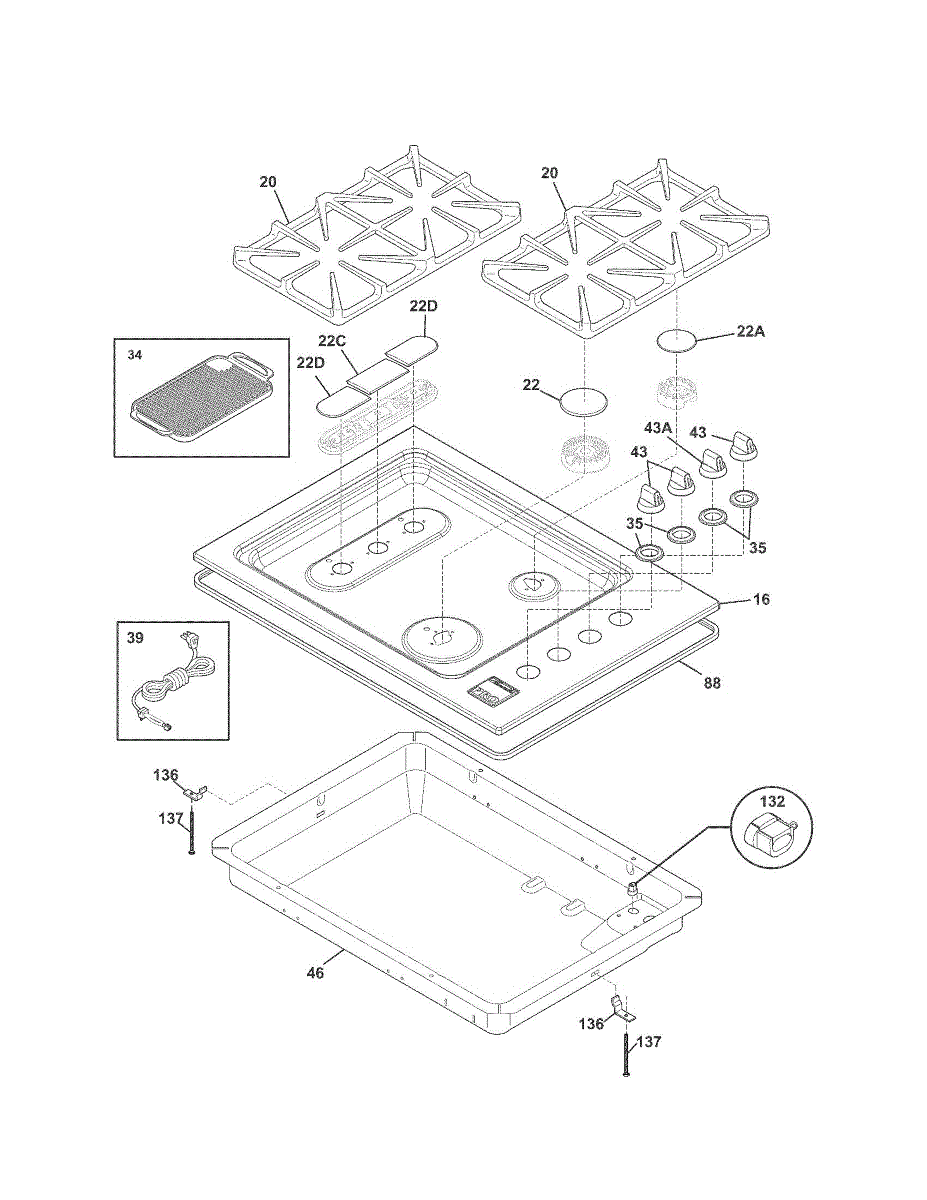

Parts for Kenmore 790.31003601 (79031003601, 790 31003601): Cook Top Parts

The Range Cap is an OEM part for Frigidaire ranges and cooktops. This cap covers the burner head, protecting it from spills and ensuring an even distribution of heat. It is designed to fit securely over the burner, maintaining both the efficiency and safety of the cooking process.

Causes of a bad range cap include cracking, chipping, or discoloration from repeated use, which can compromise its function and appearance.

Symptoms of a bad range cap include:

• Uneven flame distribution
• Visible cracks or chips
• Discoloration or burnt spots
• Difficulty in fitting the cap securely over the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Surface Burner Cap is an OEM part for Frigidaire gas ranges. It sits atop the surface burner and helps to distribute the gas flame evenly for consistent cooking performance. The cap also protects the burner head from spills and debris.

You should replace this surface burner cap if it becomes damaged or worn out. Signs of damage include chipping, cracking, or discoloration due to prolonged exposure to high temperatures or cleaning agents.

Symptoms of a bad surface burner cap include:

• Uneven or unstable flame
• Difficulty in igniting the burner
• Visible cracks or chips on the cap
• Food cooking unevenly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement power cord restores electrical connection to your appliance so it powers on safely and reliably. Designed as a direct-fit electrical cord to replace damaged, cut, or worn factory cords. What it does

• Provides the primary AC power connection from the wall outlet to the appliance.
• Replaces frayed, cracked, or damaged cords that can cause intermittent power or safety hazards.
• Helps resolve no-power or intermittent-power symptoms when the cord is the root cause.
• Restores a secure connection at the appliance and outlet when properly installed.

• Disconnect power at the breaker or unplug the appliance before starting any work.
• Route the cord through the appliance's strain relief and secure all wiring connections per the appliance's wiring diagram.
• Use insulated tools and avoid pinching or sharp bends in the cord; replace strain reliefs if damaged.

Note: Quantity of two brackets

This is an authentic OEM replacement bracket locking screw sourced directly from the manufacturer for use on range tops. The stovetop bracket is attached to the stovetop and the stove body. This locking screw is a fully threaded 2.1-inch screw. If this screw becomes loose or rusted, it should be removed and replaced to ensure the stovetop remains fully seated and in good working condition. If the screw is missing, the stovetop bracket will not be fully functional, and the stovetop could become loose. To start, disconnect the power and gas from the unit before replacing the screw on the bracket. Make certain the stove burners are not hot. Remove the burner grates, burner caps, and control knobs. Lift the range top cover. Locate the mounting bracket on the wall unit. If the screw is in the bracket but has rusted, use a screwdriver to remove the missing screw. Set the nut aside for use on the new screw. Install the new screw and the nut from the last screw. Check the bracket alignment before tightening the screw. Tighten the screw to the nut. Lower the stovetop and reconnect the power and gas. This bracket locking screw is a heavy-duty 2.1-inch silver metal screw. It is designed for use on gas ranges manufactured by Frigidaire, Kenmore, Electrolux, and Crosley.

Specs: 10-32 X 0.375

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly
