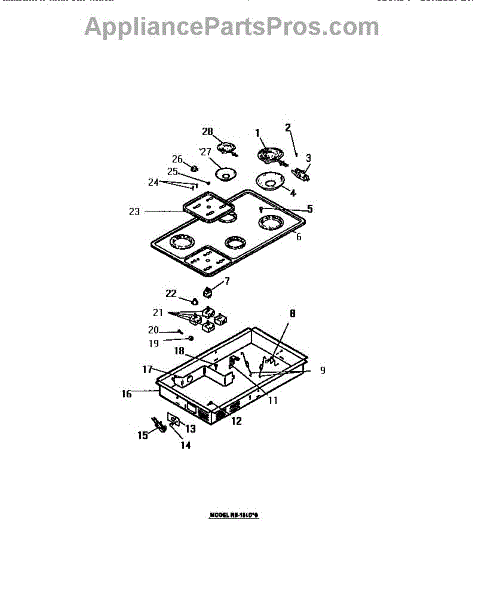

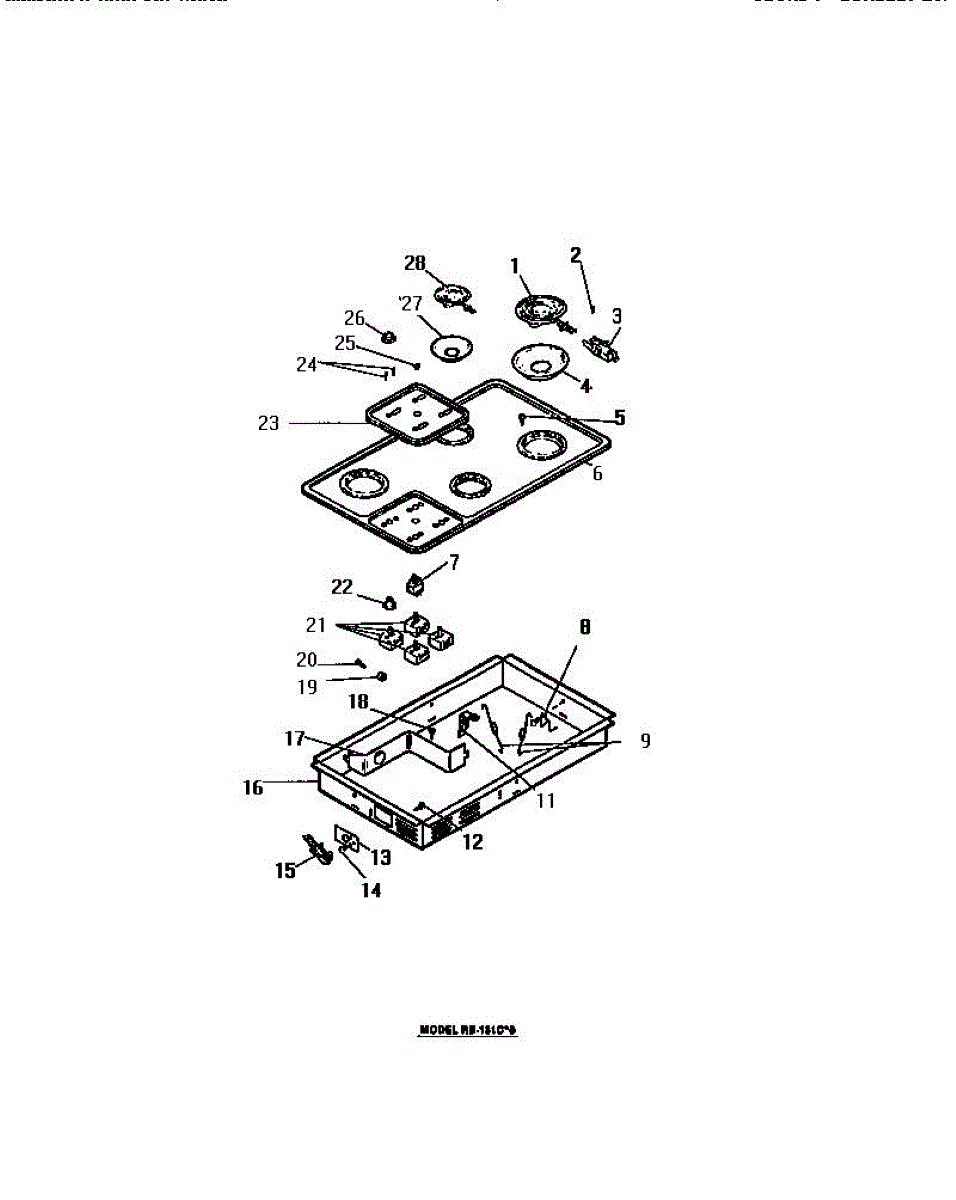

Parts for Frigidaire RB131CL0: 02 - Cooktop Parts

This is the large surface heating unit for an electric range or cooktop. Replacing a failing unit restores consistent stovetop heat so cookware warms predictably and meals cook evenly.

• Provides the heat source for the large burner position on an electric cooktop
• Converts electrical energy into controlled cooking heat
• Replace if the burner won't heat, heats intermittently or unevenly, or shows visible breaks, blistering, or burn spots
• Loose, pitted, or discolored terminals can also indicate the unit is failing

• Disconnect power to the appliance before servicing and allow all components to cool completely
• If your model uses plug-in coils: lift slightly and pull the old unit straight out of the receptacle; align and push the new unit straight in until fully seated
• Inspect the burner receptacle for heat damage before reassembly
• Restore power and test operation on low and high settings

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

Chrome drip pan installs beneath range burner elements to catch spills and drips. Replaces cracked, rusted, or worn pans for a clean cooktop appearance.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

The Surface Unit Switch Kit is an OEM part for Frigidaire ranges. It controls the power and heat levels to the surface burners on the cooktop, allowing you to adjust the temperature for cooking. This kit typically includes the necessary components to replace a faulty switch and restore proper functionality to the burners.

Causes of a bad surface unit switch can include electrical malfunctions, wear and tear from regular use, or damage due to spills or impacts. A faulty switch can prevent the burner from heating correctly or at all.

Symptoms of a bad surface unit switch include:

• Burners not heating up or heating unevenly
• Inability to adjust the burner temperature
• Burners not turning on or off properly
• Sparks or electrical odors near the switch

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Bushing that centers and supports the control shaft on rotary switches. Replace if cracked, worn, or missing to restore proper knob alignment.

If your burner isn't heating evenly or won't heat at all, this 6-inch coil element typically solves the problem. Simple plug-in replacement. Video guide.
