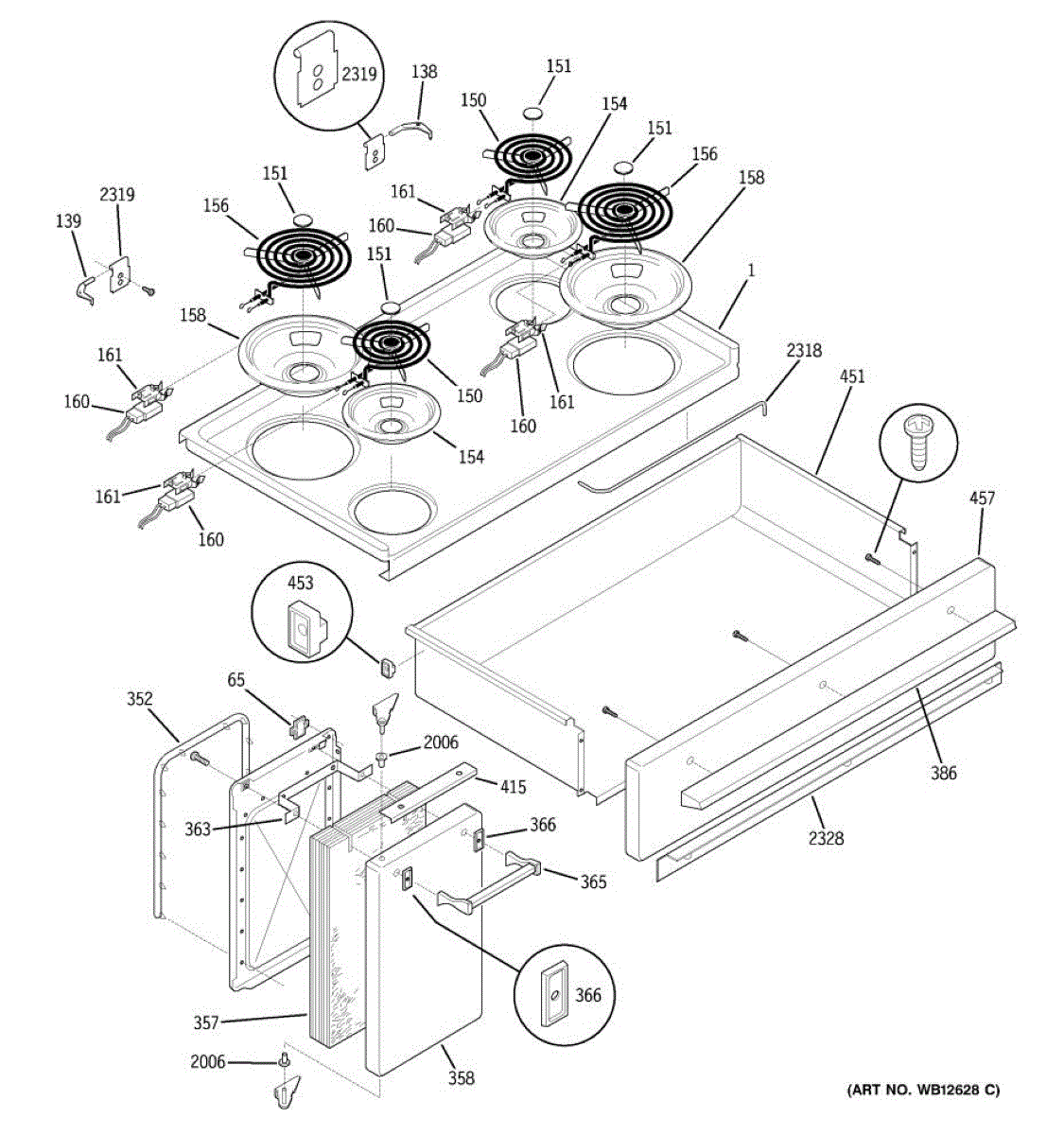

Parts for Ge JCP67F3WW: 02 - Cooktop Parts

This right-side hinge pin provides the pivot point that lets a refrigerator door open and close smoothly, restoring proper alignment and reducing sag or wobble for a secure seal. What it does:

• Acts as the pivot pin on the refrigerator door's right hinge assembly
• Supports door weight and keeps door aligned for an even seal
• Replace if the door sags, binds, makes noise, or no longer closes properly
• Works with existing hinge components; replaces worn, bent, or damaged pins

• Disconnect power and empty or support the door before removing hinge hardware
• Support the door while changing the pin to prevent injury or damage
• Tighten hinge fasteners to OEM torque and check door alignment after installation

This 6-inch drip pan sits beneath a plug-in coil surface element to catch spills and reflect heat. Replacing a stained or warped pan refreshes the cooktop and helps the element seat properly. What it does:

• Installs under a 6-inch plug-in coil element to collect drips and boil-overs
• Reflects heat back to cookware for consistent heating
• Supports and aligns the element so it sits level in the cooktop
• Common signs to replace: heavy discoloration, rust, pitting, warping, or a burner that won't sit level

• 1 6-inch drip pan

• Disconnect power at the breaker and let all surface elements cool completely
• Lift the coil element straight out of its receptacle; remove the old pan
• Align the indexing notch and seat the new pan; firmly reinstall the element
• Verify the element is fully engaged and level before restoring power

This 8-inch surface burner drip pan sits beneath a plug-in coil element to catch spills and crumbs and support the element. Replacing a stained or warped pan helps keep the cooktop cleaner and ensures the burner sits level.

• Collects drips and debris under the 8-inch coil element
• Supports the element so it seats properly and sits level
• Refreshes the cooktop's appearance by replacing stained or rusted pans
• Common symptoms: burner wobbles, pan is warped/corroded, persistent baked-on residue

• Disconnect power and allow the cooktop to cool completely.
• Unplug the coil element from the receptacle and set it aside.
• Lift out the old pan; align the new pan with the opening and any locator tabs, then seat it flat.
• Reinstall the element, fully inserting the terminals and ensuring it rests correctly in the pan.

This smooth black oven door handle replaces a cracked, loose, or missing handle to restore a secure grip and normal door operation. It's a direct-fit replacement designed for compatible GE ovens. What it does:

• Provides a sturdy grip for opening and closing the oven door
• Replaces broken, cracked, or bent handles that are hard to grasp
• Secures to the door with factory-style fasteners for proper fit
• Helps prevent accidental drops or slippage when opening the oven

• Disconnect power to the appliance and ensure the oven is cool before starting
• Basic hand tools are typically required; keep screws and fasteners from the old handle
• Align handle to door, tighten fasteners securely but do not overtighten
