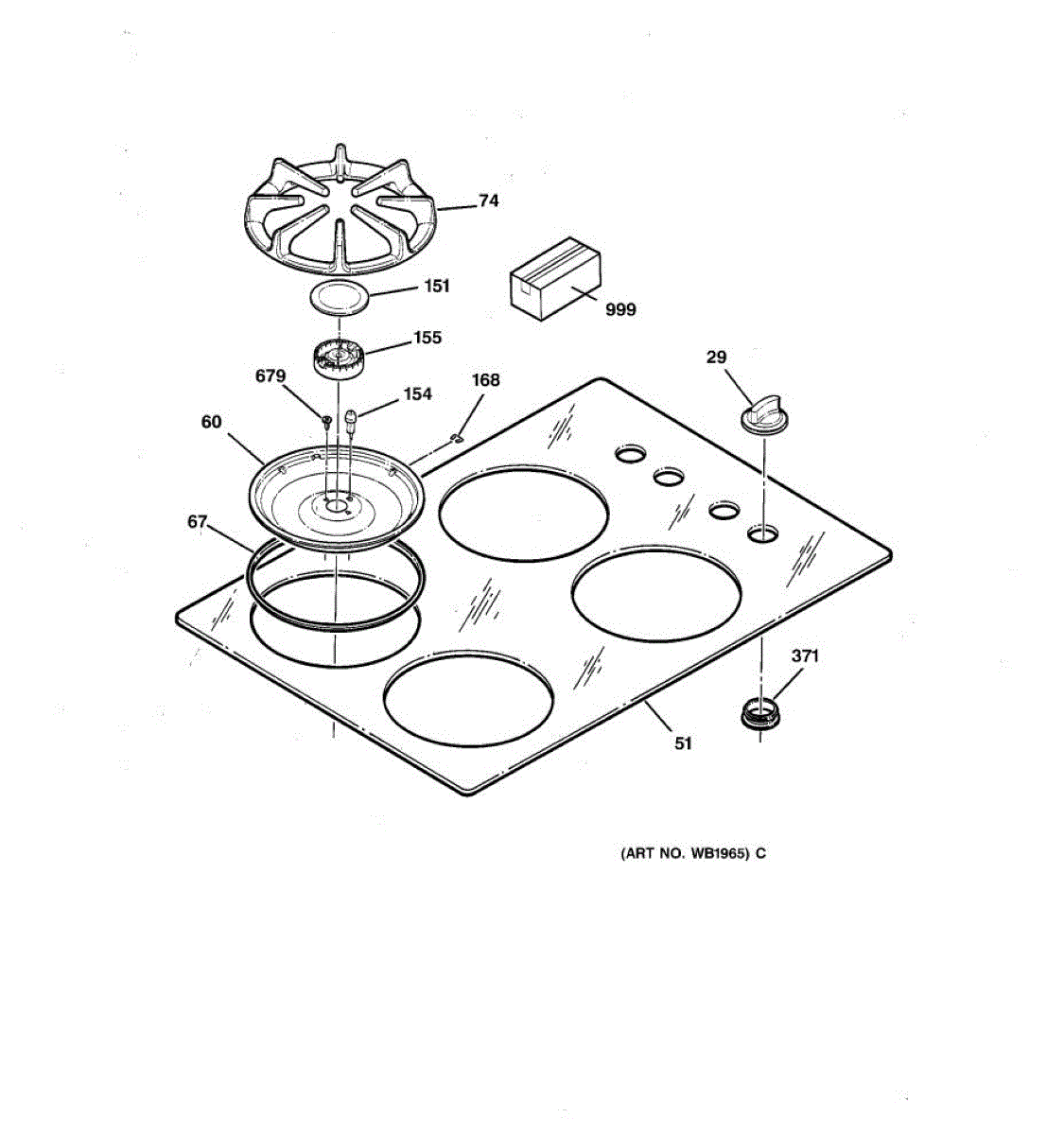

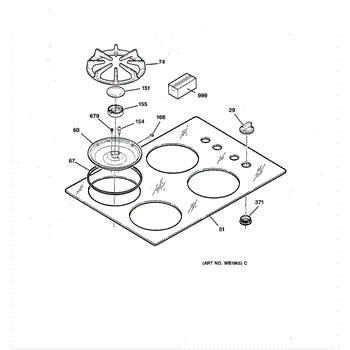

Parts for Ge JGP336AEV1AA: 01 - Cooktop Parts

Large

Medium

The Electrode is an OEM part for GE gas cooktops and ranges. This component is responsible for igniting the surface burners. They are also often referred to as spark igniters.

Causes of a bad electrode can include cracks, mineral deposits, or damage accumulated from regular usage over many heating cycles. Heat exposure degrades the material integrity of the tip.

Symptoms of a bad electrode include:

• Surface burners failing to light or ignite when turned on
• The igniter glows but flames do not ignite
• Intermittent or inconsistent ignition of burners
• Visible wear, cracks or corrosion on the electrode tip

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small metal clip secures the surface burner spark electrode to its bracket or burner base, holding the tip at the proper gap for reliable ignition. Replace a missing, bent, or corroded clip to help restore consistent sparking.

• Holds the surface burner spark electrode firmly in position near the burner head
• Maintains correct alignment and gap so the igniter can spark to the burner
• Can help with delayed ignition, intermittent sparking, or a burner that won't light
• Typical signs include a loose/wobbly electrode, visible damage, or a missing clip

What's included: 1 mounting clip Install notes:

• Disconnect power and shut off gas before servicing
• Lift the cooktop or remove burner components to access the electrode; note clip orientation
• Transfer the electrode into the new clip and seat the clip securely in its bracket or base
• Avoid stressing the electrode's ceramic insulator; verify the tip is aimed at the burner rim and test ignition

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold
