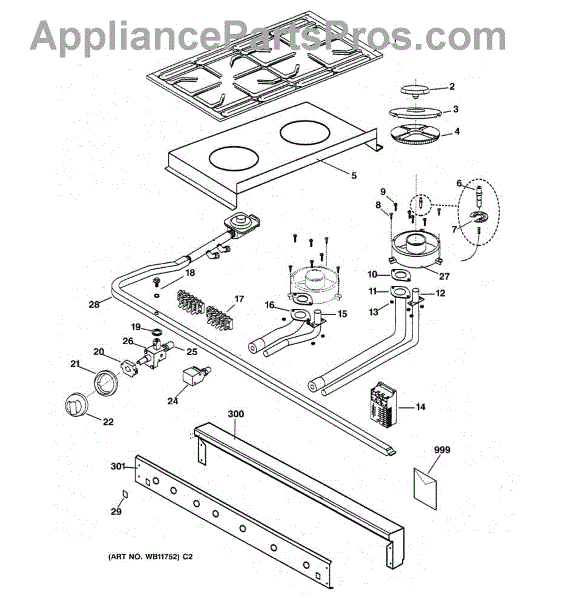

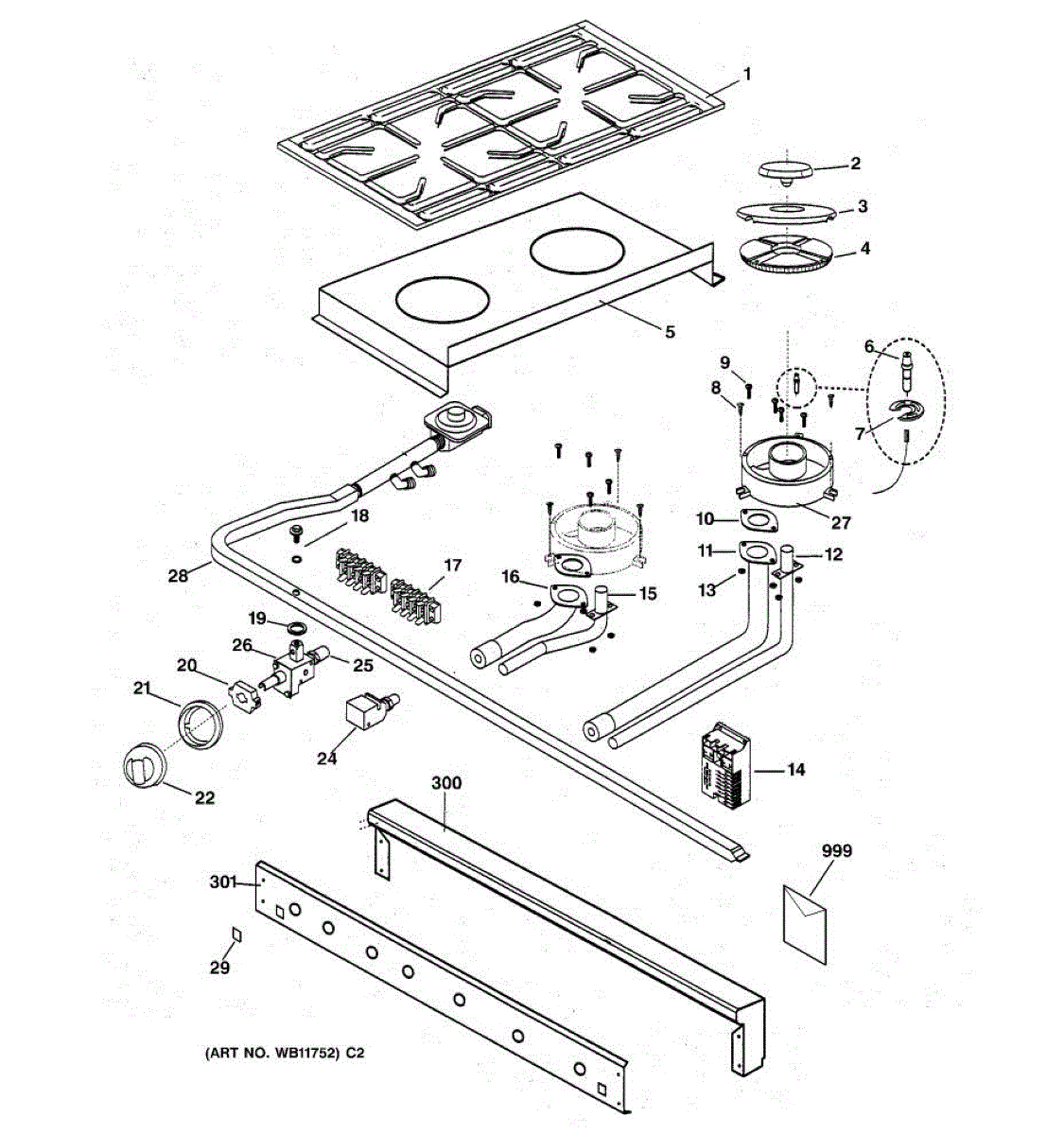

Parts for Ge ZDP36N6DSS: 01 - Cooktop Parts

Per Ge Must Also Order WB28X10018.

Note: Pack of 2.

These burner base screws secure the burner base to the cooktop or range chassis, keeping burners stable for safe, even cooking. They replace worn or missing fasteners and restore proper burner alignment and support. What it does:

• Fastens the burner base to the appliance chassis to keep the burner assembly stable.
• Prevents burner wobble and uneven heating caused by loose or missing screws.
• Helps maintain correct burner-to-surface clearance for safe ignition and operation.
• Works with standard cooktop/range burner bases that use machine screws for attachment.

• Turn off power and gas to the appliance and allow all surfaces to cool before servicing.
• Use the correct screwdriver or nut driver to avoid stripping the screw head.
• Tighten screws securely but avoid over-torquing; replace any damaged screw holes or mounting hardware.

Note: Quantity of one bolt. Order quantity needed.

This is a venturi gasket that serves as a replacement for use with gas ranges. The gasket is used on the venturi tubes, which extend from the burner to the control valves. The gaskets provide a seal, so there is not too much air mixing with the gas. If they are not working properly, they could also let the gas out beneath the burner, which would be dangerous.Over time, the gasket material will start to wear down, break, and crumble and will need to be replaced. Additionally, when doing other work, such as installing a new head on the range, it is advisable to change out the gasket at the same time if it appears worn. The replacement for this part is relatively simple.This venturi gasket will work with many models of gas stoves from General Electric. The gasket is a genuine OEM replacement part that has been sourced directly from the manufacturer. The gasket is sold individually. Owners might want to have a couple of replacements on hand.

HEX 10-24 KEPS SS. Package of 10

This 4-point spark igniter module supplies timed spark to four burner electrodes so a gas range lights reliably. It replaces a failed ignition control to restore consistent, on-demand sparking across the cooktop. What it does:

• Sends high-voltage spark to up to four burner electrodes to ignite gas burners
• Replaces a faulty module that causes no spark or no ignition at affected burners
• Common symptoms it can fix: burners won't light, intermittent ignition, or continuous clicking from the cooktop
• Helps stop arcing or misfiring when the control has failed

• Disconnect power to the appliance before starting work; if you smell gas, shut off gas and ventilate before proceeding
• Label or photo all wire connections before removal to ensure correct reassembly
• Handle the module and electrode leads carefully; avoid bending or contaminating electrode tips
• After installation, restore power and test each burner for proper spark; if you detect gas leaks or continued problems, stop.

This spark switch/simmer burner is the electrical switch that sends spark to a gas cooktop burner, restoring reliable ignition and simmer control for compatible ranges. Replaces a worn or unresponsive burner spark switch. What it does:

• Routes high-voltage spark to the burner so the gas will ignite
• Enables proper simmer flame control and consistent ignition
• Commonly replaced when a burner won't spark, sparks intermittently, or won't light
• Works with the range's control knob and ignition system to start the flame

• One spark switch/simmer burner

• Disconnect power to the appliance and turn off the gas supply before beginning work
• Access typically requires removing the cooktop or control panel; follow your model's service instructions
• Handle electrical connections carefully and replace only with the correct part number

Color: black. It measures about 2 inches in diameter.

Per Ge Must Also Order WB32X10011.
