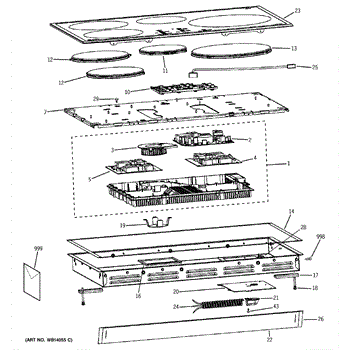

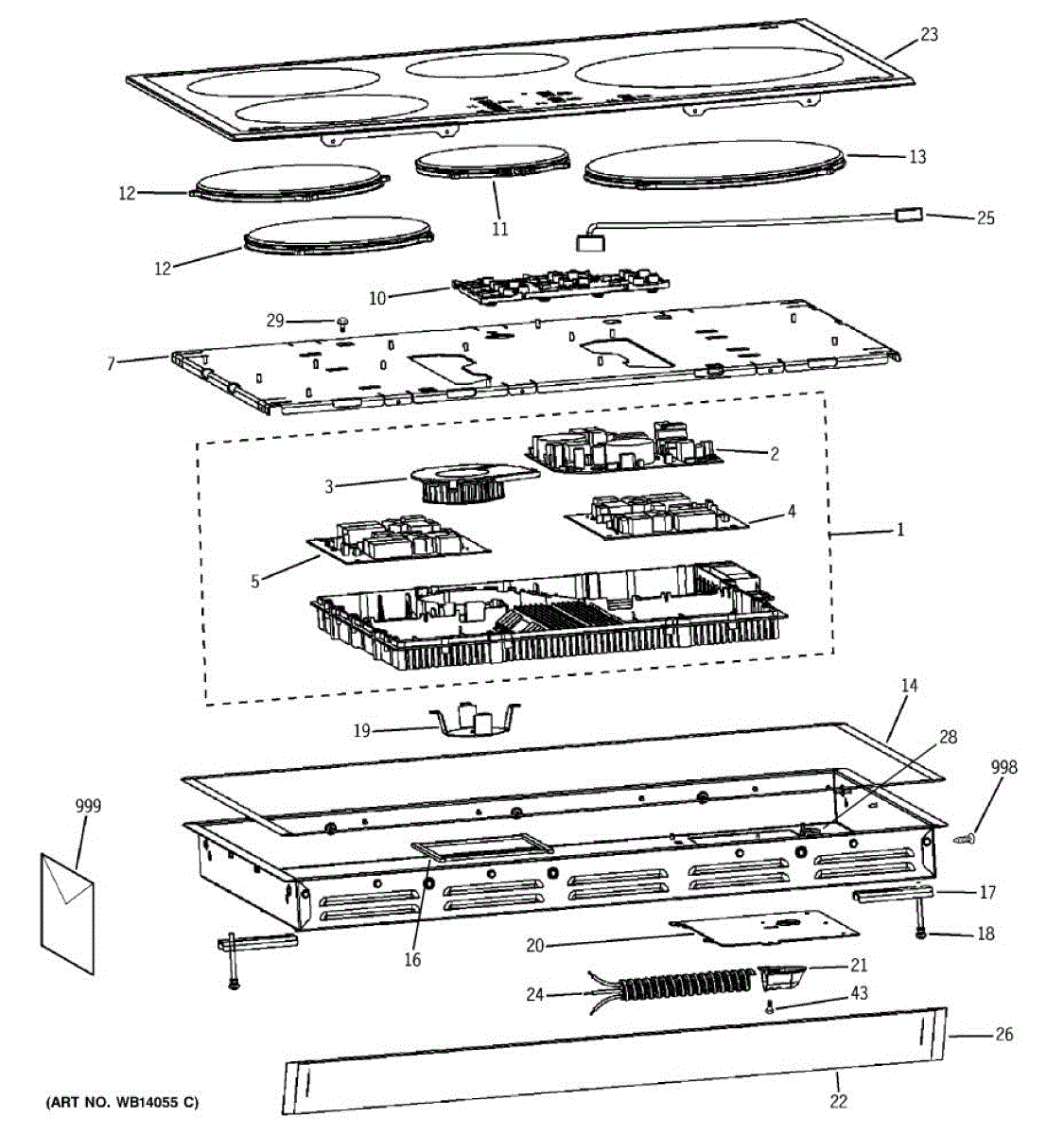

Parts for Ge ZHU30RBM1BB: 01 - Cooktop Parts

Generator module circuit board for cooktop control systems. Replaces cracked, damaged, or malfunctioning boards. Installs in control housing unit.

This filter board is the electronic control board that monitors and communicates your refrigerator's filter status and related dispenser signals, restoring proper filter detection and indicator operation. What it does

• Monitors filter presence and communicates filter status to the display or dispenser
• Sends/receives signals that enable filter-related indicator lights and alerts
• Helps restore dispenser/filter indicator functionality when the original board fails
• Common symptom: filter status light stays on or does not change after replacing the filter
• Common symptom: dispenser or filter indicator behaves intermittently or not at all

• Disconnect power to the appliance before starting service to avoid shock
• Handle the board by the edges and avoid touching contacts; protect against static discharge
• Access typically requires removing the dispenser/display or control housing—retain screws and mounting hardware

This right-side generator board is the replacement control board that completes the unit's ignition/control circuit, restoring proper operation and reliable starts. Use it to replace a damaged or non-responsive right-side generator board. What it does:

• Routes ignition/control signals to the right-side components and helps enable proper spark or control functions
• Common symptom: no ignition or intermittent starting on the right side
• Common symptom: erratic or no response from the affected side's controls
• Helps restore normal operation when the original board is cracked, burnt, or electrically damaged

• Disconnect power (and gas, if applicable) before starting any repair
• Handle the board by the edges and avoid static discharge; use ESD precautions if available
• Inspect connectors and wiring for heat or corrosion; replace damaged wiring or connectors

Gas burners won't light? This ignition generator board sends spark signals to igniters for reliable burner lighting. Intermediate difficulty repair.

Touch control circuit board for 30-inch cooktops. Replace this electronic control panel if buttons are unresponsive, cracked, or display is damaged.

Burner won't heat or heats unevenly? This rear heating element restores proper cooking temperature. Moderate DIY repair with basic tools in 30-45 minutes.

Replace a cooktop heating element that won't heat, heats unevenly, or cycles incorrectly. Moderately challenging repair requiring basic hand tools.

Burner not heating or heating unevenly? This center heating element restores consistent heat to your cooktop. Moderate difficulty installation.

Clear protective tape secures glass panels and components on your cooktop. Replace when tape loses adhesion or during glass panel repairs. Confirm fit.

Foam seal tape creates an airtight barrier between your cooktop and countertop, preventing spills from dripping into cabinets. Replace when worn or gaps appear.

Secures cooktop components during installation. Replace if bracket is bent, cracked, or missing to ensure stable mounting and proper alignment.

Replacement thumb screw for securing cooktop panels and components. Hand-tighten without tools for quick access. Replaces worn or missing screws.

This conduit clamp secures 1/2" electrical conduit or flexible armored cable to the appliance chassis, keeping wiring routed and strain-relieved for safe operation. It's a small replacement part used where the conduit passes into the control box. What it does

• Holds 1/2" conduit or flexible armored cable firmly at the entry point to the appliance cabinet.
• Provides strain relief to reduce stress on internal wiring and connections.
• Helps maintain proper wiring routing to prevent chafing or interference with components.
• Commonly used on ranges, ovens and other appliances that require a conduit connection to the control area.

• One conduit clamp (1/2") as shown.

• Always disconnect power to the appliance before servicing electrical components.
• Remove access panel to reach the mounting location; position clamp around the conduit and secure against the chassis.
• May require a small screw or nut to fasten.
• If wiring appears damaged or loose, inspect and repair wiring before reapplying power.

Heat baffle for gas cooktop burners. Installs beneath burner cap to distribute flame evenly. Replace if cracked, warped, or damaged for proper heat flow.

Replacement glass top assembly for your cooktop. Installs as the main cooking surface. Order when your original glass is cracked, chipped, or broken.

Foam seal tape creates an airtight barrier between your cooktop and countertop, preventing spills from dripping into cabinets. Replace when worn or gaps appear.

Replacement mounting screw for cooktop installation and assembly. Needed when original screw is stripped, missing, or damaged during maintenance.

Replacement body screw for cooktop panels and trim. Secures exterior components to the chassis. Order a new fastener if original is stripped, missing, or lost.
