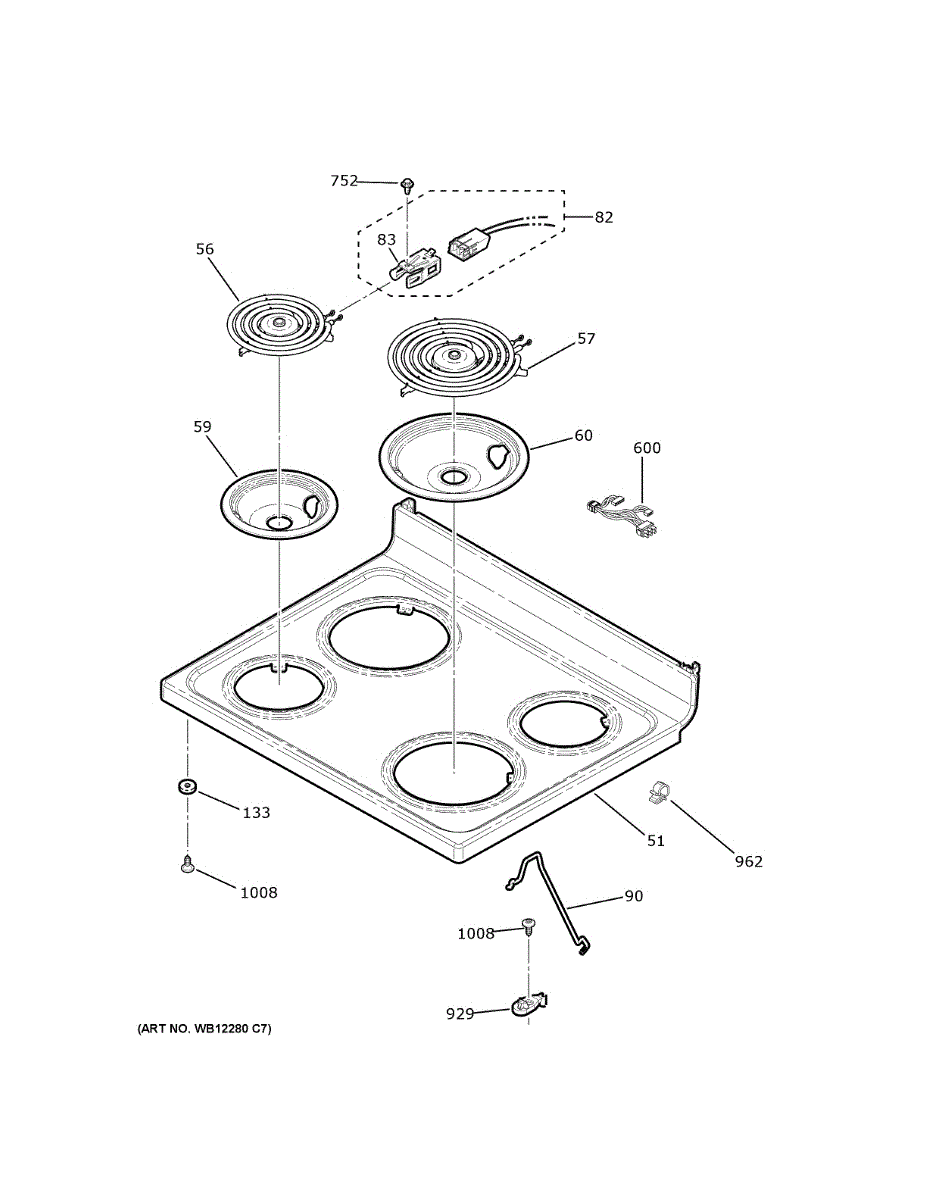

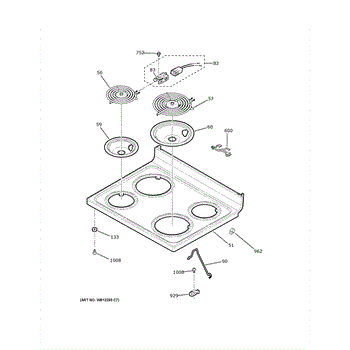

Parts for Ge JB258RT3SS: Cooktop Parts

The 6" Surface Burner with Sensor is an OEM part for GE ranges. This part provides precise heating for cooking on your range's stovetop. The integrated sensor helps regulate the burner temperature, ensuring even and consistent cooking results.

Common causes of a bad surface burner include electrical issues, wear and tear over time, or damage from excessive heat or spills.

Symptoms of a bad surface burner with sensor include:

• Burner not heating up
• Inconsistent or uneven heating
• Burner temperature not being properly regulated
• Error codes or malfunction indicators on the range display

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 8-inch drip bowl sits beneath the surface coil on your range to catch spills and support the element. Replacing a rusted or stained bowl refreshes the cooktop and helps the coil sit level for reliable heating.

• Collects drips and boilovers under the 8-inch surface coil
• Positions and supports the element over the receptacle
• Helps keep the cooktop cleaner and easier to maintain
• Common signs to replace: heavy staining, rust/corrosion, warping, holes, or the element not sitting level

• Disconnect power and allow the cooktop to cool completely
• Lift the coil element slightly, then pull straight out of the receptacle
• Remove the old bowl, align the notch/orientation of the new bowl, and seat it flat
• Reinsert the coil element terminals fully into the receptacle and verify it sits level

This clip receptacle is a small retaining clip used in select cooking appliances. It secures a mating receptacle or component so it stays properly positioned and connected for consistent operation.

• Retains a receptacle or component at its mounting point to prevent movement
• Helps maintain correct alignment and a stable connection
• Replaces a bent, fatigued, or missing clip
• Common symptoms include a loose or shifting part, intermittent operation, or a visibly broken/missing clip

• Disconnect power (and gas supply if applicable) and allow the appliance to cool before servicing
• Refer to your model's parts diagram for the exact location and orientation
• Use needle-nose pliers for removal/installation; avoid over-bending to maintain clamping force
• Confirm a secure fit and proper clearances before reassembly and testing

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.
