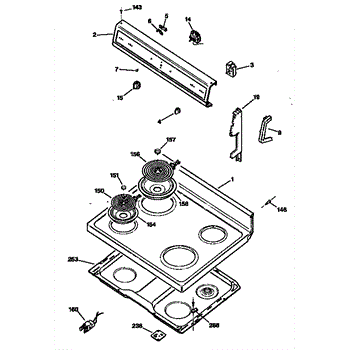

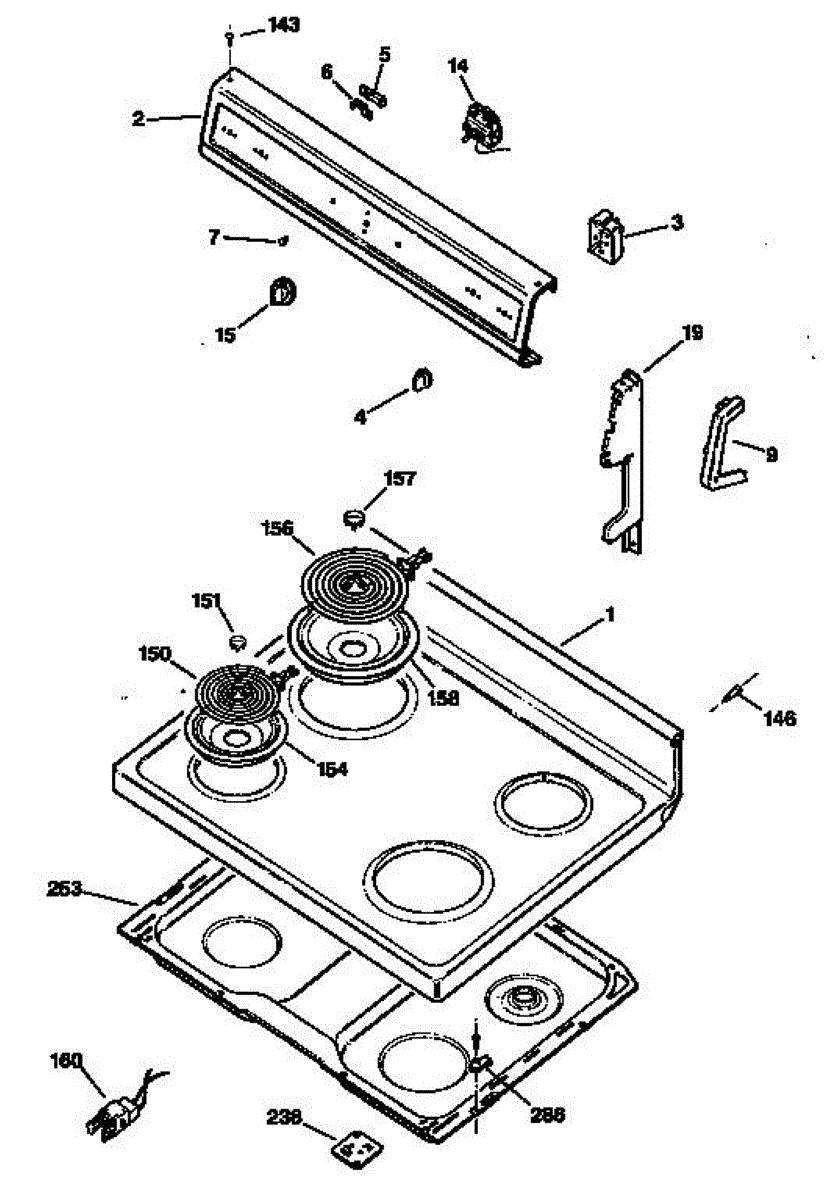

Parts for Ge JBS06*R2: Cooktop Parts

This part has been discontinued and is no longer available.

Decorative lens cover for range control panel indicator lights. Replace when cracked, faded, or missing to restore appearance. Verify fit by model.

Color: Black

Left side end cap for electric range control panels. Replaces cracked, broken, or missing trim pieces. Black finish secures panel edges for clean look.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

Cooktop chassis frame box that supports and encloses the burner assembly on your electric range. Replace if cracked, bent, rusted, or damaged.

A replacement wiring diagram sheet that shows the appliance's electrical schematic and component connections to help diagnose wiring and control issues. Clear, OEM-style schematic layout for accurate reference during troubleshooting. What it does:

• Shows the electrical schematic and connector locations so you can trace circuits and wiring paths
• Helps identify which components and terminals are tied to specific circuits during tests
• Useful for diagnosing intermittent or no-power symptoms tied to wiring or control failures
• Aids correct reconnection after servicing controls, switches, or harnesses

• Always disconnect power to the appliance before accessing electrical components
• Use the diagram as a reference—verify wiring and terminal labels against the appliance before making connections
• Handle the sheet carefully to avoid tears or marks that could obscure wiring details

Range won't power on or heats intermittently? A faulty terminal block disrupts electrical connections. This double terminal block restores power flow.

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.
