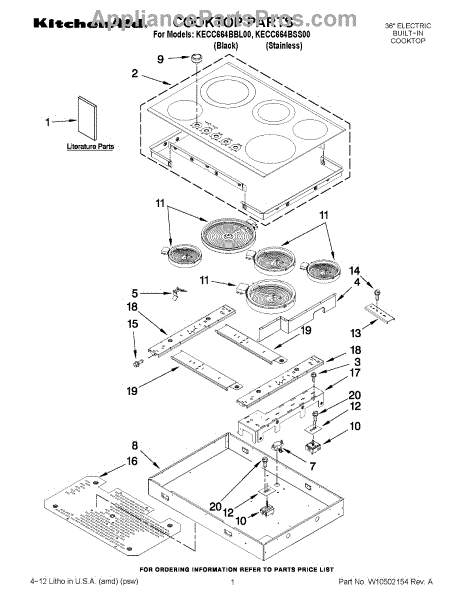

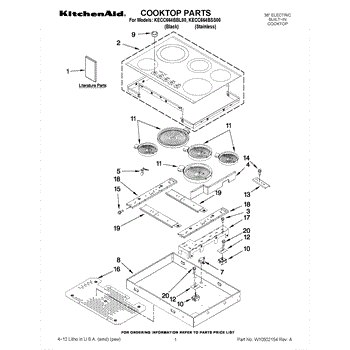

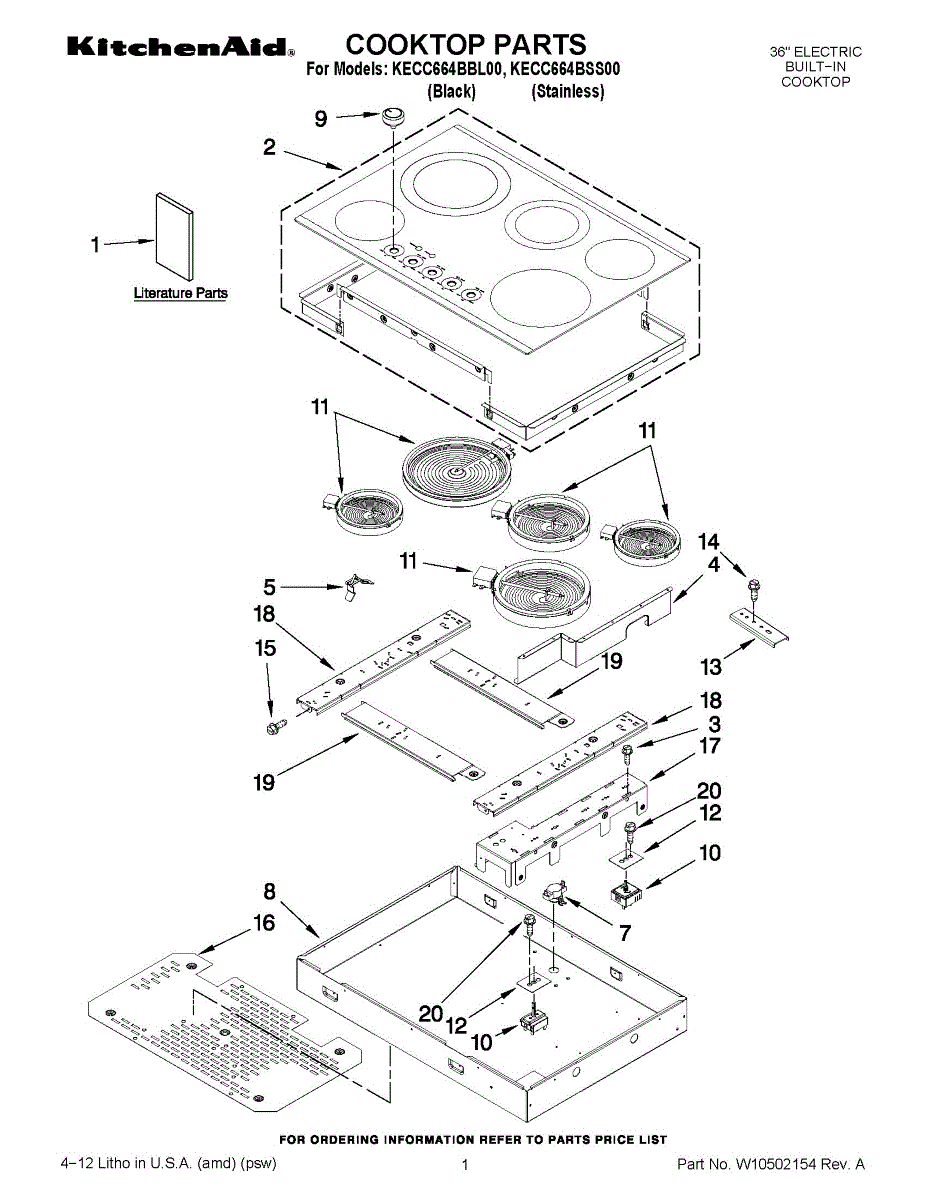

Parts for Kitchenaid KECC664BBL00: 01 - Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This control knob restores manual control of a range or cooktop burner so you can select heat settings with a secure, easy-to-grip dial. Designed to match the original fit and feel for simple replacement. What it does:

• Replaces a cracked, stripped, or missing control knob so you can turn burners or temperature controls smoothly
• Provides tactile detents and clear position changes for reliable setting selection
• Prevents slipping on the shaft that causes inaccurate or inconsistent control
• Helps restore a finished look to the control panel when the original knob is damaged

• Disconnect power (and gas supply if applicable) before servicing the appliance
• Remove the old knob by pulling straight off the control shaft; align splines and push the new knob onto the shaft until seated
• Do not force or hammer the knob onto the shaft; verify correct fit and function before reapplying power or gas
• If the shaft is damaged or the knob doesn't seat properly, inspect the control valve/shaft and replace as needed

This infinite switch is the user control for an electric cooktop surface element, letting you select variable heat settings for cooking. Replaces a failed control to restore responsive temperature adjustments. What it does:

• Regulates power to a surface heating element so the burner cycles through low to high heat settings
• Helps fix burners that won't heat, only work on certain settings, or don't change temperature smoothly
• Provides a direct replacement for a worn or intermittent burner control that causes inconsistent cooking
• Works with ranges that use a separate infinite-style selector for each top burner

• One infinite switch

• Disconnect power to the range at the breaker before servicing to avoid shock risk
• Access usually requires removing the back console or cooktop—refer to your model's service manual for instructions
• Handle terminals carefully; ensure correct wiring and secure connections before testing

This infinite top burner control switch restores variable heat control to an electric range burner so the cooktop responds correctly to knob settings. It replaces a worn or faulty rotary control for simmer-to-high temperature adjustment. What it does:

• Regulates power to a single surface element so you can adjust burner heat across multiple settings
• Commonly used when a burner won't heat, heats inconsistently, or won't change temperatures with the knob
• Can address symptoms like a burner stuck on one setting, no heat from a specific burner, or erratic temperature control
• Works with the range's knob and wiring harness to provide stepped/resistive control rather than simple on/off operation

• Disconnect power to the appliance at the breaker before inspecting or replacing the switch
• Handle terminals and wiring carefully; avoid touching live contacts and verify correct connector orientation before reassembly
• The switch matches the original by comparing terminal layout and mounting points

This dual infinite switch controls power to a dual radiant surface element, providing smooth, adjustable heat for the inner ring or both rings of the burner. Replace a worn switch to restore precise temperature control and consistent performance.

• Regulates voltage to the surface element for variable heat levels
• Selects inner-only or dual-ring operation as designed by the control
• Common symptoms of a failed switch: no heat, stuck on high, uneven or unresponsive temperature, only one ring heats
• Helps restore reliable low-to-high settings on the dual burner

• Disconnect electrical power at the breaker before servicing
• Remove the control/back panel and knob to access the switch
• Photograph wiring and transfer leads one at a time to matching terminals on the new switch
• Secure the switch, reassemble panels/knob, restore power, and test both single- and dual-ring settings

This surface heating element replaces a failed top burner to restore stovetop heating for cooking. It installs into the cooktop and provides the heating surface that transfers heat to cookware. What it does:

• Heats cookware when the stove element control is on
• Restores a burner that does not heat or only heats intermittently
• Replaces elements that show visible damage, breaks, or do not glow when powered
• Helps correct uneven heating or inconsistent temperature at one burner

• Includes one surface heating element

• Disconnect power to the range at the breaker before beginning repair
• Allow the cooktop and element to cool completely before handling
• Handle terminals carefully and reconnect using the original wiring and hardware
• After installation, test the burner on low and high settings to ensure proper operation

This is a dual radiant surface element for use with certain range models. The surface element supplies heat to the cooking area on the range's surface. If the element is not functioning correctly, the owner will not be able to use the range because it won't heat up.The dual radiant surface element is long-lasting, but this does not mean it will last forever. It could still need to be replaced if it wears out or is damaged. Shut off the circuit breaker to the range or unplug it before starting this replacement.The dual radiant surface element is sold individually. It is compatible with select models from Whirlpool, Maytag, and KitchenAid. This is a genuine OEM replacement part sourced from the manufacturer.

This is a radiant surface heating element for smooth-top electric ranges. It replaces a failed burner to restore up to 1300 watts of even heat and dependable temperature control under the glass-ceramic cooktop. What it does:

• Generates radiant heat beneath the glass surface when powered by the burner control
• Restores proper heating if a burner will not heat, heats unevenly, or cycles off too quickly
• Helps eliminate long heat-up times caused by a weakened or open element
• Replaces elements with visible damage such as broken ribbons, burn spots, or charred terminals

• 1 radiant surface element (1300W)

• Disconnect power at the breaker or unplug the range before servicing
• Allow the cooktop to cool fully; lift/prop the glass top to access the element
• Note wire positions; transfer any mounting brackets/clips from the old element and reconnect wires securely
• Handle the element carefully and avoid stressing the ribbon; reassemble and test the burner before finalizing

Replace a failed surface heating element to restore reliable, even heat on your electric cooktop or range. This 3200-watt element helps get that cooking zone working properly again.

• Generates heat for the selected surface burner when turned on
• Works with the control to reach and maintain the set cooking temperature
• Useful when the old element shows visible breaks or burn marks

• Disconnect power at the breaker/fuse box and allow the cooktop to cool completely
• Access the element beneath the cooktop top panel per your model's procedure
• Label/photograph wire locations; transfer wires and any mounting hardware from the old element
• Handle the element and glass surface carefully to prevent damage

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model
