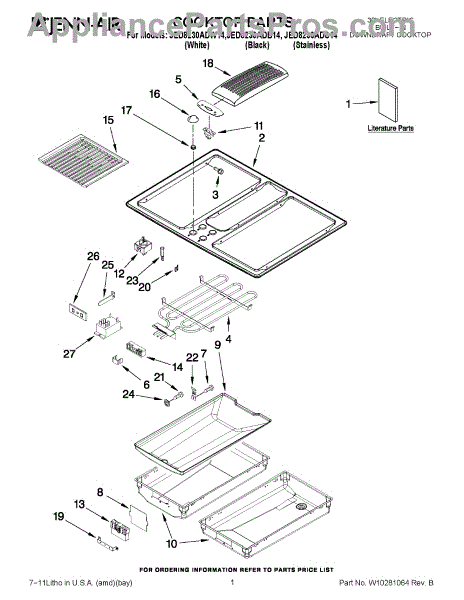

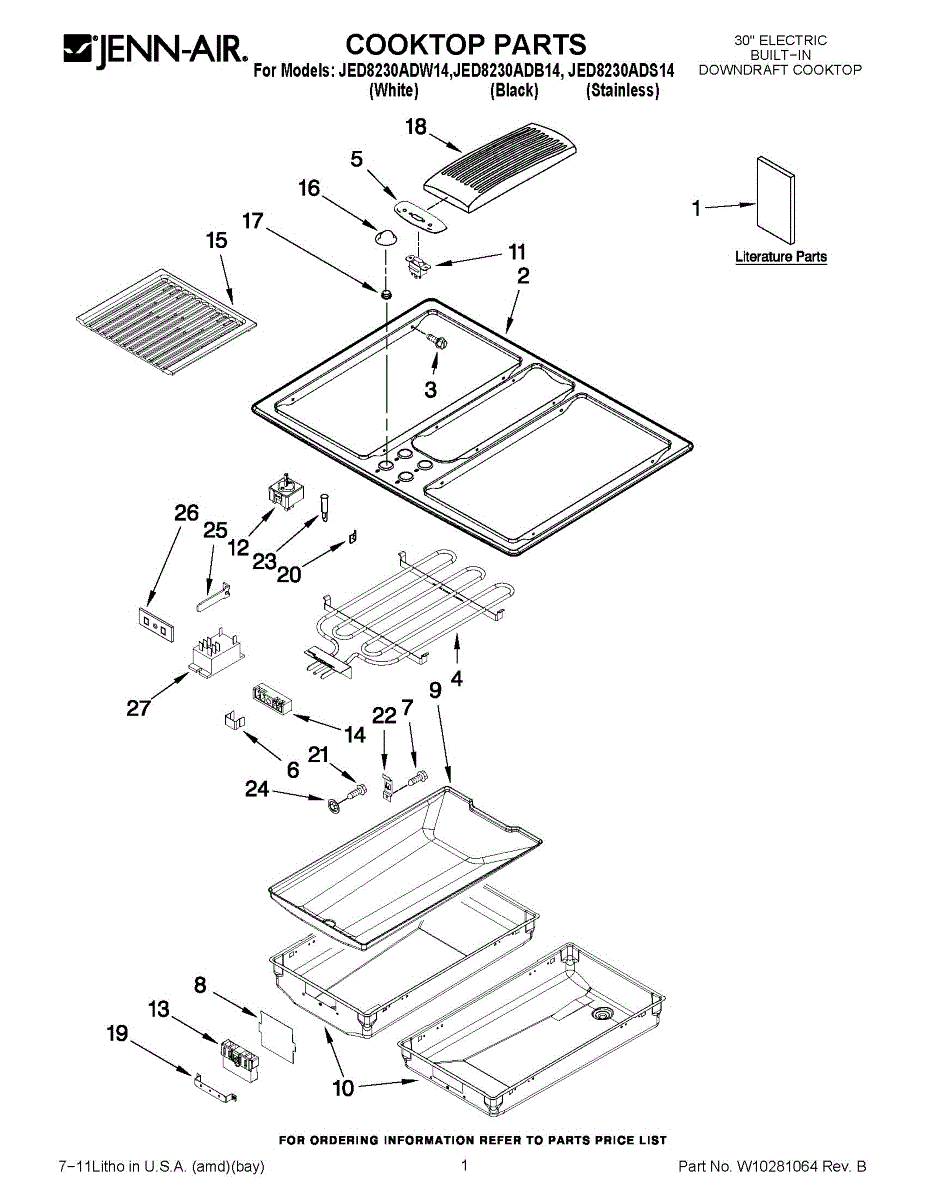

Parts for Maytag JED8230ADB14: 01 - Cooktop Parts

This grill element is the radiant heating coil used for the appliance's grill/broil function. Replacing a failed element restores strong, even radiant heat for searing, browning, and finishing as designed.

• Provides direct radiant heat for the grill/broil cycle
• Cycles under control to maintain target temperature
• Common fix for no broil/grill heat or uneven top browning
• Visible damage such as blisters, breaks, or arcing points indicates replacement is needed

• Disconnect power at the breaker or unplug before servicing; allow the unit to cool
• Access the element per your model; remove mounting screws and carefully lower/slide it out
• Disconnect the wire terminals; support wires so they don't retract into the cavity
• Attach wires to the new element, secure with original hardware, and avoid bending the coil

This replacement surface burner knob restores reliable control of your cooktop or range. It attaches to the control shaft so you can turn the surface element/burner on and accurately adjust the heat level. What it does:

• Mounts on the surface control valve/switch shaft to select OFF and adjust heat settings
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps resolve issues like a knob spinning freely, wobbling, or not staying on the stem
• Restores confident, consistent control over the surface burner/element

• 1 surface burner knob

• Disconnect power and allow all burners to cool; if applicable, shut off gas
• Pull the old knob straight off the control shaft—do not pry against the panel
• Align the new knob with the shaft and press straight on until fully seated
• Verify smooth operation and OFF alignment; reseat if needed

This bracket supports the oven's grill/broiler pan, holding the pan securely during broiling and grilling so food cooks evenly and the pan stays stable. It replaces a worn or broken support bracket. What it does:

• Secures the grill/broiler pan in position so it doesn't shift during use
• Helps maintain proper pan alignment for even browning and cooking
• Prevents rattling or sagging caused by a damaged bracket
• Restores safe support for loading and removing the broiler/grill pan

• One grill pan support bracket

• Designed for oven internal use;
• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Install with existing fasteners; replace any damaged clips or screws if needed

This small replacement clip secures the appliance control panel or indicator assembly, keeping lights and switches properly positioned for reliable use and a finished appearance. It's a simple fix that restores panel alignment and prevents rattling. What it does:

• Holds the indicator or control panel trim in place to maintain proper alignment
• Prevents rattling, loose trim, or misaligned indicator lights
• Keeps switches and indicator assemblies seated for reliable operation
• Restores the finished fit between the control panel and console

• Disconnect power before servicing to avoid shock or injury
• Remove the console or trim per your model's service instructions to access the clip
• Pry or release the old clip carefully; avoid bending surrounding trim or damaging wiring
• Reinstall the new clip until it snaps into place; verify panel and indicators are seated correctly before restoring power
