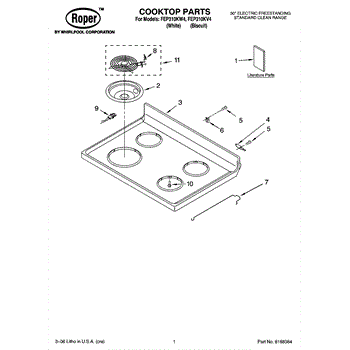

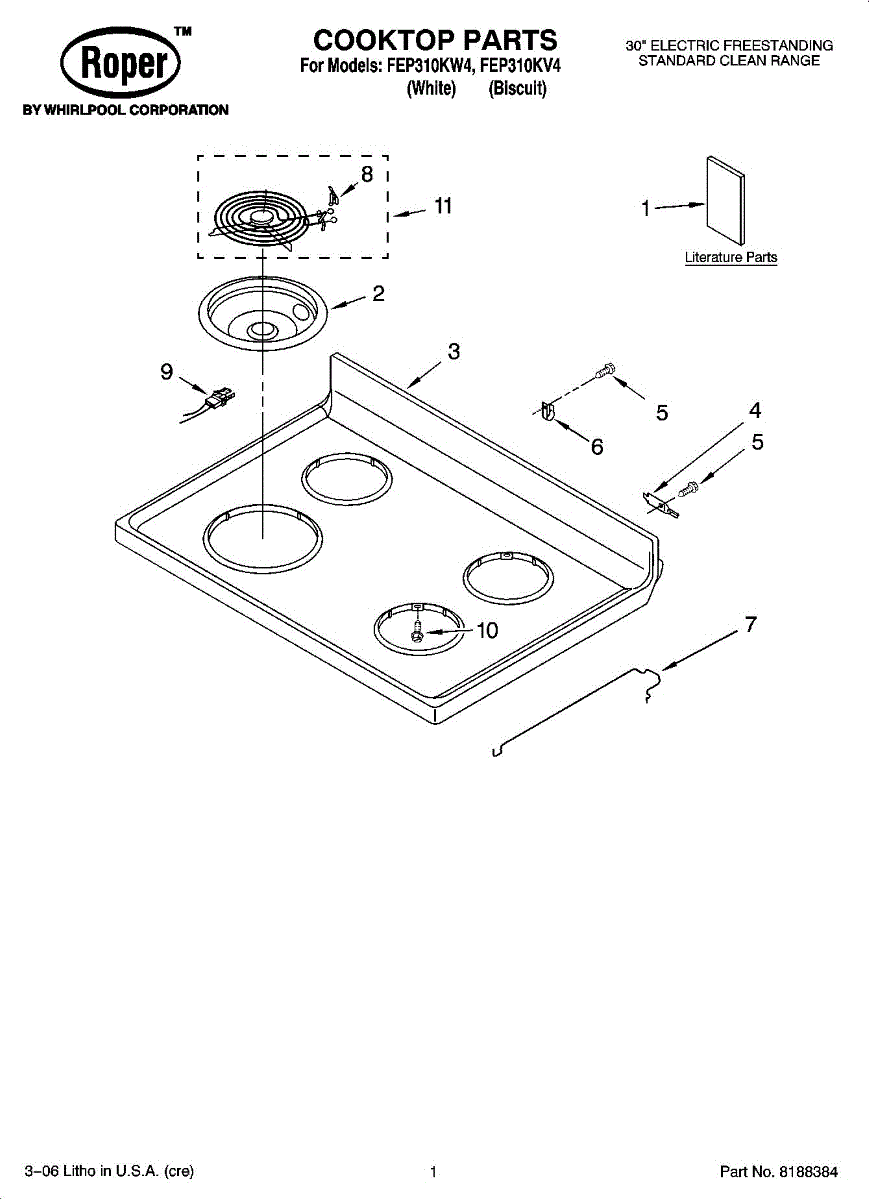

Parts for Roper FEP310KW4: 01 - Cooktop Parts

The Stove Top Drip Pan is an OEM replacement part for Whirlpool gas and electric ranges. It is located underneath the stove burners and grates to catch and contain grease drippings and spills. Over time, grease and cooking residue buildup can cause drip pans to crack, warp or corrode.

Symptoms of a bad stove top drip pan include:

• Grease spillovers outside of the drip pan area
• Flames or heating elements obstructed by built-up debris
• Warping or cracking of the pan surface
• Difficulty removing or cleaning the drip pan

Causes can be normal wear from heat and long-term grease exposure. Accidental damage during cleaning is also possible.

 This OEM part is also compatible with Maytag, Jenn-Air, Amana and some Kenmore models.

The Drip Pan (LG) is an OEM replacement part for Whirlpool ranges and ovens. It is a durable metal tray designed to catch any spills, drips, or boil-overs that may occur during the cooking process, helping to keep the oven cavity clean and preventing potential messes or smoke from burnt-on spills.

Symptoms of needing to replace the drip pan include:

• Warping or discoloration from excessive heat exposure
• Cracks or breaks in the pan material
• Difficulty sliding the pan in and out of its designated position

Causes of a drip pan failure can include general wear and tear from repeated use and high temperatures, physical damage from impact or abrasion, or corrosion or deterioration due to exposure to acidic food spills or cleaning agents.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For 6-inch drip bowl order W10196406RW

Color: Bisque

Color: White

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This cooktop support rod props the range top open during cleaning or service, preventing accidental slams. Replace a bent or missing rod to keep the cooktop safely supported while you access surface components.

• Supports the lift-up cooktop in the open position
• Helps prevent the cooktop from dropping unexpectedly
• Provides safer access to burners, igniters, and valves for cleaning or repair
• Common signs of failure: top won't stay up, rod is bent, loose, or missing

• Disconnect power and shut off gas; allow the appliance to cool completely
• Lift and support the cooktop; note the rod's orientation and pivot points
• Disengage the old rod from its brackets and install the replacement securely
• The rod holds the cooktop open before closing

This small spring clip secures a heating element to its mounting bracket in a range or wall oven, keeping the element properly positioned for safe, consistent heating. Replaces a worn or missing retainer to stop the element from shifting or sagging. What it does:

• Retains the heating element against its mounting point or bracket
• Helps prevent element sagging, shifting, or rattling during use
• Maintains proper alignment and spacing for reliable performance

• 1 metal spring clip

• Disconnect power at the breaker and allow the appliance to cool completely
• Support the element while removing/installing the clip to avoid stressing terminals
• Match the original clip's orientation and location before reassembly
• Do not bend or overtension the heating element; replace any damaged hardware or wiring as needed

The Surface Burner Receptacle is an OEM part for Whirlpool ranges. It is designed to hold the surface burner element in place and provide the electrical connection needed for the burner to heat up. This component ensures a secure and efficient transfer of electricity to the burner element, allowing for proper cooking performance.

Causes of a bad surface burner receptacle can include regular wear and tear from frequent use, exposure to high temperatures, or damage due to corrosion or accidental impact. These factors can lead to poor electrical connections or the burner element not staying securely in place.

Symptoms of a bad surface burner receptacle include:

• Burner element not heating or heating inconsistently
• Burner element not fitting securely or wobbly in its socket
• Visible signs of damage, such as burns or melted plastic around the receptacle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a ground-wire screw used to attach a grounding conductor to the appliance chassis, ensuring a reliable electrical ground and safer operation. It matches the common 8-32 machine screw thread used on many Whirlpool appliances. What it does:

• Secures the ground wire to the appliance cabinet or grounding point
• Restores or maintains a continuous equipment ground for safe operation
• Helps prevent electrical shock and fault conditions when properly installed
• Fits locations that accept an 8-32 threaded screw for grounding

• One ground-wire screw

• Disconnect power before accessing electrical components or performing service
• Use the correct Phillips driver or nut-driver sized for 8-32 screws to avoid stripping
• Tighten until snug—do not over-torque; ensure the grounding conductor is under the screw head or terminal as intended
• If corrosion or damaged threads are present, clean or replace the mating hardware to ensure a secure ground

Restore steady cooking performance with this surface element coil. The 6-inch, 1250-watt burner replaces a worn or open coil so your range heats properly for everyday simmering, sautéing, and boiling.

• Generates heat on a 6-inch cooking zone for boiling, sautéing, and simmering
• Fixes a burner that won't heat or only heats intermittently
• Addresses uneven heating or unusually slow warm-up
• Helps when the coil shows visible breaks, blistering, or burned spots

• Disconnect power at the breaker and let the cooktop cool completely
• Remove the old coil and inspect the receptacle/terminal block; replace if burnt or loose
• Align prongs and press the new coil fully into the receptacle; ensure the support bracket seats in the drip pan notch
• After installation, test the burner with a pan to ensure even heating

This Surface Element is an OEM part for Whirlpool cooktops and ranges. It is responsible for generating heat, which is essential for various cooking tasks. This is the 8-inch element with 4 turns. For the 6-inch element, you will need part number WPW10345407.

Causes of a faulty surface element can include wear and tear over time, electrical component failure, or damage due to overheating or impact. These factors can result in the element not heating up properly, uneven heat distribution, or the element not working at all.

Symptoms of a bad surface element may include:

• No heat or inadequate heat generated
• Uneven cooking or hotspots on the cookware
• The element not turning on or functioning intermittently

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Note: For the Receptacle Kit, order part number 330031.
