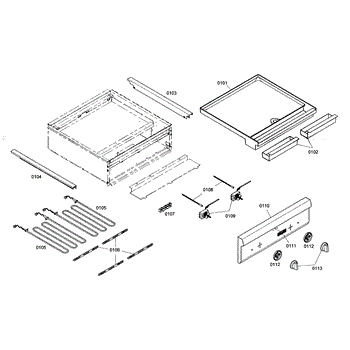

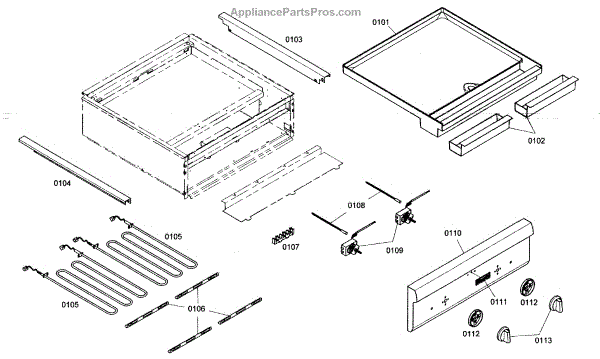

Parts for Thermador PCD24EE01: Cooktop Parts

The Heater Element Range is an OEM component for Bosch electric ranges. It is responsible for generating precise heat to cook foods and bake consistently.

Causes of a bad element range include scaling or mineral deposits from repeated cleanings that interfere with heat transfer. Broken coils from rough handling can also disrupt heat output.

Symptoms of a bad heater element range include:

• Long preheat times unable to reach desired heat
• Burnt exteriors but raw interiors when baking
• Disabled or reluctant-to-heat oven and broiler functions
• Hot and cold spots causing inconsistent results

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

• Inconsistent power supply to the oven
• Non-functional heating elements
• Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This display is the user interface module that shows cycle status, settings and error indicators so you can read and control the appliance from the front panel. It restores visible feedback and menu information for normal operation. What it does

• Provides the visible display for cycle progress, timers and selected options
• Shows error codes and status messages to help identify issues
• Works with the appliance control board to update settings and user inputs
• Restores readable display after a failed or cracked panel

• Disconnect power to the appliance before starting work to avoid shock or damage
• Replacement typically requires removal of the front control or console panel; handle the display lens and ribbon connectors carefully
• Keep screws and small fasteners organized for reassembly

This cable harness is the factory wiring connector assembly that links control and appliance components, restoring reliable electrical connections and restoring normal operation of affected circuits. What it does

• Routes and connects power/signal wires between control board and component(s).
• Replaces damaged or corroded wiring that can cause intermittent operation or component failure.
• Restores proper electrical continuity to address symptoms like controls not responding, intermittent cycles, or error codes tied to wiring.
• Secures connectors and wires in the correct positions to prevent shorting or rubbing.

• One cable harness assembly as shown.

• Disconnect power to the appliance before beginning any repair.
• Handle connectors carefully and seat plugs fully; match keyed connectors to prevent mis-wiring.
• Inspect adjacent wiring and mounting clips; replace or secure any damaged parts during installation.
