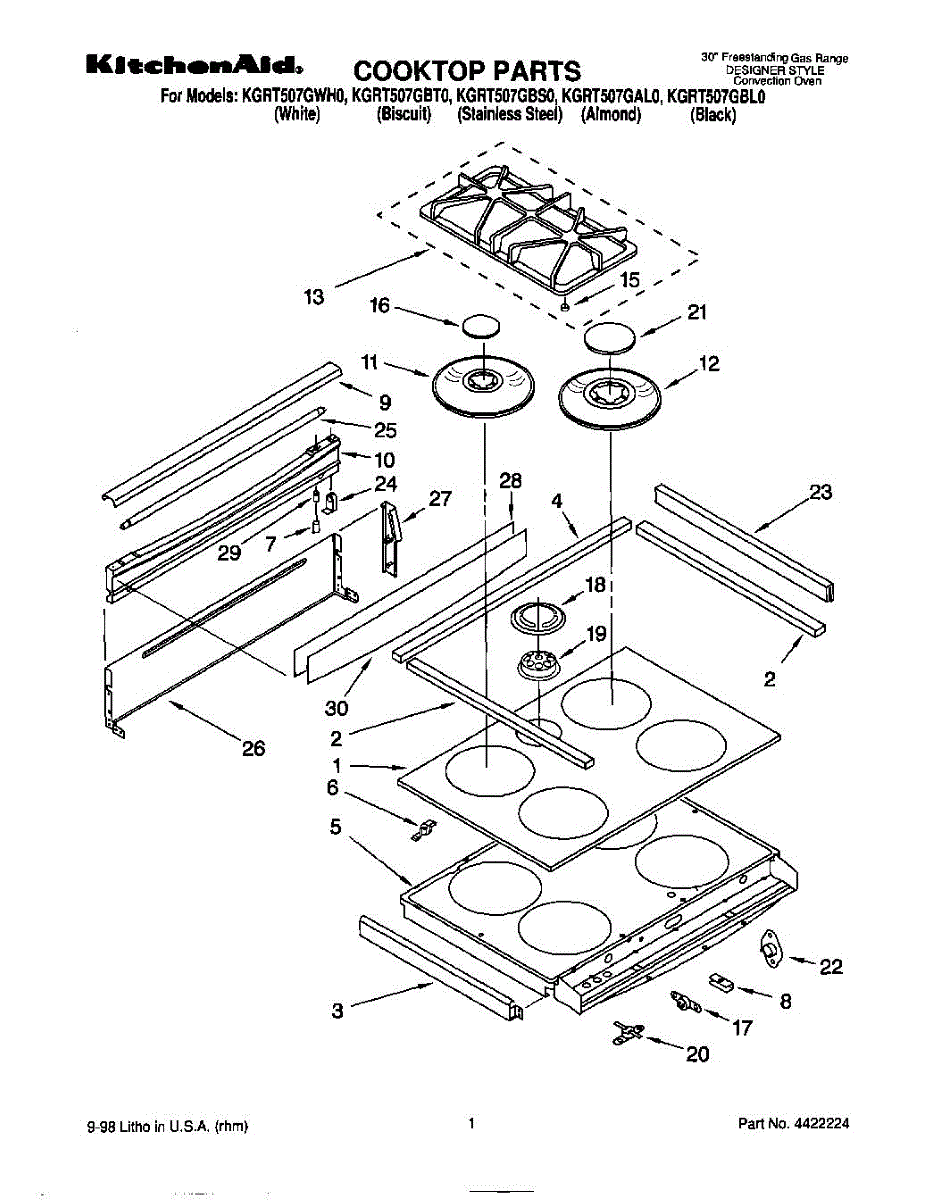

Parts for Kitchenaid KGRT507GBS0: 01 - Cooktop Parts

This cooktop gasket seals the gap between the cooktop and countertop to help prevent spills and moisture from entering the cabinet while restoring a secure fit and finished appearance. Ideal when the original edge seal is worn or missing. What it does:

• Seals the cooktop edge to keep liquids and crumbs from getting under the appliance — symptoms: visible gaps, pooling liquids, or debris under the cooktop.
• Cushions and stabilizes the cooktop to reduce vibration and rattling during use — symptoms: shifting or noisy cooktop.
• Protects countertop and cabinetry from heat, spills, and food buildup that can cause staining or damage — symptoms: discolored or damaged counter edges.
• Restores fit and finish for a clean, professional appearance — symptoms: loose or uneven cooktop edges.

• Disconnect power (and gas, if applicable) and allow the cooktop to cool before starting work.
• Remove the old gasket and thoroughly clean and dry the mating surfaces before installing the new gasket.
• Press the new gasket into place along the cooktop edge; trim excess material as needed without overstretching.

Color: White.

Color: Black.

Color: Biscuit.

Color: White.

Color: Black.

Color: Biscuit.

This part has been discontinued by the manufacturer and is no longer available.

Size: 10-16 x 3/8 inch.

Fluorescent light bulb starter holder.

Color: Biscuit. Other colors: For black use 9751632, for white use 9751327.

Color: Black. Other colors: For biscuit use 9753320, for white use 9751327.

Color: White. Other colors: For biscuit use 9753320, for black use 9751632.

Size: 10-16 x 3/8 inch.

The Foot Pad Kit for Whirlpool ranges is an OEM part specifically designed to fit underneath the grates. These small but critical components provide cushioning and stability for the grates, preventing them from scratching the cooktop surface and reducing noise and movement during cooking.

Symptoms of worn or missing Foot Pads include:

• Grates that wobble or shift during use
• Increased noise, such as rattling or scraping, when moving pots and pans
• Scratches or other damage to the cooktop surface beneath the grates
• Uneven cooking surfaces which can affect the stability of cookware

Causes of degradation in foot pads can include high heat exposure, frequent cleaning that wears down the material, or the natural breakdown of rubber or silicone over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 10-16 x 3/8 inch.

Color: White.

Color: Black.

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

This part has been discontinued by the manufacturer and is no longer available.

Size: 26 inches long. F18t8/cw/k26.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Color: White.

Color: Clear for stainless steel model.

Fluorescent light bulb starter. 22W. FS-25.
