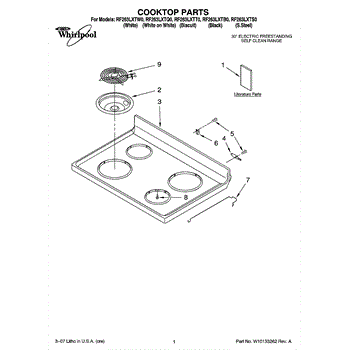

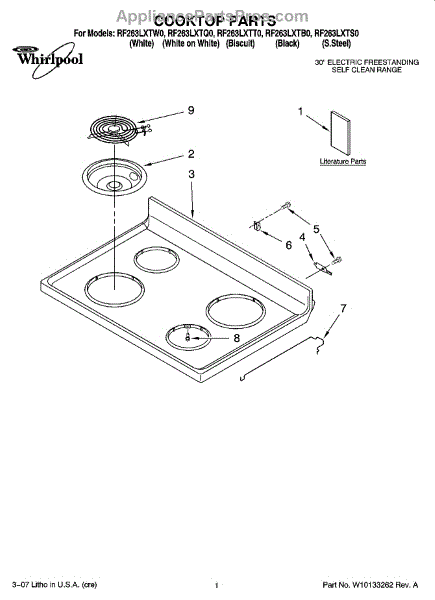

Parts for Whirlpool RF263LXTB0: 01 - Cooktop Parts

The Stove Top Drip Pan is an OEM replacement part for Whirlpool gas and electric ranges. It is located underneath the stove burners and grates to catch and contain grease drippings and spills. Over time, grease and cooking residue buildup can cause drip pans to crack, warp or corrode.

Symptoms of a bad stove top drip pan include:

• Grease spillovers outside of the drip pan area
• Flames or heating elements obstructed by built-up debris
• Warping or cracking of the pan surface
• Difficulty removing or cleaning the drip pan

Causes can be normal wear from heat and long-term grease exposure. Accidental damage during cleaning is also possible.

 This OEM part is also compatible with Maytag, Jenn-Air, Amana and some Kenmore models.

The Drip Pan (LG) is an OEM replacement part for Whirlpool ranges and ovens. It is a durable metal tray designed to catch any spills, drips, or boil-overs that may occur during the cooking process, helping to keep the oven cavity clean and preventing potential messes or smoke from burnt-on spills.

Symptoms of needing to replace the drip pan include:

• Warping or discoloration from excessive heat exposure
• Cracks or breaks in the pan material
• Difficulty sliding the pan in and out of its designated position

Causes of a drip pan failure can include general wear and tear from repeated use and high temperatures, physical damage from impact or abrasion, or corrosion or deterioration due to exposure to acidic food spills or cleaning agents.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For 6-inch drip bowl order W10196406RW

Color: White.

This black cooktop is the finished cooking surface that sits over the cooktop opening, providing a flat, easy-to-clean area and a finished look for the range. Replacing a damaged cooktop restores appearance and safe operation. What it does:

• Provides the primary cooking surface and mounting area for burners or heating elements
• Covers and protects internal components under the cooktop from spills and debris
• Restores the appliance's finished appearance when the original top is cracked, chipped, or cosmetically damaged
• Helps maintain even placement of grates, burners, or elements for proper cooking

• One replacement cooktop (black) as shown

• Disconnect power (and gas, if applicable) before beginning any repair
• Handle the cooktop carefully to avoid scratching or chipping the finish
• Installation typically requires removing grates, burners/elements, and control panel access; follow the appliance service manual

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This cooktop support rod props the range top open during cleaning or service, preventing accidental slams. Replace a bent or missing rod to keep the cooktop safely supported while you access surface components.

• Supports the lift-up cooktop in the open position
• Helps prevent the cooktop from dropping unexpectedly
• Provides safer access to burners, igniters, and valves for cleaning or repair
• Common signs of failure: top won't stay up, rod is bent, loose, or missing

• Disconnect power and shut off gas; allow the appliance to cool completely
• Lift and support the cooktop; note the rod's orientation and pivot points
• Disengage the old rod from its brackets and install the replacement securely
• The rod holds the cooktop open before closing

This is a ground-wire screw used to attach a grounding conductor to the appliance chassis, ensuring a reliable electrical ground and safer operation. It matches the common 8-32 machine screw thread used on many Whirlpool appliances. What it does:

• Secures the ground wire to the appliance cabinet or grounding point
• Restores or maintains a continuous equipment ground for safe operation
• Helps prevent electrical shock and fault conditions when properly installed
• Fits locations that accept an 8-32 threaded screw for grounding

• One ground-wire screw

• Disconnect power before accessing electrical components or performing service
• Use the correct Phillips driver or nut-driver sized for 8-32 screws to avoid stripping
• Tighten until snug—do not over-torque; ensure the grounding conductor is under the screw head or terminal as intended
• If corrosion or damaged threads are present, clean or replace the mating hardware to ensure a secure ground

The 8 Inch Large Surface Element is an OEM part for Whirlpool cooktops and ranges, designed to provide reliable and consistent heat for cooking. This large surface element is crucial for performing a wide range of cooking tasks, from boiling water to frying and sautéing.  For matching 6 inch element order WP660532.

The primary reasons for replacing the 8 Inch Large Surface Element often involve wear and tear from regular use, physical damage, or electrical issues within the element itself.

Symptoms indicating the need for a replacement 8 Inch Large Surface Element include:

• The element not heating up, indicating a failure to provide the necessary cooking temperature
• Uneven heating, resulting in inconsistent cooking results
• Visible damage to the element, such as blistering, peeling, or cracking
• The element heating slowly or not maintaining the desired temperature during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The 6 Inch Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This component is essential for providing consistent, controlled heat to cookware on the stovetop.

Symptoms of a bad 6 Inch Small Surface Element include:

• Lack of heat production, with the element failing to warm up at all.
• Inconsistent heating, where the element may fluctuate in temperature or only partially heat.
• Visible damage such as blistering, bubbling, or cracks on the element's surface.
• A tripped circuit breaker when the element is turned on, indicating a short.

Causes of a bad surface element can include prolonged use leading to element burnout, electrical faults such as faulty wiring or internal failures, and physical damage from impact or heavy cookware being dropped on the element.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

8-inch element is part number WP660533.
