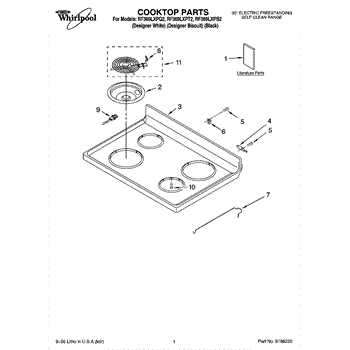

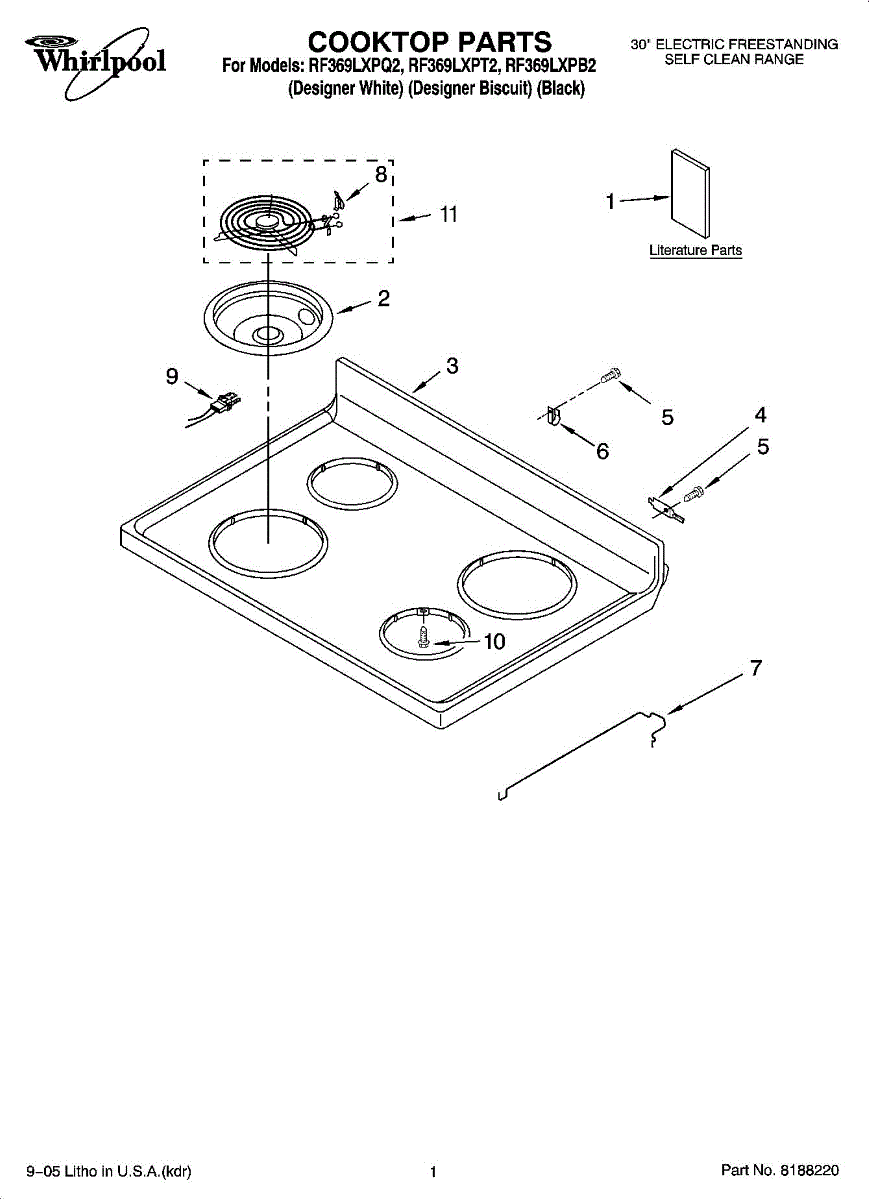

Parts for Whirlpool RF369LXPB2: 01 - Cooktop Parts

Replace your worn, stained, or damaged 8-inch range drip bowl. This espresso-colored pan sits beneath the burner to catch spills and protect your cooktop.

Removable drip pan installs beneath range burners to catch spills and food debris. Replace when cracked, warped, or heavily stained for a cleaner cooktop.

Drip pan installs beneath burner elements to catch spills and crumbs. Replace if cracked, rusted, stained, or worn. Keeps your stovetop clean.

White metal main top panel for electric ranges. Replaces cracked, chipped, or discolored cooktop surface. Includes burner openings and trim area.

Black metal cooktop surface that sits over the range opening. Replace when cracked, chipped, warped, or discolored to restore a clean, finished look.

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Metal support rod that props your range cooktop open during cleaning or repairs. Replace if bent, broken, or missing to safely hold the lift-up top in place.

Replace missing or worn element clips if your range burner shifts, sags, or won't stay positioned. This spring clip secures the heating element to its bracket.

Fix a burner that won't heat or has a charred connection. Burner receptacle replacement requires wire cutting, stripping, and splicing—about 30 minutes.

Ground wire screw secures grounding conductor to range chassis for electrical safety. Simple 5-minute repair with basic tools. Fits most models.

Replace a burner that won't heat or heats unevenly. This 8-inch surface element restores proper cooking temperature. Easy DIY repair in minutes.

Burner won't heat or heats unevenly? This 6 inch surface element restores consistent cooking temperatures. Simple plug-in replacement takes minutes.
