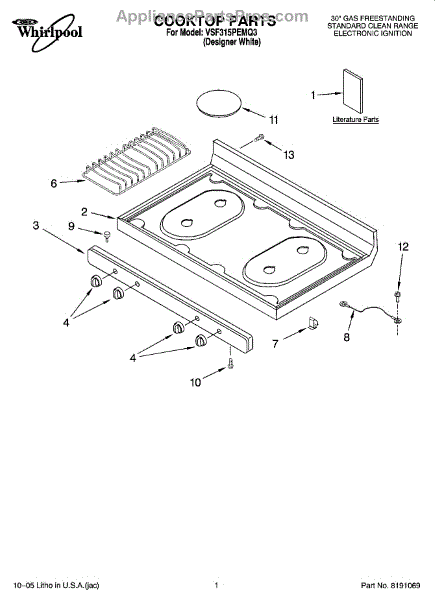

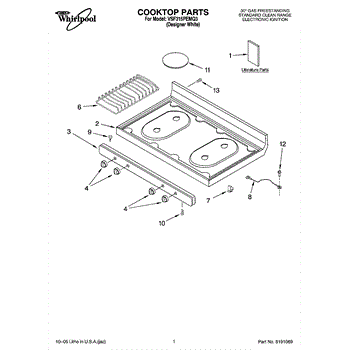

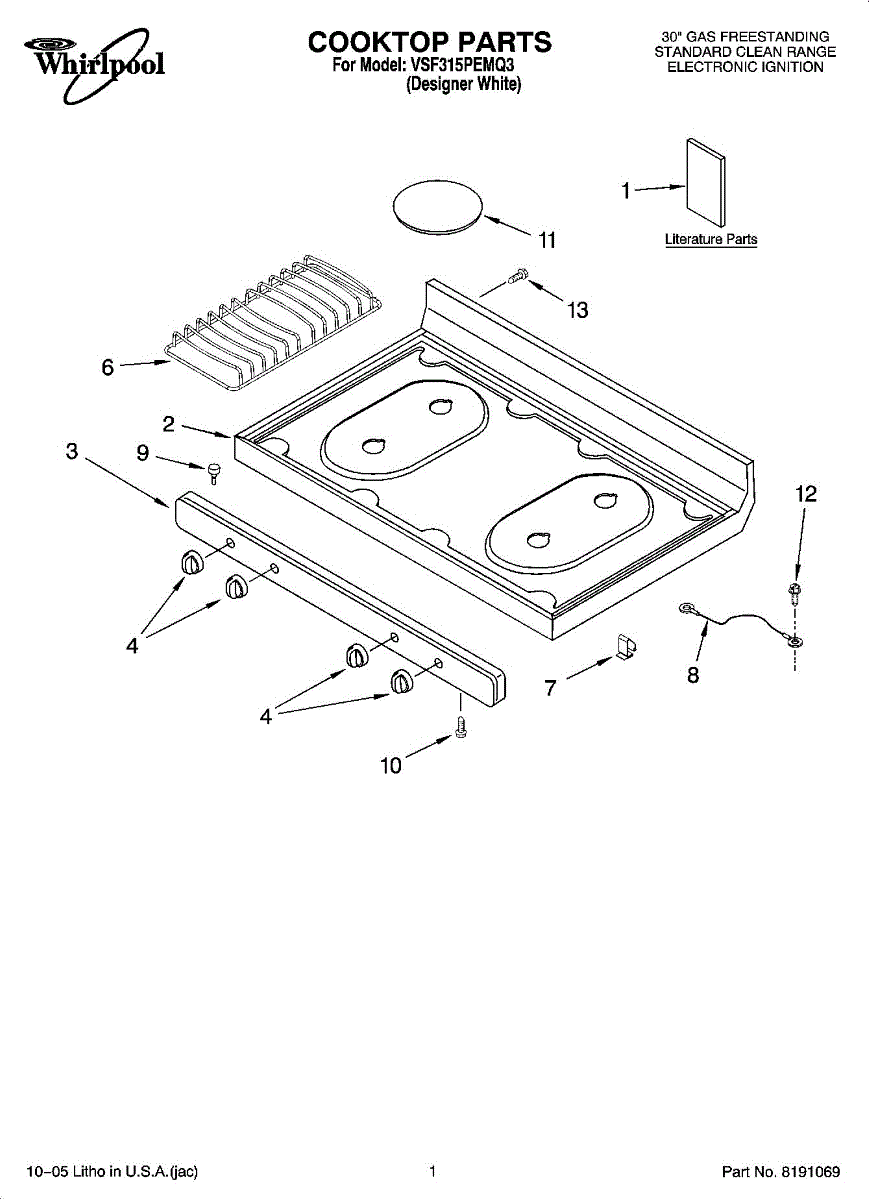

Parts for Whirlpool VSF315PEMQ3: 01 - Cooktop Parts

Color: White. This knob measures about 2 inches in diameter. For black use WP98006100. For biscuit use WP98008208. Sold individually.

Color: Black. Includes two double grates.

The Clip is an OEM component specifically designed for Whirlpool ranges. This clip plays a role in securely holding and mounting components within the appliance.

The clip is designed to securely grip parts in place, preventing unwanted movement or dislodging that could impact the operation or result in damage. It allows for components to be effortlessly installed while remaining firmly affixed.

Causes of a bad clip can include wear and tear over time, damage due to excessive force or impact, or deterioration from heat exposure.

Symptoms of a bad clip include:

• Loose or detached components inside the appliance
• Increased vibration or unwanted noise during operation
• Components that are not sitting securely or properly installed
• Difficulty accessing or removing parts that rely on the clip

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This ground wire provides a safe chassis connection to restore proper grounding and reduce shock and electrical-fault risk. It replaces a frayed, corroded or missing ground lead to help keep the appliance electrically safe. What it does

• Connects the appliance chassis to the grounding system to prevent stray voltage on metal surfaces
• Restores a secure ground path if the original wire is broken, loose, or corroded
• Helps stop intermittent power faults or nuisance tripping caused by a compromised ground
• Addresses symptoms like visible wire damage, loose ground connection points, or grounding-related electrical issues

• One ground wire

• Always disconnect power (unplug or shut off the circuit breaker) before starting work
• Attach the ring/terminal ends to the designated chassis ground screw and the equipment ground point
• Route the wire away from moving parts, heating elements, and sharp edges; secure with existing clips or fasteners
• If terminal hardware is missing or damaged, replace with equivalent OEM-style fasteners and torque to specification

This bumper is a small cushioning stop used at contact points on the appliance. It absorbs impact and prevents metal-to-metal contact to reduce noise and protect surfaces when doors, drawers, lids, or racks close.

• Cushions closing to soften impact and protect finishes
• Serves as a stop to maintain proper spacing at the contact point
• Helps reduce slamming, squeaks, and rattles
• Replace if cracked, flattened, missing, or if new clunking noises occur when closing

• Disconnect power (and shut off water/gas if applicable) before servicing
• Note the bumper's original location and orientation
• Remove the old bumper and clean the mounting area or hole
• Press the new bumper fully into place and verify a secure fit and proper clearance

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This black standard burner cap sits atop a gas burner to shape the flame and shield the burner head from spills. Replacing a worn or missing cap helps restore smooth ignition and consistent, even heating.

• Covers the burner head to properly shape and distribute the flame
• Helps protect the burner from spills, drafts, and soot buildup
• Supports reliable ignition when correctly centered on the burner
• Common symptoms: uneven or yellow flame, delayed ignition or continuous clicking, blackened cookware, visible chips/warping on the cap

• Disconnect power and shut off gas; allow the cooktop and grates to cool completely
• Lift off the old cap and clean the burner head; ensure ports and orifice are clear
• Place the new cap on the correct burner position; it should sit level and not rock
• Light the burner and check flame shape; realign the cap if the flame is uneven

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

This genuine ground screw secures appliance grounding connections to the chassis, helping maintain electrical safety and reliable grounding. It's a direct-fit fastener used where a secure ground point is required. What it does:

• Provides a secure chassis grounding point for appliance electrical safety
• Secures ground wires or grounding straps to sheet metal or grounding posts
• Helps prevent loose ground connections that can cause intermittent faults or safety risks
• Matches OEM thread and length for correct fit and electrical contact

• Use appropriate tools; avoid stripping the head or over-tightening which can damage threads or the grounding surface
• Ensure the mating surfaces are clean and free of paint or corrosion for good electrical contact
• Disconnect power to the appliance before servicing electrical grounding connections
