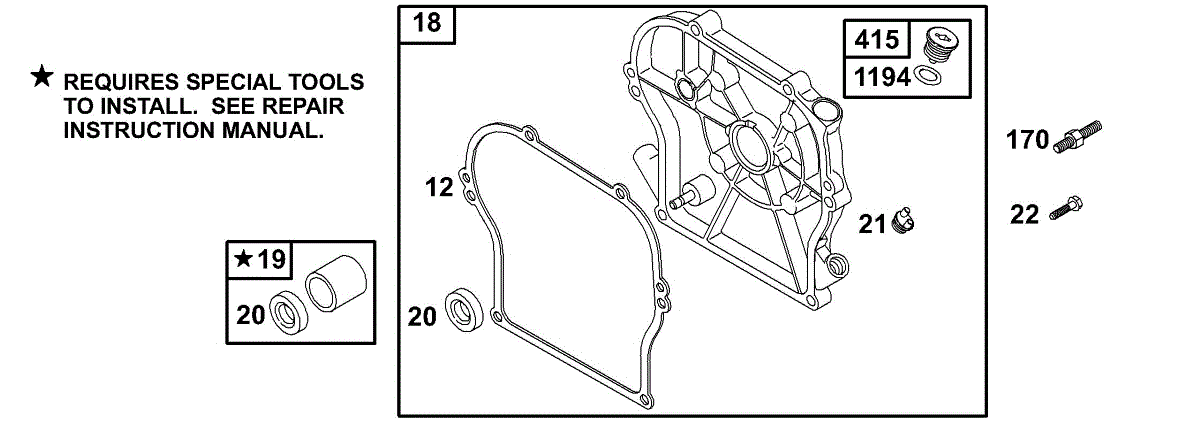

Parts for Briggs & Stratton 137202-1117-E1: Crankcase Cover / Sump Parts

The replacement crankcase gasket seen here is for use with many different types of lawn and garden equipment. The purpose of the crankcase gasket is to fit between the crankcase and the crankcase cover. It helps to make sure that there are no oil leaks that could cause issues with the engine or make a mess when the machine is being stored. Owners should check on the gaskets when they are performing maintenance on their machines. Over time, the gaskets can start to crack or dry out. When this happens, it means that a leak is likely going to occur if it hasn't already. Owners will want to replace these gaskets regularly to ensure they do not have leaks. This is a genuine OEM replacement crankcase gasket that is sold individually. The durable gasket will work for models of many types of machines including lawn mowers, tillers, leaf blowers, generators, wood chippers, log splitters, and certain other small engines. Compatible brands include Briggs & Stratton, Craftsman, Toro, Simplicity, and Cub Cadet.

This crankcase gasket is a replacement part for lawn and garden equipment. It's made to keep the crank from being exposed to the elements and protected from oil and other hazards. This part is located between the crankcase cover and the engine block and is made of a waterproof material that fits the engine block. There are also holes in the component where the crankcase bolts go. If the lawn mower is using a large amount of oil or there is an oil leak noticed, this is an indication that the crankcase gasket needs to be replaced. The original gasket should be peeled off and the new replacement part should be placed against the engine block. Put back on the crankcase cover, tighten the bolts, and ensure the gasket is sealed in place. At this point, oil can be added back to the engine. This is a genuine OEM replacement part that can be used with Briggs & Stratton, Simplicity, Craftsman, Cub Cadet, and Toro lawn mowers, wood chippers, tillers, log splitters, leaf blowers, and generators. Installing the crankcase gasket will require a nut drive, screwdriver, wrench set, and socket set. This original replacement part is sold individually.

This high-quality replacement oil seal prevents oil from leaking where the camshaft exits the crankcase. The camshaft is made of many rotating metal pieces, and while the engine is running, it creates a stupendous amount of thrashing. To keep these parts from rubbing together and overheating, the camshaft needs a good amount of oil. This oil seal helps maintain the right balance of oil in the camshaft. Oil seals can degrade over time after having hot oil repeatedly splashed on them. The most common problem with an oil seal is that it has shrunk or warped and will no longer make a true seal. When this happens, the oil will leak from the engine and the camshaft will begin to overheat. The difficulty of this repair will depend on the lawn appliance that needs repair, but expect to remove the camshaft in order to replace the seal. This part is compatible with engines made by Toro, Lawn Boy, and Briggs & Stratton. It comes sourced from its original manufacturer and ships individually.

This is a genuine replacement oil fill cap that is found on many lawn and garden engines. The oil fill cap is responsible for securing the oil dipstick and fill tube. This small plastic plug screws into the oil fill tube with plastic threads and secures the oil, keeping it from leaking and providing the appropriate engine pressure. Over time, this small plastic piece can become worn, corroded, damaged, or even lost, which will require a full replacement. Without an oil fill cap, the pressure cannot be maintained in the engine and the oil could spill out of the machine. This genuine OEM oil fill cap is manufactured by Briggs & Stratton to exact standards. It is compatible with engines and equipment from this brand, as well as those from Toro, Snapper, and Vanguard. The oil fill cap is sold as an individual part and does not include the dipstick or any other parts and accessories. It is a good idea to inspect caps and other elements when performing maintenance to ensure proper operation. When replacing the filler cap, no tools are required, but the engine should be cool before doing any kind of work.
