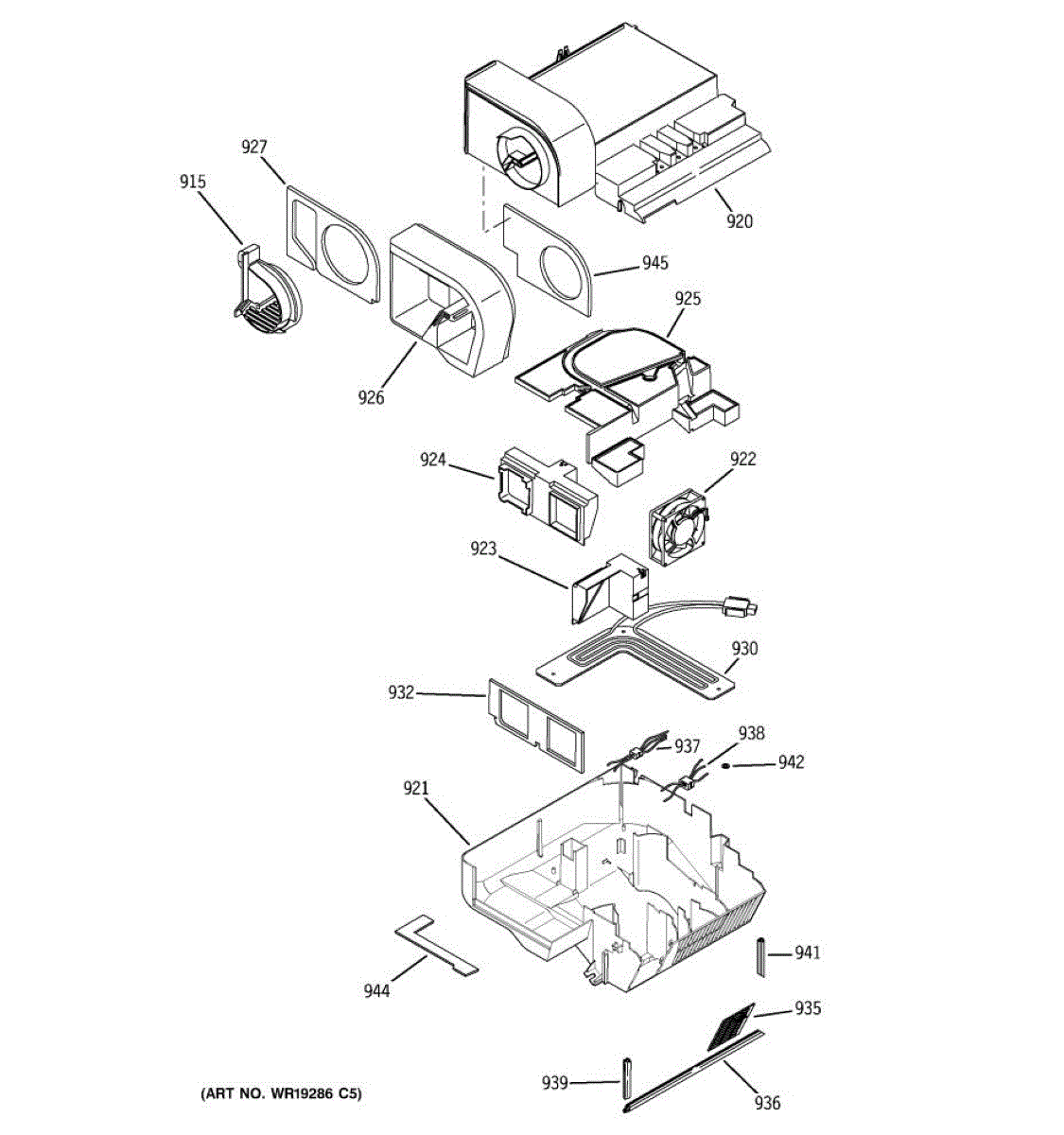

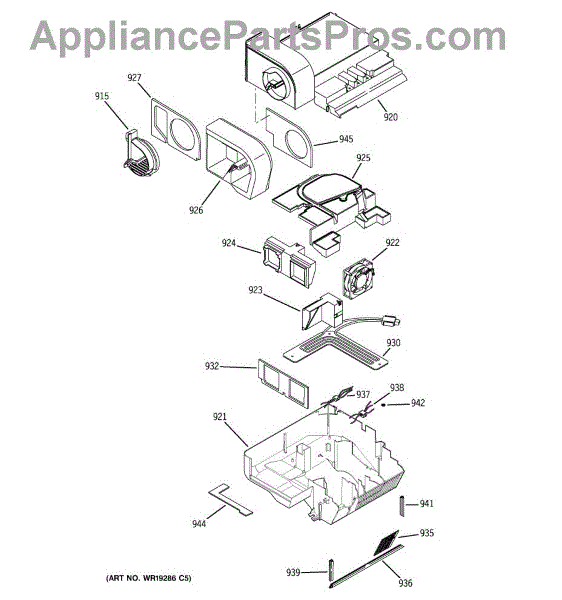

Parts for Ge PCG23NJMHFBB: 10 - Custom Cool Parts

This in-line water filtration system reduces water contaminants and improves taste of drinking water and ice. Reduces the taste and odor of chlorine through high quality carbon block media without removing minerals beneficial to your health. The filter should be replaced every six months or 300 galleons for best performance. The Quick Connect feature makes filter replacement fast and easy. Flow rate: 0.5 gpm/1.9 lpm. 1/4" quick connect fittings on both ends.

This fan and pre-wired harness assembly drives airflow to the Quick Chill/CustomCool drawer so foods and beverages chill faster and hold the set temperature. Replace a noisy, non-running, or intermittent fan to restore proper drawer cooling.

• Circulates cold air into the Quick Chill/CustomCool/deli drawer for targeted cooling
• Helps correct no-chill or slow-chill performance in the drawer
• Addresses symptoms like no airflow, intermittent operation, or grinding/buzzing noises from the drawer area
• Replaces a failed fan motor or damaged wiring harness in this assembly

• Disconnect power before servicing; remove the drawer and covers to access the assembly
• Note wire routing and connector locations; transfer any original mounting hardware as needed
• Seat connectors fully and route harness away from moving parts to avoid pinching
• Restore power and verify the fan runs and airflow is present to the drawer

This air damper assembly regulates the flow of cold air from the freezer into the refrigerator compartment to keep temperatures even. Replace a stuck or broken damper to restore proper cooling and prevent warm spots or food freezing.

• Controls and meters airflow from the freezer to the fresh food section
• Opens and closes in response to temperature control signals to maintain set temperatures
• Helps balance cooling across shelves and drawers for consistent performance
• Failure symptoms include: refrigerator too warm, items freezing in the fresh food section, temperature swings, or clicking/buzzing from the damper area

• Disconnect power before servicing; remove food and shelves to access the damper area
• Remove the damper cover/grille; take out mounting screws or clips and withdraw the assembly
• Position the new assembly squarely in the air channel; reconnect any harness and reinstall covers
• Restore power and allow the refrigerator to stabilize before final temperature checks

The air damper assembly regulates the flow of cold air from the freezer into the fresh food compartment. A new damper restores balanced airflow for steady refrigerator temperatures—helping prevent warm spots or unwanted freezing of items.

• Controls and meters cold-air supply from the freezer to the refrigerator section
• Helps maintain even, consistent temperatures across shelves and drawers
• A stuck or worn damper may cause a warm refrigerator section while the freezer stays cold
• If stuck open, may lead to freezing near the air outlet and noticeable temperature swings
• Failing dampers can produce repetitive clicking or grinding noises from the damper area

• Unplug the refrigerator before servicing
• Access from the fresh food compartment; remove shelves and the diffuser/cover to reach the damper
• Note screw locations and wiring; handle seals and air passages carefully to prevent leaks
• After installation, verify the damper door moves freely and the cover seats properly; allow up to 24 hours for temperatures to stabilize

This mullion duct gasket seals the vertical door/mullion area to help keep cold air inside the refrigerator and reduce condensation. It replaces a worn or damaged gasket to improve seal performance and reduce moisture buildup. What it does:

• Seals the mullion/duct area between doors to help maintain proper temperature and reduce warm air infiltration
• Helps prevent condensation and frost build-up along the door mullion
• Restores the door seal where gaps or deterioration allow air leaks
• Works with original mullion/duct trim to maintain proper airflow paths

• 1 mullion duct gasket

• Designed to fit into the mullion/duct channel; remove old gasket and press new gasket into place
• Handle gently to avoid stretching or tearing the gasket during installation
• Clean the mounting channel before installing to ensure a full contact seal
• Disconnect power or follow appliance safety guidelines before servicing doors/mullion area

This AHU Chill seal is a replacement gasket designed to help maintain proper temperature control and airflow in the chilled compartment. It restores a tight seal to reduce warm-air leaks and help the appliance run more efficiently. What it does:

• Replaces a worn or damaged chill compartment gasket to restore an airtight seal
• Reduces warm air infiltration that can cause frosting or inconsistent temperatures
• Helps the cooling system maintain set temperatures and reduces run time caused by leaks
• Fits where the AHU/chill compartment requires a dedicated perimeter seal

• One AHU Chill seal (gasket) as shown

• Remove old gasket and clean mating surfaces before installing the new seal
• Press the gasket into the channel evenly; avoid stretching or twisting the seal
• Check the seal for uniform contact and adjust as needed; replace damaged retainers if present

This door gasket seals the refrigerator compartment to help maintain proper temperature and energy efficiency. It replaces a worn or damaged seal so cold air stays inside and warm, humid air stays out. What it does:

• Creates an airtight seal around the refrigerator door to reduce temperature fluctuations
• Helps prevent frost build-up and condensation by keeping warm air from entering
• Supports consistent cooling performance and helps reduce energy use
• Commonly replaced when the seal is cracked, torn, flattened, or no longer closes tightly

• Designed for direct replacement; fit by comparing part to the existing gasket before installation
• Clean the door flange and remove old gasket adhesive/residue for best seal
• Work slowly around corners to seat the gasket evenly; heat (hair dryer) may help soften stiffer gaskets for fitting
• Disconnect power if required by your model before performing any repairs and follow all safety instructions in your appliance manual
