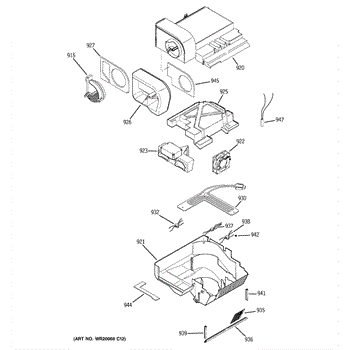

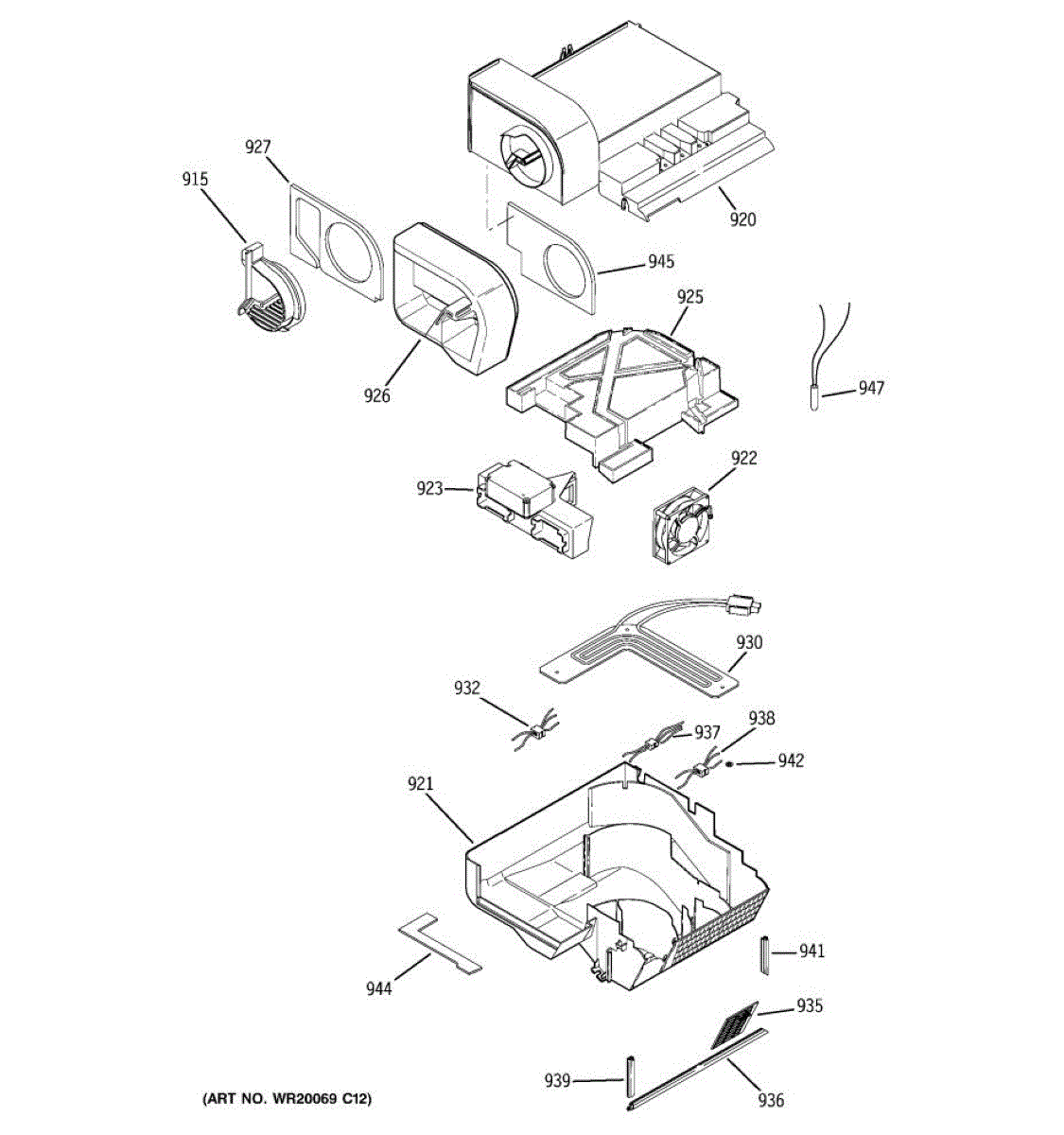

Parts for Ge PIE23VGXAFSV: 10 - Custom Cool Parts

This fan and pre-wired harness assembly drives airflow to the Quick Chill/CustomCool drawer so foods and beverages chill faster and hold the set temperature. Replace a noisy, non-running, or intermittent fan to restore proper drawer cooling.

• Circulates cold air into the Quick Chill/CustomCool/deli drawer for targeted cooling
• Helps correct no-chill or slow-chill performance in the drawer
• Addresses symptoms like no airflow, intermittent operation, or grinding/buzzing noises from the drawer area
• Replaces a failed fan motor or damaged wiring harness in this assembly

• Disconnect power before servicing; remove the drawer and covers to access the assembly
• Note wire routing and connector locations; transfer any original mounting hardware as needed
• Seat connectors fully and route harness away from moving parts to avoid pinching
• Restore power and verify the fan runs and airflow is present to the drawer

This damper assembly controls airflow between refrigerator compartments to help maintain even temperatures. Replaces a failed or stuck damper to restore proper air distribution and temperature balance. What it does

• Regulates cold air flow from the freezer to the fresh food section.
• Opens and closes in response to the refrigerator's temperature control / user settings.
• Commonly used when fridge temperature is too warm, too cold, or fluctuates between compartments.
• Helps reduce uneven cooling and prevents overworking the compressor when functioning correctly.

• One damper assembly.

• Disconnect power to the appliance before starting any repair.
• Handle the damper linkage and plastic parts carefully to avoid breakage.
• Verify electrical connectors are fully seated and routing does not block damper movement.

This mullion duct gasket seals the vertical door/mullion area to help keep cold air inside the refrigerator and reduce condensation. It replaces a worn or damaged gasket to improve seal performance and reduce moisture buildup. What it does:

• Seals the mullion/duct area between doors to help maintain proper temperature and reduce warm air infiltration
• Helps prevent condensation and frost build-up along the door mullion
• Restores the door seal where gaps or deterioration allow air leaks
• Works with original mullion/duct trim to maintain proper airflow paths

• 1 mullion duct gasket

• Designed to fit into the mullion/duct channel; remove old gasket and press new gasket into place
• Handle gently to avoid stretching or tearing the gasket during installation
• Clean the mounting channel before installing to ensure a full contact seal
• Disconnect power or follow appliance safety guidelines before servicing doors/mullion area

This AHU Chill seal is a replacement gasket designed to help maintain proper temperature control and airflow in the chilled compartment. It restores a tight seal to reduce warm-air leaks and help the appliance run more efficiently. What it does:

• Replaces a worn or damaged chill compartment gasket to restore an airtight seal
• Reduces warm air infiltration that can cause frosting or inconsistent temperatures
• Helps the cooling system maintain set temperatures and reduces run time caused by leaks
• Fits where the AHU/chill compartment requires a dedicated perimeter seal

• One AHU Chill seal (gasket) as shown

• Remove old gasket and clean mating surfaces before installing the new seal
• Press the gasket into the channel evenly; avoid stretching or twisting the seal
• Check the seal for uniform contact and adjust as needed; replace damaged retainers if present

This door gasket seals the refrigerator compartment to help maintain proper temperature and energy efficiency. It replaces a worn or damaged seal so cold air stays inside and warm, humid air stays out. What it does:

• Creates an airtight seal around the refrigerator door to reduce temperature fluctuations
• Helps prevent frost build-up and condensation by keeping warm air from entering
• Supports consistent cooling performance and helps reduce energy use
• Commonly replaced when the seal is cracked, torn, flattened, or no longer closes tightly

• Designed for direct replacement; fit by comparing part to the existing gasket before installation
• Clean the door flange and remove old gasket adhesive/residue for best seal
• Work slowly around corners to seat the gasket evenly; heat (hair dryer) may help soften stiffer gaskets for fitting
• Disconnect power if required by your model before performing any repairs and follow all safety instructions in your appliance manual

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
