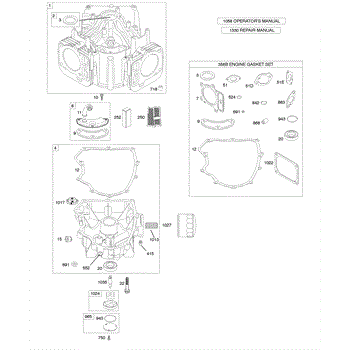

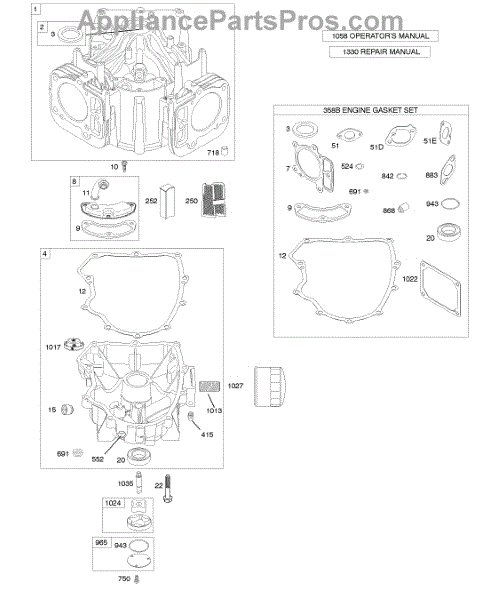

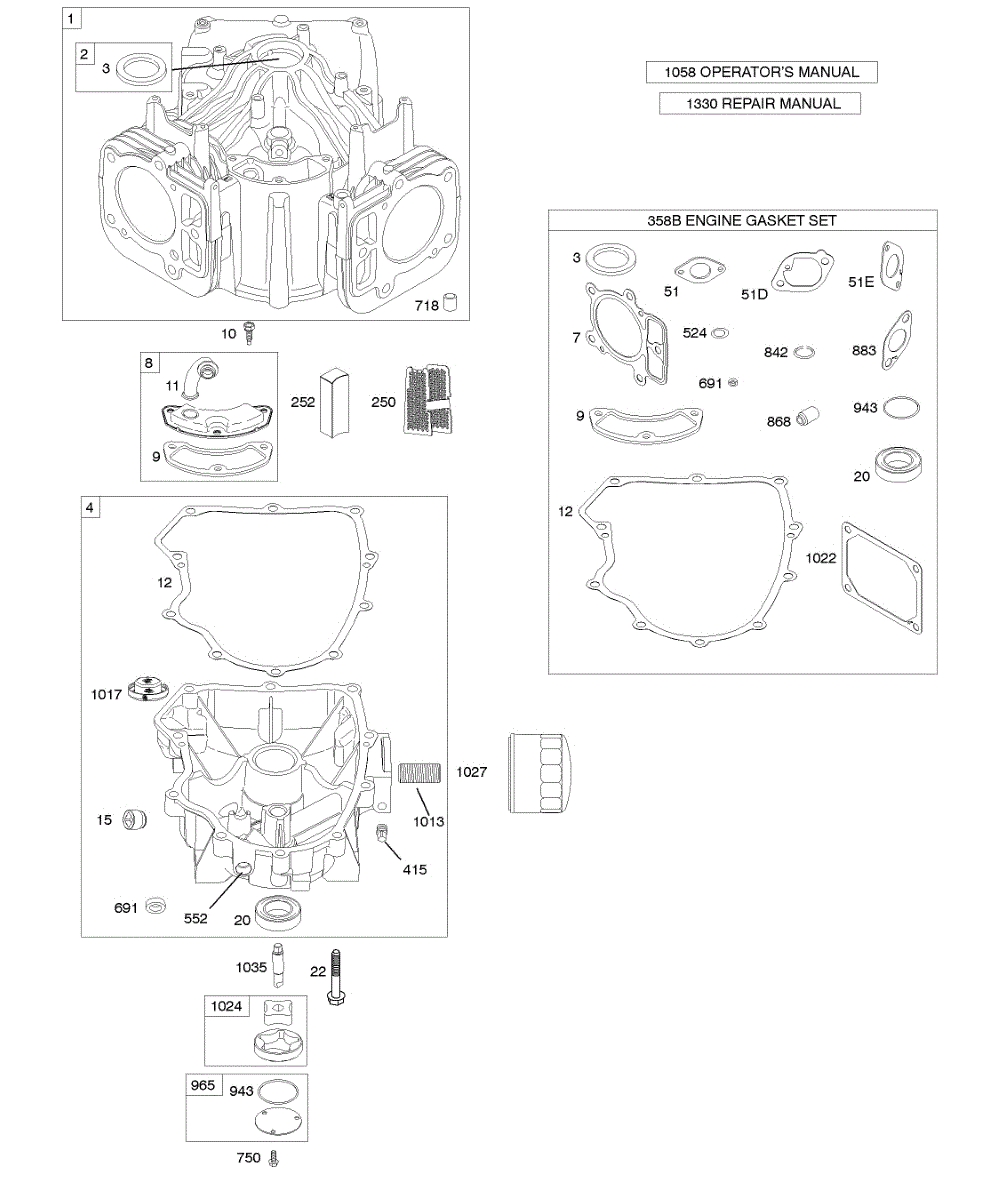

Parts for Briggs & Stratton 403677-0343-E1: Cylinder, Engine Sump, Gasket Set - Engine Parts

This oil seal is a genuine OEM replacement part designed for use on a wide variety of small gas-powered appliance engines. Although small, an oil seal is an important part of the oil cylinder assembly as it prevents oil from leaking into other parts of the engine. If oil begins to leak into the engine, it can corrode other parts or even pose a fire hazard. Therefore, it's important that the oil cylinder is tightly sealed to prevent any damage to the engine. Seals can wear out over time, especially if exposed to heat. Heat will cause the seal to shrink, effectively unsealing the oil cylinder. Before making this repair, be sure to drain the oil cylinder of any oil and be prepared for an involved replacement process. This part is compatible with Toro, Murray, and Briggs & Stratton appliances and is sourced from the original manufacturer. It ship individually of other hardware.

This cylinder head gasket is a genuine replacement part for select small engines. The cylinder head gasket is installed between the cylinder head and the engine block. It is responsible for creating a seal for the internal combustion engine to work properly and to help keep the oil and coolant separate as they travel between the cylinder head and the engine block. Gaskets are considered a maintenance part because their exposure to high heat and pressure cause wear, warping, and other damage over time. When a gasket is damaged, the seal is affected. Air could escape or the oil and coolant could mix, which would both produce bad results for the engine. This genuine OEM cylinder head gasket replacement is manufactured to exact standards by Briggs & Stratton. This part is compatible with select engines found in lawn and garden machines manufactured by Briggs & Stratton and Toro. The gasket is sold as an individual part and does not include any hardware or additional components. Be sure to allow the engine to cool and wear gloves when replacing gaskets. It is a good idea to replace gaskets when performing other engine repairs to ensure a proper seal when putting the engine back together.

Flange screws have a flange located near the top of the screw, which helps to distribute the connection force over a larger area to reduce potential damage to the machine. It also allows the screws to be used in oversized or irregular holes, and it helps to ensure they stay in place. This flange screw also has a hex top. Screws can last for a long time. However, they may become corroded or worn over time and need to be replaced. They could also become lost and need a replacement. Without all of the screws in the proper places in a machine, it could vibrate too much, which could render it less effective or unsafe to use. The flange screw is a genuine OEM part that can be used with many types of machines including lawn mowers, snowblowers, tillers, pressure washers, leaf blowers, generators, wood chippers, and other small engines. The screws are compatible with Briggs & Stratton, Craftsman, Toro, Cub Cadet, Murray, Lawn-Boy, Snapper, Simplicity, and MTD.

This O-ring seal is used in all sorts of lawn and garden equipment as a seal for the oil dipstick. It helps seal the system from debris and dirt that could otherwise reach the oil and end up in the motor. Over time, an O-ring will start to shrink, which can result in air and oil leaks and a poorly performing engine. If the O-ring has pits, blisters, or pocks on the surface, it will also need to be replaced.If an O-ring seal is worn, damaged, or clogged, it should be cleaned or replaced before the equipment that houses it is used again. A flat head screwdriver can be used to remove the damaged O-ring. Once the old one has been removed, a new one can be placed into the same position before using the tool.This O-ring seal is designed for lawnmowers, snowblowers, tillers, wood chippers, pressure washers, generators, and leaf blowers. It is compatible with equipment from Simplicity, Briggs & Stratton, MTD, Craftsman, Snapper, Toro, Lawn-Boy, and Cub Cadet. The seal is a genuine OEM replacement part directly sourced from the manufacturer. It comes with a single seal.

This replacement valve seal is a genuine OEM part for a lawn tractor or mower. The valve stem is a type of valve that transfers oil into the cylinder and then immediately reseals due to the pressure in the chamber. However, if the seal is damaged, it will not close and oil will leak into the cylinder. If this happens, the cylinder head may become overly lubricated and not run well. This seal helps prevent that from happening. It fastens to the intake valve and valve stem keeper. Seals will naturally wear out over time due to stress and exposure to corrosive oxidizing agents in an engine. When this happens, the valve will leak oil. To test if the valve seal is compromised, look for whitish-grey smoke that indicates burning oil and also measure to see how much oil the engine is consuming. If the seal is breached, use a screwdriver and socket wrench set to change out the part. This top of the line replacement valve seal is compatible with Briggs & Stratton, Toro, and Lawn Boy lawn tractors. It is sourced from the original manufacturer and ships individually.

This replacement exhaust gasket is a certified genuine OEM part for a lawn tractor engine. This gasket helps to seal off the exhaust from the carburetor. For an engine to run, it must first mix fuel with air to prepare the fuel for combustion. By sealing off the exhaust, this gasket allows for fresh air to enter into the carburetor from outside the engine rather than from the exhaust. Gaskets often degrade over time due to the stress of pressure and heat. If the exhaust gasket breaks its seal, it can affect the engine's overall performance. Be on the lookout for an especially noisy engine that doesn't provide as much power and is less fuel efficient. There may also be a noticeable burning smell coming from the engine. To replace the exhaust gasket, use a socket wrench and wrench set to remove the air filter and blower housings, then remove the exhaust manifold and switch out the gasket. This replacement exhaust gasket is compatible with engines made by Toro, Briggs & Stratton, Murray, Snapper, and Simplicity. It comes sourced directly from its original manufacturer and does not include any additional hardware.

This oil pump cover is a genuine Midwest Engine part, sold individually. This oil pump cover can be used as a replacement part for lawnmowers, snowblowers, wood chippers, and lawn tractors. It ensures that the oil pump can deliver oil to the engine without any excessive oil leakage. Symptoms of a damaged oil pump cover can include oil leakage in and around the cover, reduced oil pressure, and oil leakage in and around the intake manifold gasket. If any of these symptoms occur and are directly attributable to the oil pump cover, the part should be immediately replaced with this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This Oil pump cover is compatible with the following outdoor appliance brands: Midwest Engine, Briggs & Stratton, Toro, Simplicity, Cub Cadet, Lawn-Boy, and MTD.

This is the rocker cover gasket, which seals the cylinder head on small engines so that the engine doesn’t develop leaks. Periodically, a gasket may deteriorate with heavy use. To maintain good engine performance, the rocker cover gasket needs to be replaced with an OEM certified replacement. This type of gasket is most often found on lawn tractors. Replacing the original gasket with the new one is a simple and straightforward process. There are four bolts holding the valve cover in place. Simply remove them and the old gasket, which will likely have to be scraped to get it completely off the cylinder head. Place the new gasket exactly over the metal frame of the cylinder head—it should fit perfectly. Hold it in place with a small amount of RTV, a silicon sealer that is impermeable to oil and gasoline. Replace and tighten the four valve cover bolts. This part is made by Genuine Midwest Engine. This part is used in Briggs & Stratton engines and also used by Toro and Vanguard. This is an OEM part. It's also sold individually.

Oil filter for most Intek and Vanguard engines and selected L-head twin cylinder engines. It is recommended to replace the oil filter at least once per season.
