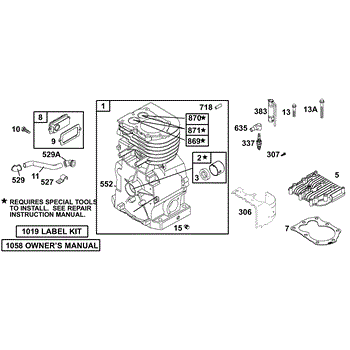

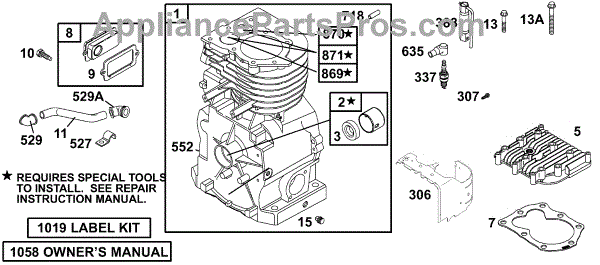

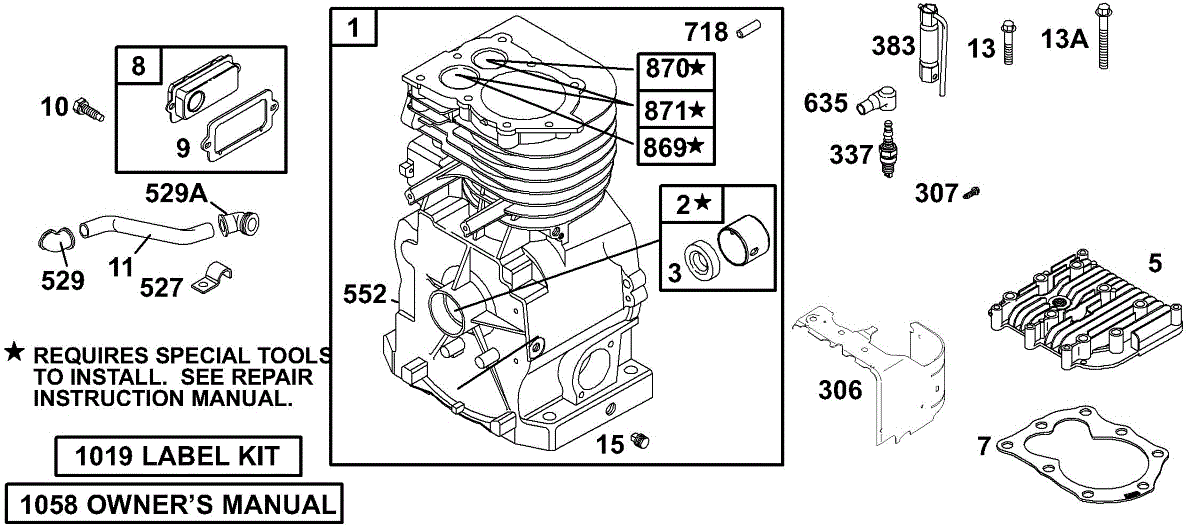

Parts for Briggs & Stratton 134202-1118-E1: Cylinder Group Parts

This oil seal is a common part engineered to work in engines that power generators, vacuum cleaners, snowblowers, leaf blowers, mowers, and other small engine applications. The seal sits between the crankcase and the crankshaft. It is designed as a barrier to prevent oil leakage and to stop contaminants from leaving the crankcase. When the gasoline engine exhibits diminished power, and especially if it begins to emit oily gray or bluish smoke, there is a good chance the oil seal needs to be replaced. In order to replace the faulty seal, begin by removing the starter housing and taking off the nut that holds the starter wheel to the main shaft. The user will find the old seal on this shaft. Remove it and install the new seal, pushing it into place with the edges of a socket, then tapping it securely into place with a hammer. When choosing a replacement seal, remember to use an OEM genuine replacement part that is guaranteed to match the specs for the original part. This will ensure a quality match and long replacement life. This seal is compatible with Toro, Lawn-Boy, and Briggs & Stratton engines.

This cylinder head gasket is a genuine Midwest Engine replacement part for outdoor appliances with small engines, such as lawn mowers, leaf blowers, vacuums, tillers, and snowblowers. The function of the cylinder head gasket, otherwise known simply as a head gasket, is to separate the cylinder head and the engine block inside an engine. Damage to the cylinder head gasket can occur naturally over time from overuse or general wear and tear. The primary symptom of damage will be the engine exhibiting less power than usual. To test whether it is the cylinder head gasket that is causing engine issues, one can perform a compression test and ascertain whether air is being let out from the head gasket. If that is the case, there might be damage to the cylinder head gasket, making this genuine OEM replacement part essential. Remember to always wear gloves when handling, repairing, and operating outdoor equipment.This cylinder head gasket is compatible with the following brands: Briggs and Stratton, Toro, Cub Cadet, and Simplicity. Part sold individually.

This genuine replacement breather gasket is designed specifically for use with select Briggs & Stratton engines found on lawn and garden equipment. The breather gasket is located in the breather assembly and designed to create an airtight seal. This gasket is subject to compression and high temperatures, which can cause deterioration over time. If the gasket becomes warped, deteriorated, or otherwise damaged, it will affect the seal and the engine performance. Gaskets are often considered a part of routine maintenance and should be inspected regularly for signs of damage. Replace worn gaskets immediately for optimal engine operation. This genuine OEM breather gasket is compatible with Briggs & Stratton and Toro machines that use engines that take this part. There are hundreds of models that use this gasket, including generators, blowers, and other small engines. This is made of composite materials and sold as a single unit. The gasket does not include any additional components or hardware. Always wear gloves and allow the engine to cool before performing any kind of repairs. Be sure to use the appropriate tools and replace gaskets gently to avoid damaging them in the replacement process.

This screw, manufactured by Briggs & Stratton, has multiple uses in small and medium sized gasoline powered engines, including generators, leaf blowers, lawn mowers, log splitters, chippers, tillers, pressure washers, and vacuums. Bolts of this design are used to secure engines and accessories to the body of the power tool. Manufactured with a smooth nozzle, these bolts are capable of withstanding four times the resistance of a regular hex bolt. For this reason, they are often used to secure the housing of moving parts, such as the cylinder head. Periodically, the wear and tear experienced by any engine will result in interior pieces needing to be replaced. In such cases it always a good idea to also replace the hardware that secures the various parts of the device together. Flange bolts and nuts should be replaced with genuine OEM parts such as this one, which is manufactured to meet the same specifications as the original. Occasionally, the high heat of the engine, coupled with extensive use, can cause a hex bolt such as this to freeze up. In such a case, a machinist is necessary to drill out the original bolt and retap the hole so the bolt can be used. This screw is compatible with equipment manufactured by Briggs & Stratton, Simplicity, MTD, Craftsman, Lawn Boy, Toro, Cub Cadet, and Murray.

The oil drain plug plays an important role in lawn and garden machines, although most only realize how important it is when it is not working properly. The plug fits into the oil drain at the bottom of the motor. It is removed to allow the oil to be drained from the motor when changing the oil. The durable oil drain plug may need to be replaced if it is no longer working properly. There could be leaks that allow the oil to escape from the motor, which would indicate it needs to be replaced. If the plug is lost, it will need to be replaced, as well. The genuine OEM replacement oil drain plug is sold individually. It is used for lawn mowers, snowblowers, tillers, leaf blowers, pressure washers, chainsaws, edgers, log splitters, wood chippers, heat pumps, generators, and other small engines. Compatible brands include Briggs & Stratton, Craftsman, Kenmore, Toro, Cub Cadet, Homelite, Murray, Lawn-Boy, Snapper, and Simplicity.

This is an authentic muffler deflector screw that is found in small engines for outdoor power equipment from Briggs & Stratton. This metal screw is designed to secure the muffler deflector to the flywheel. In select models, it may also be used to secure the starter clutch to the flywheel. The screw is durable but exposed to high heat and constant wear, which means that it can become damaged or worn with regular use. If the screw is lost or damaged, it will need to be replaced. It should always be replaced with a genuine OEM part. This OEM muffler deflector screw is manufactured by Briggs & Stratton to exact standards and is compatible with several models of small engines. It can be used with various models of blowers, pressure washers, generators, and snow throwers from Toro, Murray, and Briggs & Stratton. It is sold as an individual replacement part. To replace this screw, the flywheel cover will need to be removed. Then, if it is still present, the old screw will need to be removed and the new one can be installed. This screw requires a hex or Torx screwdriver to install. Always wear gloves and disconnect the spark plug for safety when performing engine repairs.

This replacement grommet is bent at a 45-degree angle to create an elbow for the crankcase breather tube. Another name for the replacement grommet is a 45-degree breather tube. It is made from high-quality black rubber. If the exhaust smoke is coming out dark in color, the grommet may be cracked or damaged and need to be replaced. Another symptom of a faulty grommet is a reduction in mower performance. If the engine is backfiring, this could also be a sign that the grommet has failed. This simple repair doesn’t require any tools. It should easily fit into place without needing to remove any parts aside from the old grommet. Just attach the replacement grommet to the breather tube, connecting the crankcase to the carburetor. It is compatible with many mowers and other small engines manufactured by various brands like Briggs & Stratton, Cub Cadet, Simplicity, and Toro. This is a genuine OEM part.

This grommet is meant for small gasoline engines. It connects the crankcase breather tube to the carburetor. The elbow shape and rubber material of the grommet provide a convenient way to use it with metal tubing. This replacement breather tube grommet can help a small engine work better and more efficiently. This rubber engine part may dry out and crack over time, especially in the area connected directly to the carb. If not replaced, the carburetor will draw dirty air into the engine and cause costly problems. Use this manufacturer-approved spare part to replace a brittle grommet that has worn from age. This genuine OEM replacement part is sold individually and will fit specific models of blowers, generators, vacuums, and small engines from Toro and Briggs & Stratton.

The spark plug boot is a rubber piece that is responsible for connecting the spark plug to the spark plug wires and completing the connection. Spark plugs are necessary to create the engine spark that will start the motor in lawn equipment and other small engines. The boot holds the terminal and keeps everything protected from the elements and insulated so that it continues to work correctly. If the spark plug connection seems weak or if the existing boot is damaged, this replacement could provide the solution. This durable rubber boot will insulate the spark plugs and help any small engine run better. This spark plug boot replacement can be used with a number of Briggs & Stratton engines and is compatible with hundreds of different machines from Toro, Lawn-Boy, and Briggs & Stratton. This boot replacement is sold individually as a single piece and does not include the terminal or any other housing or materials.
