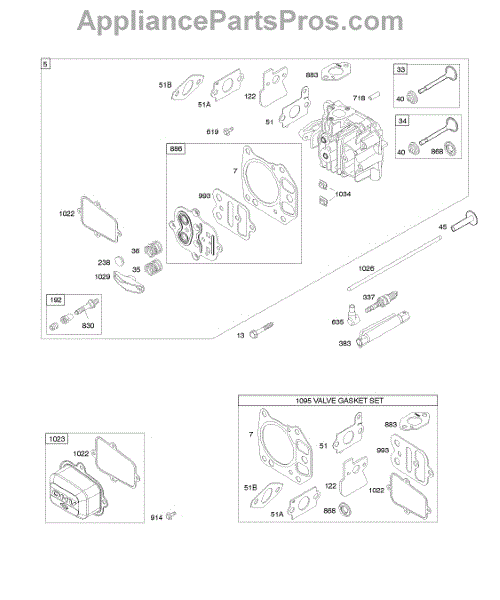

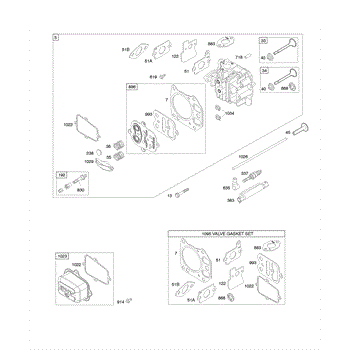

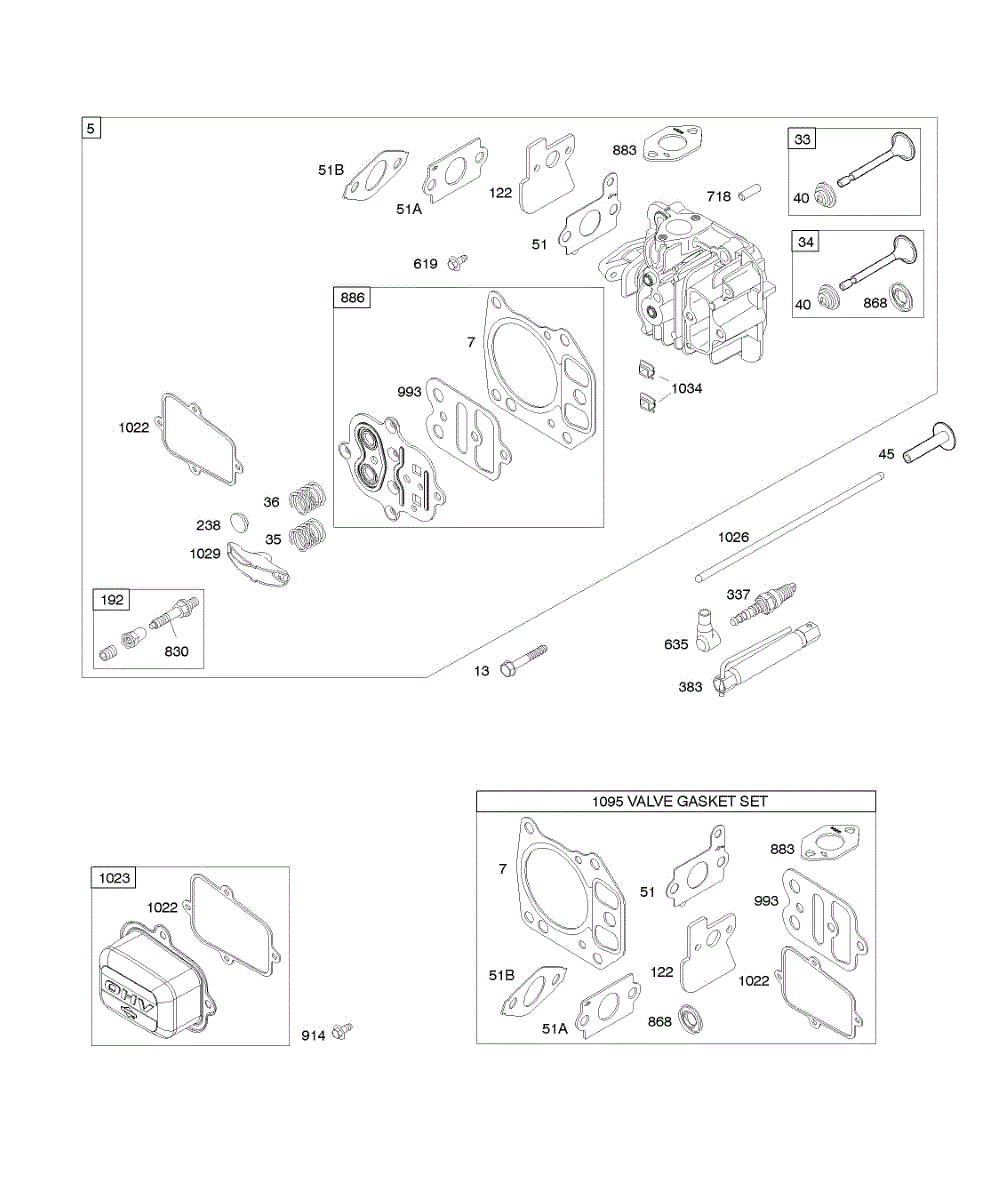

Parts for Briggs & Stratton 129602-0113-E1: Cylinder Head Parts

This is a cylinder head gasket. It creates a seal that air can't move through. When the cylinder head gasket is working correctly, it prevents leakages of oil or air. As time goes on, the cylinder head gasket will start to wear out and will need to be replaced.If the cylinder head gasket is worn out or damaged, the replacement will require the use of a wrench. The process involves moving the tool to a stable surface and disconnecting the spark plug wire. The engine will need to be disassembled to get access to the head gasket. Remove it from the engine and replace it with a new component. Make sure to reassemble all parts before using the tool.This is a genuine OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual part. The cylinder head gasket is made to be used with lawn mowers, leaf blowers, tillers, and pressure washers manufactured by Cub Cadet, Briggs & Stratton, Simplicity, and Toro.

This valve retainer is an authentic replacement part for use with many types of small lawn and garden engines. The retainer valve helps to keep the lock valve spring on the valve. It is shaped similarly to a washer, which will fit over the top of the valve spring. The piece also helps to add space between the valve spring and the head of the valve. The valve retainer is made from metal, and it is a small piece. The retainer could become lost and need replacement when performing other maintenance on the engine's valves. The metal could also become corroded or break. In those cases, it will need to be replaced as soon as possible. This is a genuine OEM replacement part that is sold individually. The part can be used with many types of equipment including lawn mowers, snowblowers, tillers, pressure washers, edgers, leaf blowers, log splitters, and wood chippers. Compatible brands include Briggs & Stratton, Craftsman, Toro, Cub Cadet, Murray, Lawn-Boy, Snapper, MTD, Simplicity.

This is a durable metal valve tappet that is designed for use in small motor lawn equipment. It is attached to the push rod. The valve tappet takes the rotating motion from the camshaft and turns it into a linear motion for the valves to operate correctly. In some cases, the valve tappet can become damaged or break and will need to be replaced.If there is an issue with the valve tappet, a set of pliers will be needed to make the replacement. For safety, use work gloves and make sure the spark plug wire is disconnected before starting the replacement. The crankcase breather, muffler, and other components will need to be taken off to gain access to the valve tappet to replace it.This valve tappet is a genuine OEM replacement component directly sourced from the manufacturer. It is sold as an individual replacement part. It is designed to be used on lawnmowers, snowblowers, tillers, pressure washers, leaf blowers, generators, and chipper shredders manufactured by Briggs & Stratton, Toro, Cub Cadet, Lawn-Boy, Snapper, MTD, and Simplicity.

This is a genuine intake gasket replacement that is designed for use in certain lawn mower engines. This specialty intake gasket is what is responsible for creating the seal between the carburetor and the breather tube so that no gases or fluids leak when they pass between the two. This gasket is subjected to constant high pressure, vibrations, and extreme temperatures, and over time it will need replaced. Gaskets are generally considered a part of routine maintenance on most engines, and many owners will choose to keep a few extra on hand in case of an urgent repair need. This genuine OEM intake gasket is manufactured by Briggs & Stratton and designed to offer an identical replacement for the original gasket that came on the new unit. It is compatible with lawn mower engines in models from Briggs & Stratton and Toro, and will fit on over 150 different engine models in lawn mowers from these brands. The intake gasket is made of durable composite material. It is also a good idea to replace gaskets when servicing the carburetor to ensure a proper seal after reassembly. Be sure to use the right tools to install this part so that it isn't damaged in the process.

Spark plugs work by providing an electric spark in a combustion chamber, igniting the mix of fuel and air that allows the engine to turn and propel a drive shaft. Insulated with ceramic to make sure the electric charge flowing through it is properly discharged, the plug is screwed into the cylinder head. The movement of the piston sucks fuel into the cylinder until it reaches the optimum level, the compression triggering the spark plug to send a pulse that ignites the fuel and pushes the piston to the back of the cylinder. This process is repeated hundreds of times a minute in an internal combustion engine. Eventually spark plugs simply wear out, particularly if they are not properly gapped, if the fuel mixture is improper, or the engine is subject to excessive use. This plug is compatible with most lawnmowers, small engines, and pressure washers made by Briggs & Stratton, Cub Cadet, and Toro. The plug itself is a guaranteed OEM part and is sold individually.

Flange screws have a flange located near the top of the screw, which helps to distribute the connection force over a larger area to reduce potential damage to the machine. It also allows the screws to be used in oversized or irregular holes, and it helps to ensure they stay in place. This flange screw also has a hex top. Screws can last for a long time. However, they may become corroded or worn over time and need to be replaced. They could also become lost and need a replacement. Without all of the screws in the proper places in a machine, it could vibrate too much, which could render it less effective or unsafe to use. The flange screw is a genuine OEM part that can be used with many types of machines including lawn mowers, snowblowers, tillers, pressure washers, leaf blowers, generators, wood chippers, and other small engines. The screws are compatible with Briggs & Stratton, Craftsman, Toro, Cub Cadet, Murray, Lawn-Boy, Snapper, Simplicity, and MTD.

The spark plug boot is a rubber piece that is responsible for connecting the spark plug to the spark plug wires and completing the connection. Spark plugs are necessary to create the engine spark that will start the motor in lawn equipment and other small engines. The boot holds the terminal and keeps everything protected from the elements and insulated so that it continues to work correctly. If the spark plug connection seems weak or if the existing boot is damaged, this replacement could provide the solution. This durable rubber boot will insulate the spark plugs and help any small engine run better. This spark plug boot replacement can be used with a number of Briggs & Stratton engines and is compatible with hundreds of different machines from Toro, Lawn-Boy, and Briggs & Stratton. This boot replacement is sold individually as a single piece and does not include the terminal or any other housing or materials.

This exhaust gasket is a genuine Midwest Engine replacement part for appliances that use small engines, such as chipper shredders, snowblowers, leaf blowers, and lawn mowers. The function of an exhaust gasket is to seal off the carburetor from the exhaust tube in order to protect the engine from the accumulation of dirt, debris, and gunk within the inner workings. The exhaust gasket may require replacement over time from general wear and tear. If the exhaust gasket is not sealing, allowing dirt and debris to accumulate within the carburetor and leaving the exhaust tube exposed, the part should be replaced immediately. Evidence of a damaged exhaust gasket could also manifest in the form of oil leakage, black smoke arising out of the exhaust tube, and unusually low pressure from the combustion when using the appliance. Any of these symptoms can be attributable to multiple factors, so one should assess if the exhaust gasket is responsible before ordering a replacement.This exhaust gasket is compatible with the following brands: Briggs and Stratton, Cub Cadet, Toro, and Simplicity. This part sold individually.

Flange screws have a flange located near the top of the screw, which helps to distribute the connection force over a larger area to reduce potential damage to the machine. It also allows the screws to be used in oversized or irregular holes, and it helps to ensure they stay in place. This flange screw also has a hex top. Screws can last for a long time. However, they may become corroded or worn over time and need to be replaced. They could also become lost and need a replacement. Without all of the screws in the proper places in a machine, it could vibrate too much, which could render it less effective or unsafe to use. The flange screw is a genuine OEM part that can be used with many types of machines including lawn mowers, snowblowers, tillers, pressure washers, leaf blowers, generators, wood chippers, and other small engines. The screws are compatible with Briggs & Stratton, Craftsman, Toro, Cub Cadet, Murray, Lawn-Boy, Snapper, Simplicity, and MTD.
