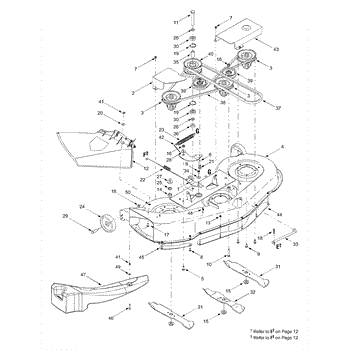

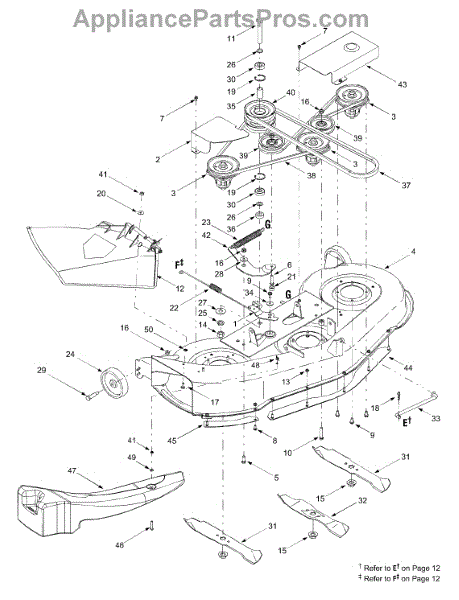

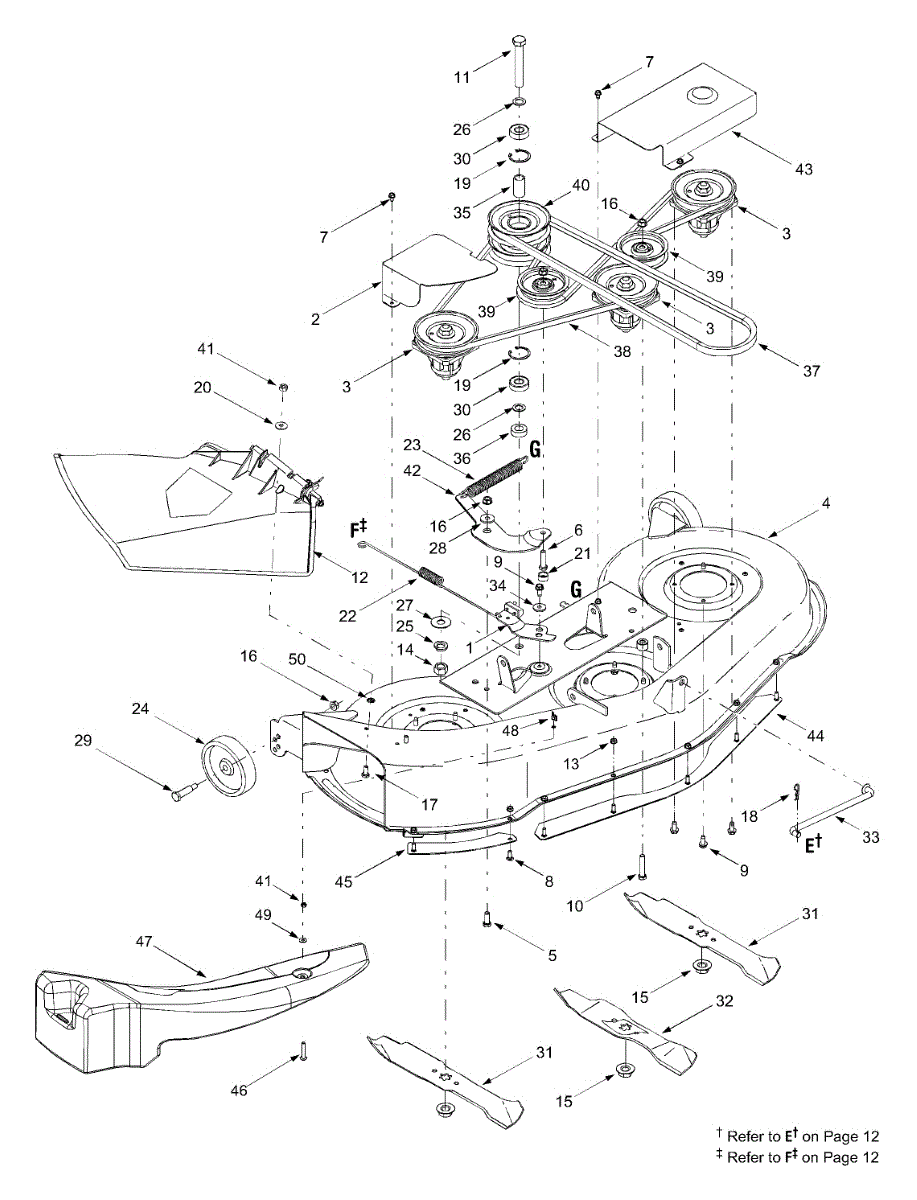

Parts for Yard Machines 13A7668H352 / 2003: Deck Assembly "H" Parts

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

Carriage bolts are flat-tipped with round heads, and their function in small engine appliances is to fasten together components and to secure that connection with a nut. There are various reasons that a carriage bolt might have to be removed and replaced, among them misplacement of the small, easily lost part. Other reasons to replace a carriage bolt could include damage or erosion that prevents the bolt from attaching the materials to one another effectively. If a carriage bolt is subject to this kind of damage, it should be replaced before using the small engine appliance. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This genuine MTD carriage bolt can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The OEM carriage bolt is compatible with the following brands: Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. This part is sold individually.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

The replacement screw seen here is made from high-quality, durable metal. It is an identical replacement for a faulty screw in many types of lawn and garden equipment. The screw features a hex-bolt shaped head and is used for various applications in the machines. Owners will want to refer to diagrams of their model to ensure the correct application for the screw. A screw may need to be replaced for any number of different reasons. In some cases, the screw could become lost when making other repairs to the machine. It could also become bent or the threads could be damaged. Corrosion is also a possibility over time. Replacing the screw is typically considered a fast and easy repair. The screw is a genuine OEM replacement part that is sold individually. The screw can be used for many models of snowblower, lawnmower, chainsaw, tiller, string trimmer, log splitter, edger, and wood chipper. Compatible brands include Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This hex bolt is a genuine MTD part, sold individually. This hex bolt can be used as a replacement part in lawnmowers, snowblowers, edgers, and chainsaws. The purpose of a hex bolt for one of these small engine outdoor appliances is to serve as a fastening component. The hex bolt works in conjunction with a nut to secure parts within the equipment.The hex bolt in a small engine outdoor appliance might need to be replaced if the hex bolt is lost, misplaced, or damaged to the point of reduced or no functionality. If the hex bolt is stripped away over time or is simply lost or misplaced during the use of the appliance, the hex bolt should be replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex bolt is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Troy-Bilt, Yard Machines, Yard-Man, Montgomery Wards, and Huskee.

The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.

This part is a hex cap screw that is used on a variety of outdoor power equipment. A hex cap screw is used to fasten components together securely. The head of the screw is shaped like a hexagon, hence the name "hex cap screw."A new hex cap screw may be needed if the current one is stripped, broken, or missing. Since screws are such a small component, it is important to place them in a safe place so that they are not lost. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This hex cap screw is a genuine Husqvarna part. It is sold individually. This particular hex cap screw is compatible with chippers, shredders, lawnmowers, lawn tractors, snowblowers, and vacuums that are manufactured by the following brands: Husqvarna, Craftsman, Bolens, Husky, Yard Machines, Yard-Man, MTD, and Troy-Bilt.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This replacement part is a plastic lawnmower wheel, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. These wheels are typically found in different types of lawnmowers. The wheels are attached to the deck of the lawnmower to prevent it from coming into contact with the ground. This allows easy maneuvering by the user of heavy machinery. A new lawnmower wheel might be needed if the current ones are damaged or broken in any way. Wheels are one of the most used parts of the lawnmower and easily become worn down over time. This is due to normal wear and tear. This wheel fits on the axle of the mower and is usually held in place by a bolt and locknut. Because of this, these wheels are easy to replace when using the correct tools. This part is compatible with different types of equipment made by MTD and is a genuine OEM replacement part.

This is a simple flat washer that can be used for lawn and garden equipment. Washers are used to help evenly distribute a load when they are used to fasten pieces together. This can help to reduce the risk of damage to the material. If the washers are missing or broken, it could create excess noise or vibrations depending on how or where they had been used.Washers tend to be durable, but they could still require a replacement. The washers could become bent or break over time. They could also become corroded or get lost when working on other parts of the machine. Owners should check the washers and replace them as needed.The washer here is for use with many types of lawn and garden tools from the likes of MTD, Yard-Man, Troy-Bilt, Craftsman, and Yard Machines. Keep in mind that each of the flat washers is sold individually. It is a genuine OEM replacement piece.

This double pulley is a genuine MTD part, sold individually. This double pulley can be used as a replacement part in a lawn mower. The purpose of a double pulley in a lawn mower is to facilitate rotation and movement of the belt that controls the deck pulley and the blades.The double pulley in a lawn mower might have to be replaced if the double pulley shows clear signs of damage, which can manifest in the form of scrapes, dents, cracks, punctures, or some form of warping that can reduce or negate the functionality of the component. If this occurs, the double pulley should be removed and replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This double pulley is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Yard Machines, Yard Man, Montgomery Wards, and Huskee.

This replacement part is a deck skirt. This is a genuine replacement part made by MTD. This part is commonly found in lawn mowers and is responsible for keeping the middle part of the deck area clear of flying debris. A new deck skirt might be needed if the current one is missing or damaged in any way. This can include being dented, cracked, bent, or chipped. This part can experience this type of damage over time due to normal wear and tear. This repair should be simple and fairly quick. A screwdriver and possible pliers will be required and work gloves are recommended before beginning. This part is sold individually and is sourced directly from the manufacturer. This deck skirt is a genuine OEM replacement part to ensure proper fit and long-lasting use.

This mulch plug is a genuine MTD part, sold individually. This mulch plug can be used as a replacement part in a lawn mower. The purpose of the mulch plug for the lawn mower is to mulch the grass clippings assembled into the grass catching bag during the operation of the lawn mower so that the mulch can be spread across the lawn or garden surface with the intent of keeping the greenery healthy.The mulch plug in a lawn mower might have to be replaced if it suffers damage to the point that the grass clippings cannot be finely chopped into mulch. This could occur if the mulch plug is punctured, scraped, dented, cracked, warped, or eroded. If this occurs, the mulch plug should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This mulch plug is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Montgomery Wards, and Yard Man.

This is a deck pulley that can work as a replacement for a range of lawn tractors. The pulley is used to help spin the blades on the tractor's mower deck. If the pulley has been damaged or is broken, the blades will not spin, which means the tractor can't cut the lawn. This will significantly reduce the functionality of the tractor.The deck pulley tends to be durable, but it could need to be replaced at some point. It might break, or it might become stripped. This could cause the belt to snap eventually. Replacing the part is essential. An impact driver and a 7/8 socket are needed to complete this project. Wait for the tractor to cool before starting a repair.This deck pulley can work with select models of lawn tractors from MTD, Troy-Bilt, Yard-Man, Yard Machines, and Bolens. The pulley is sold individually. This is an authentic OEM replacement deck pulley that has been sourced from the manufacturer.
