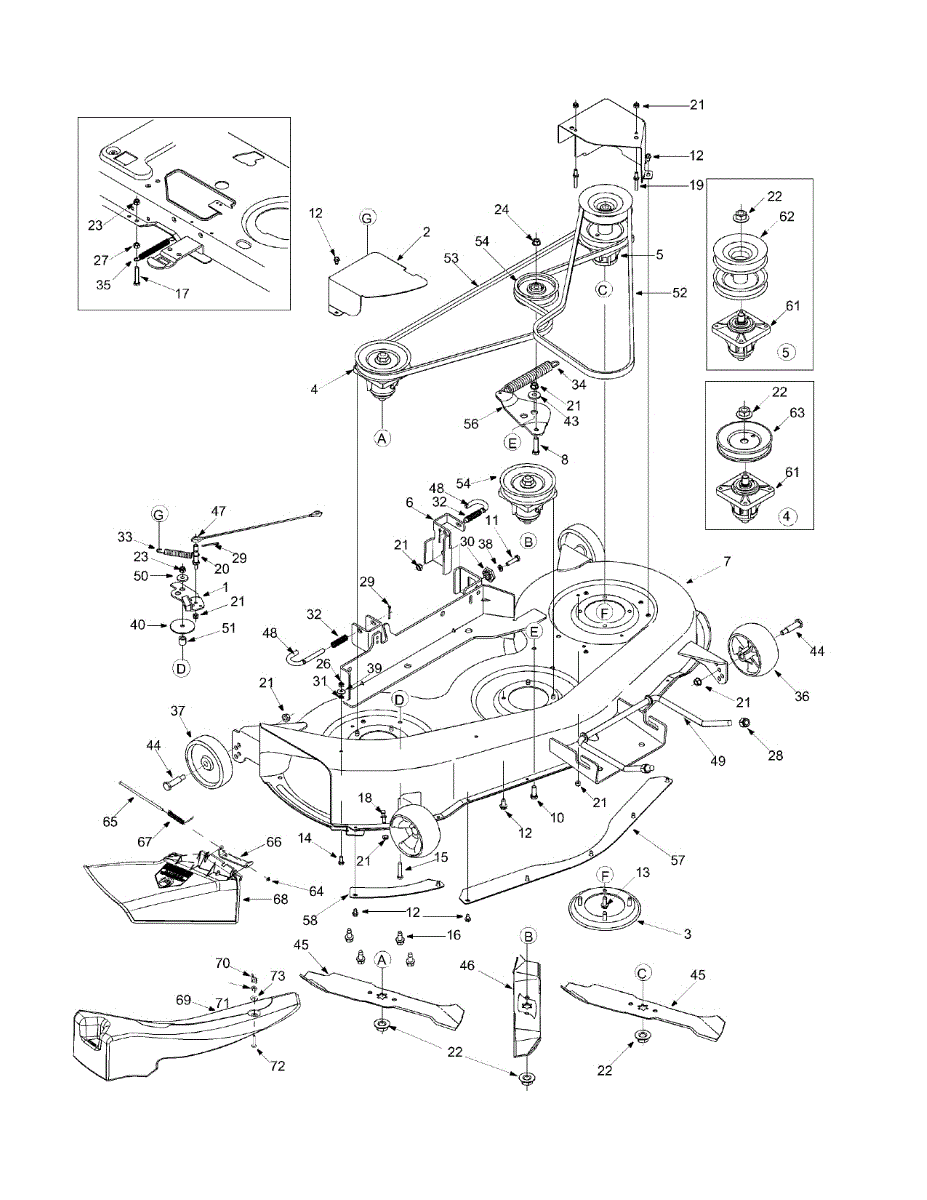

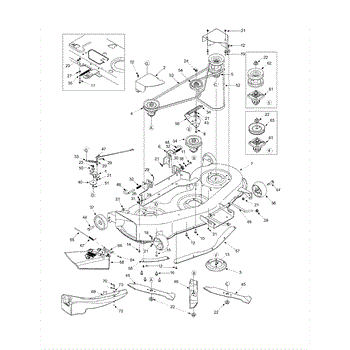

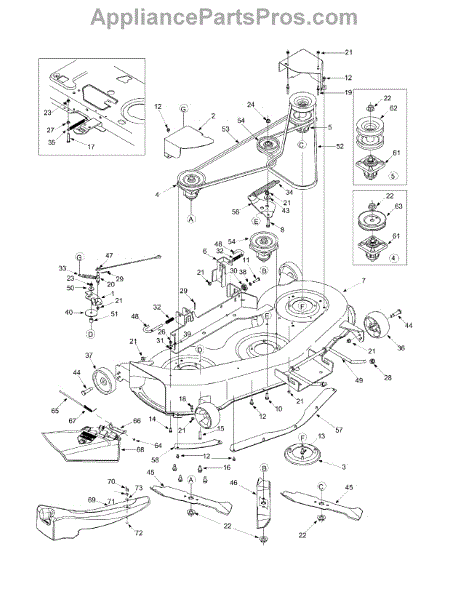

Parts for Mtd Pro 14AI808H718 / 2004: Deck Assembly Parts

Stops blade movement when mower is disengaged. Replace if blades won't stop spinning after shutting off. Typical repair takes 30-45 minutes.

Spindle mounting plate for lawn tractors and zero-turn mowers. Secures the blade spindle assembly to the mower deck. Replace if cracked or damaged.

Spindle assembly with pulley for lawn tractor mower decks. Mounts to deck underside to support and spin blades. Replace if cracked, worn, or damaged.

Uneven or patchy cutting? Replace your lawn tractor spindle assembly to restore smooth blade rotation and even cutting performance across your lawn.

Left-hand deck bracket assembly for lawn tractors and riding mowers. Mounts and supports the mower deck. Replace if bent, cracked, or broken.

Hex screw fastener for lawn tractors, mowers, and outdoor power equipment. Replace when stripped, rusted, or missing to secure engine and chassis parts.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

The hex head self-tapping screws are designed for a number of applications in lawn and garden equipment, primarily holding machinery and engine parts together. Over time, screws can become stripped, fall out, or otherwise get damaged, resulting in a need for replacement. When replacing screws and other hardware, always be sure to disengage or disable any power supply to reduce the risk of shock or other injuries. The self-tapping screw makes it easy to replace, and the fact that they are manufacturer-guaranteed ensures a perfect fit for compatible machines. This OEM self-tapping screw is compatible with several machines from RYOBI, MTD, Husky, Cub Cadet, Yard-Man, Troy-Bilt, Bolens, and Yard Machines. It can be found in lawnmowers and tractors and can be in multiple locations, depending on the exact model. This screw is sold as a single piece; order multiple quantities if needed.

Hex cap screw fastener for outdoor power equipment. Secures components with hexagon-shaped head. Replace if stripped, broken, or missing threads.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This hex bolt is a necessary component used in a variety of small to medium sized gasoline powered engines used primarily in yard work, gardening, and landscaping. The primary use of this hex bolt is to secure the idler pulley assembly to the body of the machine. The idler pulley functions to engage the turning mechanism of the yard tool when engaged. The power yard tools that require an idler pulley which would use this screw are tillers, riding mowers, yard tractors, tillers, snow blowers and chippers. Engaging the rotating part of the yard tool places a great deal of resistance on the idler pulley, which may eventually result in it needing to be replaced. When replacing the idler pulley assembly, it's important to remember that the attaching hardware, such as the hex bolt, has also experienced a great deal of wear and should be replaced as well. This hex bolt attaches the idler pulley assembly directly to the machine housing and can be removed with a 9/16 wrench. Make sure when replacing the bolt to use a genuine OEM manufactured part that is identical to the manufacturer's original piece. This bolt is compatible with the following brands: Yard-Man, Bolens, Craftsman, Yard Machines, Troy-Bilt, Cub Cadet, Huskee, Ryobi, Murray, MTD, MasterCut, and Montgomery Wards.

Replacement pin for lawn mower grass catchers. Secures grass bag to mower deck. Order a new pin if yours is lost, bent, or broken during use.

Belt guard pin secures the protective cover over drive belts on lawn tractors and mowers. Replace if bent, broken, or missing to maintain safe operation.

Replacement deck assembly pin for lawn tractors. Holds deck components in place while allowing proper movement. Replace if bent, missing, or worn.

Nylon nut for lawn equipment. Secures and connects components throughout the machine. Replace if cracked, stripped, or missing for proper assembly.

Replaces a stripped, damaged, or missing 5/8" hex flange nut on your lawn mower or snow thrower. Secures blades and other components with integrated washer.

Secures hardware, handles, and connections on lawn equipment. Replace if stripped, corroded, or missing. Standard hex nut for various outdoor models.

Hex lock nut secures bolted joints on outdoor lawn equipment. Replace if threads are stripped, nut is missing, or won't hold proper tension.

This is a genuine 5/16 hex nut, a standard piece of hardware used to affix various components securely. This MTD nut is used in multiple applications and has several placement options depending on the model of the engine. Nuts can become stripped or worn over time. In some cases, the screws they are attached to may become stripped, which might require a replacement of both. A wrench is required to complete the replacement. This hex nut is designed to work with several brands that feature MTD engines, including RYOBI, Yard Machines, Yard-Man, MTD, Troy-Bilt, Husky, Bolens, and Cub Cadet. There are hundreds of machines that use this nut, including tractors, lawnmowers, blowers, cultivators, and snowblowers. This nut is sold individually; purchase additional parts as necessary.

Hex nut for lawn tractors and garden equipment. Secures bolts throughout the machine. Replace if stripped, rusted, or missing during repairs.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

Deck height adjustment gear for lawn tractors and riding mowers. Replaces broken or worn gears that control cutting deck position and leveling.

Retainer bolt for lawn mowers and tractors. Secures components in place. Replace if lost, stripped, or damaged to restore proper fastening.

Compression spring for lawn mowers and outdoor power equipment. Replaces broken, worn, or missing springs. Essential hardware for proper operation.

An authentic OEM replacement extension spring is an integral part of a lawn tractor or snowblowers brake system that helps to hold together and redistribute energy throughout the lower deck. When a driver applies the brakes, the lower deck has a tendency to continue moving forward with inertia. This extension spring helps to keep the parts in place and transfer a balance of energy. Although replacing the extension spring itself is a simple and straightforward process, gaining access to the spring is a little complicated as it requires removing the lawn mower or snowblower's lower deck. You will need a pair of pliers to remove the pins and cables that hold the lower deck in place but there is no other required hardware. Be sure to follow the user's manual as you remove the deck. This part is a top-quality replacement part sourced from its original manufacturer. It is designed to be used with Murray, Husky, Troy-Bilt Poulan, Yard Man, Yard Machines, Bolens, and MTD appliances. This part ships individually.

Extension spring for lawn tractors and riding mowers. Replaces cracked, broken, or missing springs. Installs on various linkage and control mechanisms.

Extension spring for lawn tractors and mowers. Installs on drive system or attachment linkage. Replace if broken, stretched, or missing for proper operation.

Deck wheel kit for lawn mowers and tractors. Replaces cracked, broken, or worn deck wheels. Includes mounting hardware for easy installation.

Plastic deck wheel for lawn mowers and lawn tractors. Attaches to the mower deck to prevent scalping and provide smooth gliding. Replace if cracked or worn.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

Shield spacer for lawn tractors and riding mowers. Provides proper spacing between shield components. Replace if damaged, worn, or missing during repairs.

Here is a replacement shoulder screw that is commonly used for various types of outdoor power equipment. Another name for the shoulder screw is a shoulder pin. The screw is often used to help secure the plastic wheels to the deck of a machine. However, different machines may have different uses for shoulder screws and other types of hardware. The shoulder screw is made from metal and is durable. However, the pin may still need to be replaced at some point. Whether it is because of corrosion or being bent, it is important to replace a failed screw with a new one. When performing maintenance on the machine, it is also possible that the screw could become lost, which would require a replacement. This is a genuine OEM replacement shoulder screw. It is sold individually and works with many types of makes and models. The screw is often used for edgers, snowblowers, lawn mowers, and chainsaws. Brands that have models that will be compatible with the shoulder screw include Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, MTD, Huskee, Yard-Man, and MasterCut.

Mulching blade cuts grass into fine clippings for nutrient-rich lawns. Replace when dull or damaged for cleaner cuts. Verify fit with your model number.

14.88" mulching blade for lawn mowers and tractors. 3-in-1 design mulches, bags, or side discharges clippings. Replace when dull or damaged. Verify fit.

Cable bracket for lawn tractors. Secures and routes control cables near the engine. Replace if bracket is bent, cracked, or missing to restore proper cable positioning.

Deck release pin secures the mower deck to the tractor frame. Replace if bent, broken, or missing to properly attach and support your cutting deck assembly.

Deck lift rod for lawn tractors and riding mowers. Connects deck to lift mechanism. Replace if bent, broken, or corroded to restore deck height control.

Shield spacer for lawn tractors and riding mowers. Provides proper spacing and alignment for protective shields. Replace if missing, damaged, or worn.

Drive belt for lawn tractors and riding mowers. Replace if worn, cracked, or slipping during operation. Verify fit with your model number.

A flat idler pulley is a crucial piece of hardware designed for use with many different models of lawn mowers and snowblowers. It is compatible with products by brands such as Craftsman, Yard Machines, Yard Man, MTD, and Troy-Bilt.The flat idler pulley part is crucial for the proper functioning of the lawn mower because it connects to the idler bracket. The purpose of the flat idler pulley is to apply tension to the v-belt. The replacement process of the flat idler pulley will require a wrench.This flat idler pulley is made out of metal. It is sold individually. The flat idler pulley is an original OEM part sourced directly from the manufacturer, MTD.

Idler bracket for lawn tractors and zero-turn mowers. Mounts to the frame to support the idler pulley. Replace if bent, cracked, or broken.

Deck skirt installs on the middle section of your mower deck to deflect grass clippings and debris. Replace if cracked, damaged, or missing.

Protective deck skirt that shields mower blades from objects and deck contact. Replace if cracked, broken, or missing to prevent blade damage.

If your lawn has uneven cuts or blade wobble, the spindle shaft may be damaged. This shaft holds mower blades in place for proper cutting height.

Blade won't spin or spins unevenly? This spindle shaft connects your mower blade to the drive system. Replace if worn or corroded for proper cutting.

Guides and tensions the belt that spins mower blades. Replace if blades won't spin, deck vibrates excessively, or cuts are uneven. Confirm fit with your model.

If your mower blades won't spin or cut grass, a damaged deck pulley is likely the cause. This pulley drives blade rotation on lawn tractors and mowers.

Push nut for lawn mowers and tractors. Secures components in place. Replace if missing, damaged, or no longer holding parts firmly during operation.

Secures hinged components on lawn tractors and outdoor power equipment. Replace if bent, worn, or missing to restore proper hinge function and stability.

This replacement part is a torsion spring. This is a genuine replacement part made by MTD. This particular spring is found in riding lawnmowers and is responsible for connecting and controlling different parts within the engine.A new spring might be needed if the current spring is missing. If the spring is snapped it should also be replaced as soon as possible. The repair for this part should be fairly simple and only require common household tools. Be sure to wear work gloves during this repair to prevent injury. This part is sold individually and is sourced directly from the manufacturer. This part is a genuine OEM replacement part to ensure proper fit.

Want to mulch grass clippings instead of bagging? This mulch plug blocks the discharge chute to recirculate clippings for fine mulching action.

Wing nut for lawn tractors and outdoor power equipment. Secures covers, guards, and components. Replace if stripped, missing, or damaged.

Flat washer for lawn mowers and tractors. Replace if missing, corroded, or damaged during maintenance. Ensures secure fastening of components.
