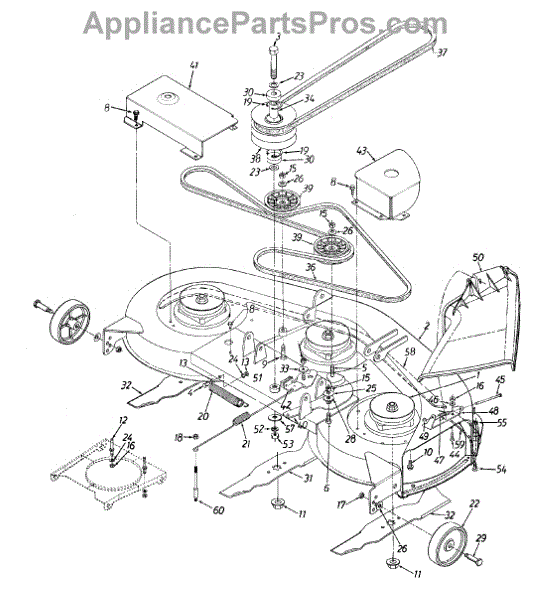

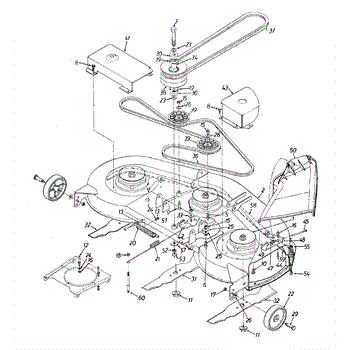

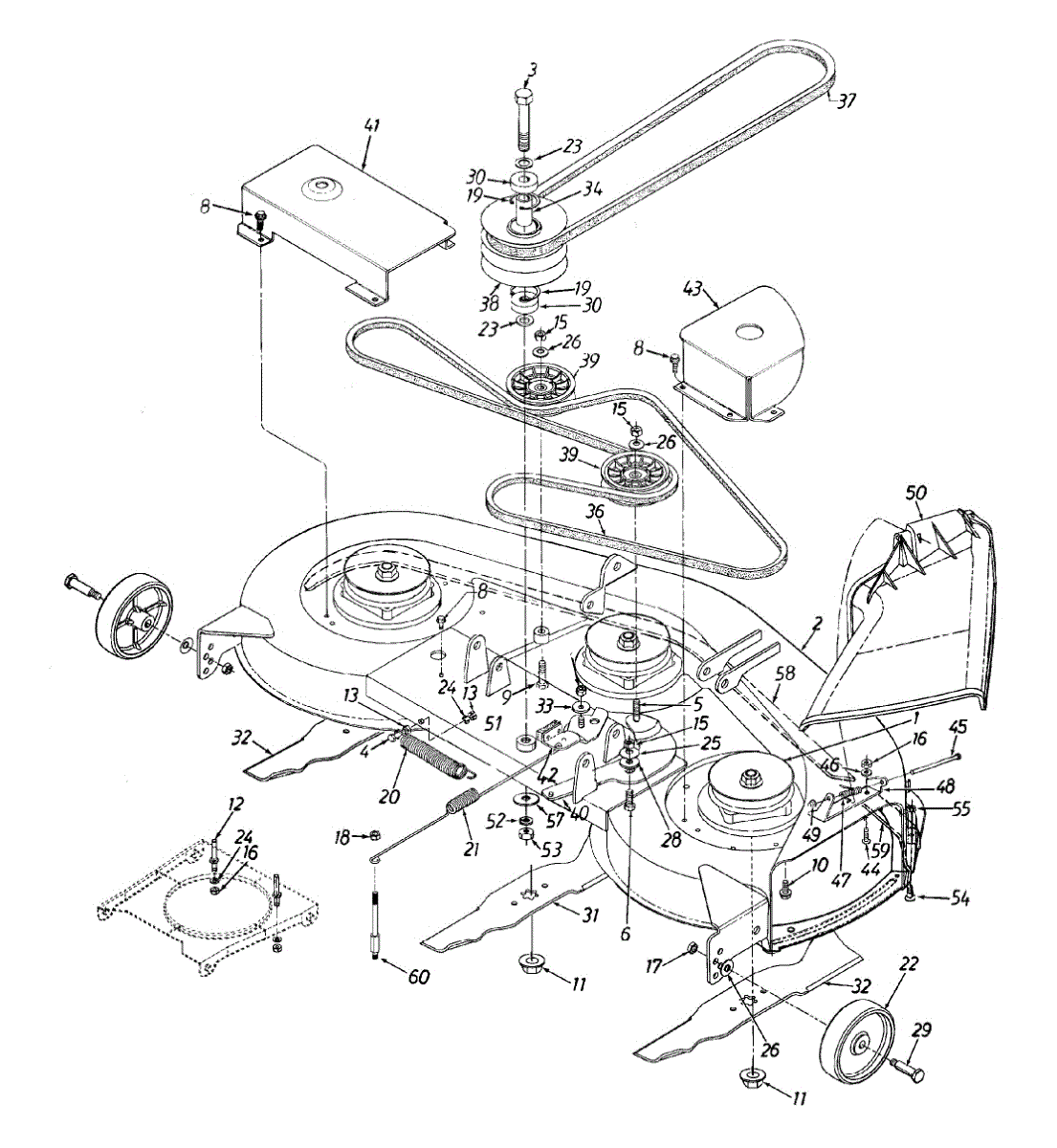

Parts for Statesman 13AJ699H016 / 1998: Deck Assembly Parts

This hex bolt is a genuine MTD part, sold individually. This hex bolt can be used as a replacement part in lawnmowers, snowblowers, edgers, and chainsaws. The purpose of a hex bolt for one of these small engine outdoor appliances is to serve as a fastening component. The hex bolt works in conjunction with a nut to secure parts within the equipment.The hex bolt in a small engine outdoor appliance might need to be replaced if the hex bolt is lost, misplaced, or damaged to the point of reduced or no functionality. If the hex bolt is stripped away over time or is simply lost or misplaced during the use of the appliance, the hex bolt should be replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex bolt is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Troy-Bilt, Yard Machines, Yard-Man, Montgomery Wards, and Huskee.

This replacement part is a hex screw. It is a genuine replacement part made by MTD. Hex screws are able to hold other parts in place and secure them so that everything can operate smoothly. This part is small yet very important to the overall operation of many different machines.A new hex screw might be needed if the user notices that the current ones are damaged or missing. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous screw is stuck. It is possible that screws become stripped or lodged over time and should be replaced when this occurs. Be sure the engine is completely powered down before starting a repair. This is a genuine OEM replacement part sourced directly from the manufacturer. This screw is sold individually. Be sure to purchase the correct amount as many appliances require more than one.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This hex screw is a genuine MTD part, sold individually. A hex screw can be used as a replacement part for outdoor appliances including lawn mowers, snowblowers, tillers, and wood chippers. This genuine OEM part is a small fastening component.The hex screw in a outdoor appliance might need to be replaced if it has been lost or damaged. If the screw has been damaged and cannot serve its typical function, it should be removed and replaced by this genuine OEM replacement part in a timely fashion.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

This replacement part is a spring. Springs ensure that certain components are held in place.A new spring might be needed if the current one is missing or visibly damaged in any way. It is possible that springs can snap over time due to the amount of pressure they experience during use. If a spring has become loose and no longer holds tension, it may no longer work in the way that it's needed. Be sure the engine is turned off during this repair.This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

This replacement part is a plastic lawnmower wheel, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. These wheels are typically found in different types of lawnmowers. The wheels are attached to the deck of the lawnmower to prevent it from coming into contact with the ground. This allows easy maneuvering by the user of heavy machinery. A new lawnmower wheel might be needed if the current ones are damaged or broken in any way. Wheels are one of the most used parts of the lawnmower and easily become worn down over time. This is due to normal wear and tear. This wheel fits on the axle of the mower and is usually held in place by a bolt and locknut. Because of this, these wheels are easy to replace when using the correct tools. This part is compatible with different types of equipment made by MTD and is a genuine OEM replacement part.

This is a simple flat washer that can be used for lawn and garden equipment. Washers are used to help evenly distribute a load when they are used to fasten pieces together. This can help to reduce the risk of damage to the material. If the washers are missing or broken, it could create excess noise or vibrations depending on how or where they had been used.Washers tend to be durable, but they could still require a replacement. The washers could become bent or break over time. They could also become corroded or get lost when working on other parts of the machine. Owners should check the washers and replace them as needed.The washer here is for use with many types of lawn and garden tools from the likes of MTD, Yard-Man, Troy-Bilt, Craftsman, and Yard Machines. Keep in mind that each of the flat washers is sold individually. It is a genuine OEM replacement piece.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This double pulley is a genuine MTD part, sold individually. This double pulley can be used as a replacement part in a lawn mower. The purpose of a double pulley in a lawn mower is to facilitate rotation and movement of the belt that controls the deck pulley and the blades.The double pulley in a lawn mower might have to be replaced if the double pulley shows clear signs of damage, which can manifest in the form of scrapes, dents, cracks, punctures, or some form of warping that can reduce or negate the functionality of the component. If this occurs, the double pulley should be removed and replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This double pulley is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Yard Machines, Yard Man, Montgomery Wards, and Huskee.

This part is a hex cap screw that is used on a variety of outdoor power equipment. A hex cap screw is used to fasten components together securely. The head of the screw is shaped like a hexagon, hence the name "hex cap screw."A new hex cap screw may be needed if the current one is stripped, broken, or missing. Since screws are such a small component, it is important to place them in a safe place so that they are not lost. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This hex cap screw is a genuine Husqvarna part. It is sold individually. This particular hex cap screw is compatible with chippers, shredders, lawnmowers, lawn tractors, snowblowers, and vacuums that are manufactured by the following brands: Husqvarna, Craftsman, Bolens, Husky, Yard Machines, Yard-Man, MTD, and Troy-Bilt.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This carriage bolt is a self-locking bolt designed to be used in an unthreaded square or round hole. These bolts are used in outdoor lawn and garden equipment due to their ability to handle heavy weight loads.Carriage bolts are often used to join lawnmower handles to the base of the mower. Over time, the vibration of the lawnmower may cause the bolt to become loose. During routine maintenance, if the bolt is loose, use a wrench to tighten the nut holding the bolt in place. If the bolt is missing, this carriage bolt replacement can be installed. Push the bolt through the hole; if the fit is snug, it may need to be lightly tapped. Once the bolt is through the other side, thread a nut on the bolt. Tighten the nut with a wrench.This is a genuine OEM part sourced directly from the manufacturer. It is sold as an individual unit and does not come with the nut. This carriage bolt is designed for lawnmowers, snowblowers, and other outdoor lawn and garden equipment manufactured by Bolens, Craftsman, Cub Cadet, Huskey, Troy-Bilt, Turf Pro, MTD, Ryobi, and Mastercut.

This replacement part is a deck skirt. This is a genuine replacement part made by MTD. This part is commonly found in lawn mowers and is responsible for keeping the middle part of the deck area clear of flying debris. A new deck skirt might be needed if the current one is missing or damaged in any way. This can include being dented, cracked, bent, or chipped. This part can experience this type of damage over time due to normal wear and tear. This repair should be simple and fairly quick. A screwdriver and possible pliers will be required and work gloves are recommended before beginning. This part is sold individually and is sourced directly from the manufacturer. This deck skirt is a genuine OEM replacement part to ensure proper fit and long-lasting use.
