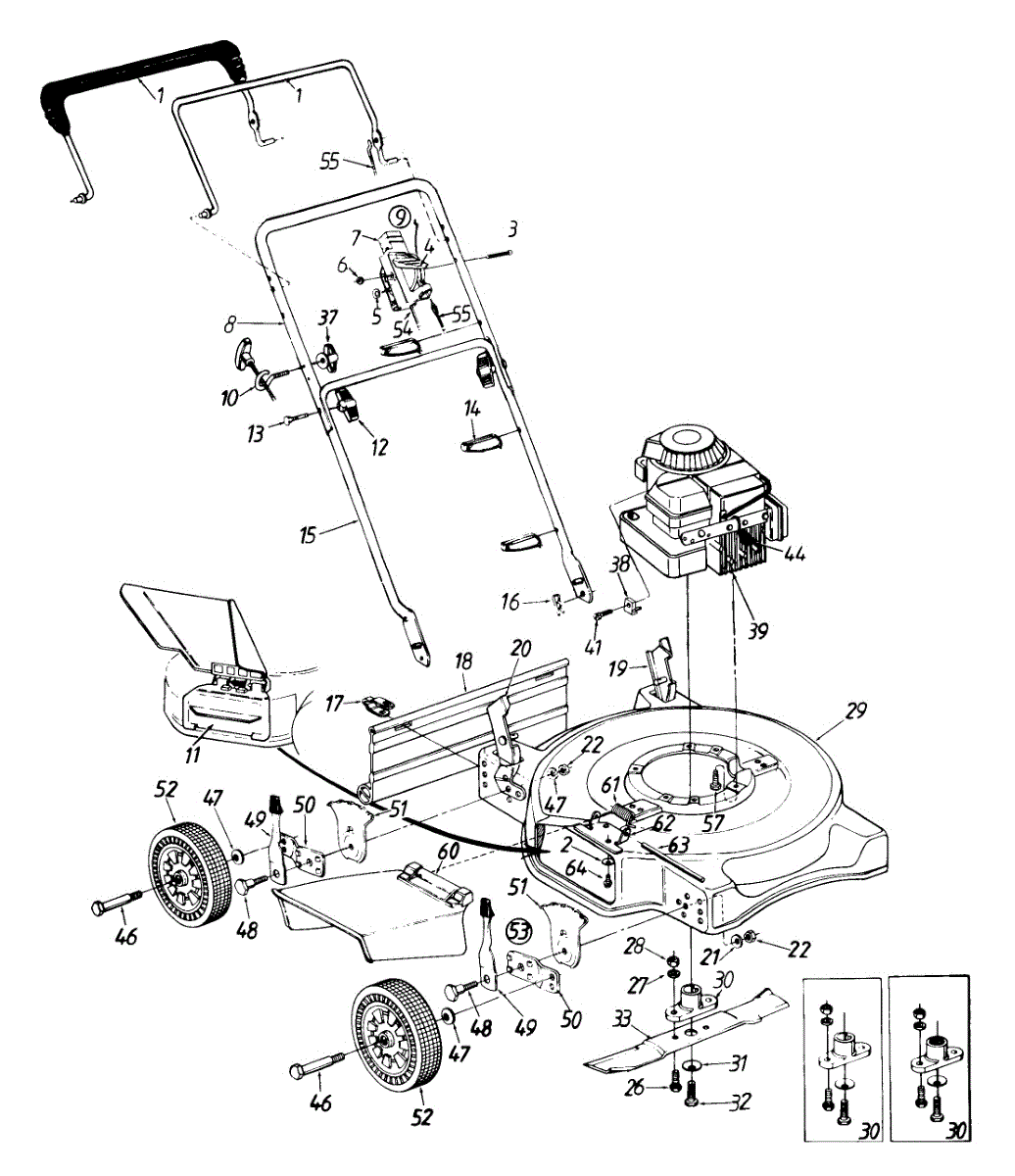

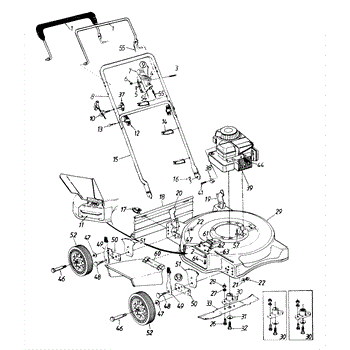

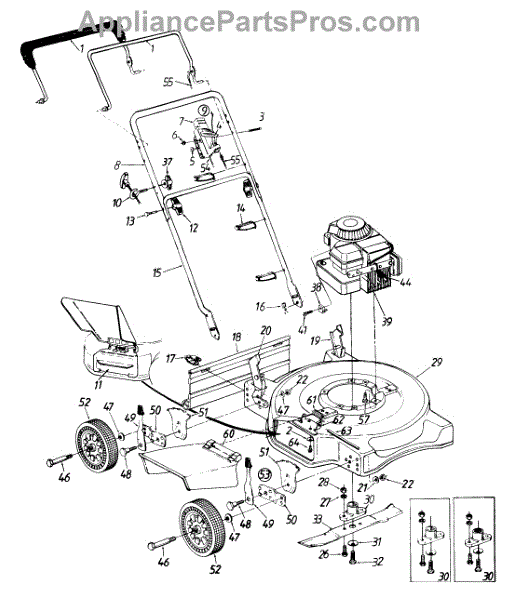

Parts for Wizard 113-072A098 / 1993: Deck Assembly Parts

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

This is an oval c-sunk screw commonly used in mowers and snowblowers to help secure the throttle housing to the upper handle. If there is a problem with the screw, it should be replaced to ensure the proper function of the machine.The screw is made from metal and it should last a long time. However, there could be several reasons to replace the screw. It might become lost when working on other parts of the machine. The threads could be stripped, or the head of the screw could start to wear away or corrode over time. Replacement of this piece is usually fast and easy, but it can depend on the location of the screw.The oval c-sunk screw will work with models of machines from MTD, Mastercut, Husky, Western Sun, Lawn Hawk, Wizard, Servistar, and Tradesman. The screw is sold individually. It is a genuine OEM replacement part.

Nylon nut for lawn equipment. Secures and connects components throughout the machine. Replace if cracked, stripped, or missing for proper assembly.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Replace a lost, stripped, or corroded nut on your lawn mower, tractor, or outdoor power equipment. Secures components for safe operation.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

Connects mower blade to spindle shaft. Replace if worn, stripped, or blade wobbles. Verify fit with your mower model number before ordering.

Hex bolt secures blade adapter and other components on lawn mowers. Replace if bolt is stripped, damaged, or missing to properly fasten parts.

Tap screw for lawn mowers and tractors. Secures panels, guards, and components. Replace if stripped, rusted, or missing to restore proper assembly.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

Pivot bar bracket for lawn mowers. Mounts to the mower deck to support handle height adjustment mechanism. Replace if bent, cracked, or broken.

Replaces cracked or broken blade height adjustment brackets on walk-behind mowers. Secures cutting deck leveling mechanism. Needed when missing or worn.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Replacement rear discharge flap assembly for walk-behind lawn mowers. Installs at the rear deck opening to shield against debris. Needed when cracked or torn.

Blade adapter kit for walk-behind and self-propelled mowers. Replaces worn, stripped, or broken adapters that connect the blade to the drive shaft.

This is the front wheel assembly that is used by a large number of manufactures as the standard wheel for push mowers. This wheel is a tough, black rubber wheel fitted onto a sturdy white chassis. Since it is not a pneumatic wheel, there is no concern that it will roll over hidden debris and be damaged. Push wheels such as these often last the lifetime of a Lawn Mower. However, there are occasions when the housing of the mower is dropped and the wheel becomes warped or broken. It's also the case that, with constant use, the wheels can lose tread, making them harder to maneuver in tough mowing conditions. It has also been reported that the tires will wear and become smaller in circumference over time, meaning it will require more gasoline to mow the same amount of yard. The front wheels are easily replaced. After removing the plug cap and stabilizing the mower, simply use a socket wrench to remove the center bolt from the wheel. It's a good idea to use a dry lubricant like graphite on the axle before replacing it. This OEM guaranteed replacement part is compatible with Ryobi, Yard Machines, Troy-Bilt, Cub Cadet, Husky, Yard-Man, and MTD push mowers.

Hex screw for lawn mowers and tractors. Secures deck, wheels, or frame components. Replace if stripped, corroded, or missing for proper assembly.

Replaces worn, cracked, or damaged 8-inch wheels on walk-behind lawn mowers. Restores smooth rolling and maneuverability for easier operation.
