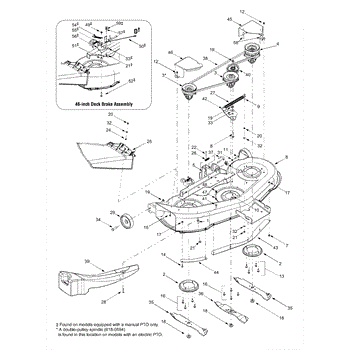

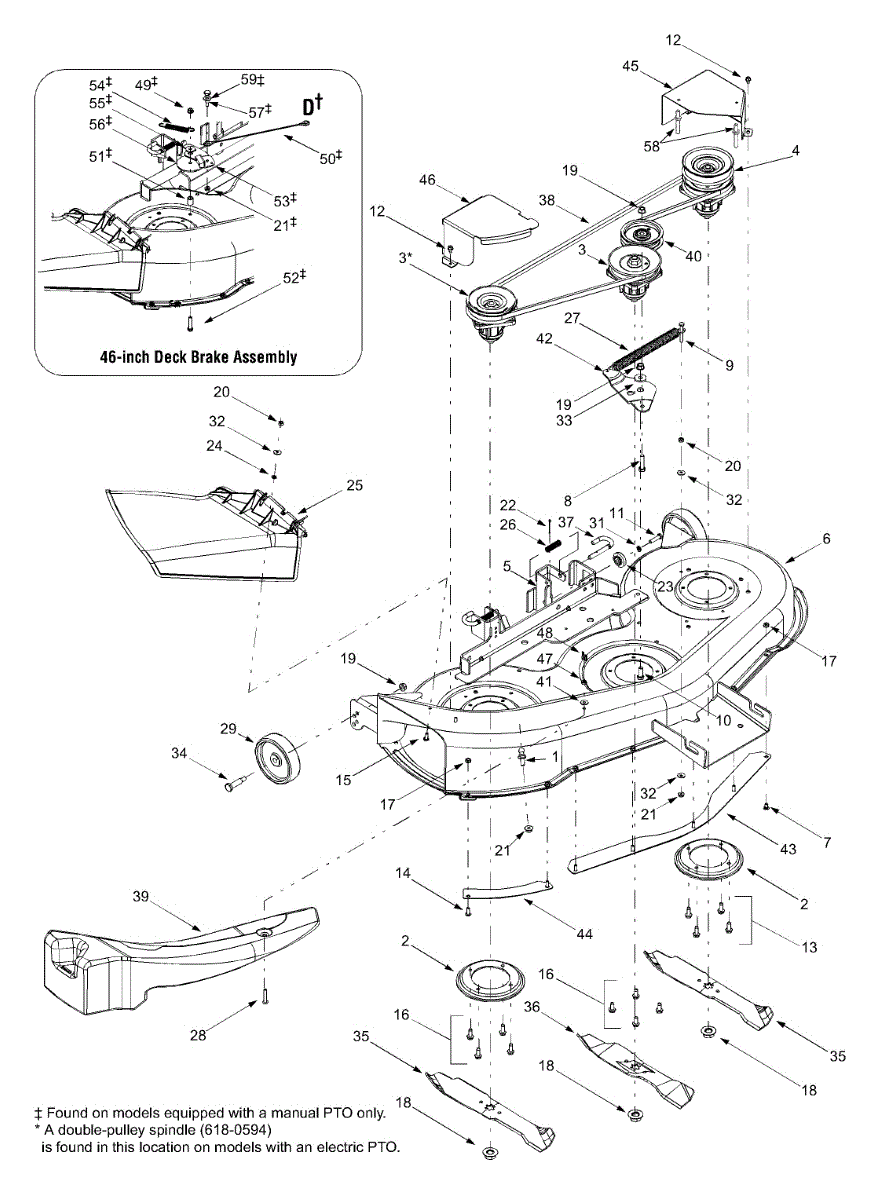

Parts for Yard-Man 13AT614H401 / 2004: Deck Assembly Parts

Replacement pin for lawn mower grass catchers. Secures grass bag to mower deck. Order a new pin if yours is lost, bent, or broken during use.

If your mower blades won't spin or cut grass, a damaged deck pulley is likely the cause. This pulley drives blade rotation on lawn tractors and mowers.

Spindle assembly with pulley for lawn tractor mower decks. Mounts to deck underside to support and spin blades. Replace if cracked, worn, or damaged.

Double pulley spindle assembly for lawn tractor mower decks. Mounts with four bolts and features a 6-point center hole. Replace if cracked or worn.

This is a double pulley spindle assembly, also called a double pulley mandrel assembly, used with lawn tractors. It attaches to the mower deck on the tractor, where it helps to spin the blades. The spinning is what lets the mower cut the grass. When the assembly is not functioning correctly, the lawn tractor will not be able to cut the grass properly, and it will need to be replaced.The assembly is durable, but even though it can last a long time, it might need to eventually be replaced. Over time, it could corrode or parts could start to wear down or even break.The double pulley spindle assembly will work with certain lawn tractors from Troy-Bilt, MTD, and Yard-Man. This is a genuine OEM replacement part sourced from the manufacturer. It's sold individually.

Left-hand deck bracket assembly for lawn tractors and riding mowers. Mounts and supports the mower deck. Replace if bent, cracked, or broken.

This carriage bolt is a self-locking bolt designed to be used in an unthreaded square or round hole. These bolts are used in outdoor lawn and garden equipment due to their ability to handle heavy weight loads.Carriage bolts are often used to join lawnmower handles to the base of the mower. Over time, the vibration of the lawnmower may cause the bolt to become loose. During routine maintenance, if the bolt is loose, use a wrench to tighten the nut holding the bolt in place. If the bolt is missing, this carriage bolt replacement can be installed. Push the bolt through the hole; if the fit is snug, it may need to be lightly tapped. Once the bolt is through the other side, thread a nut on the bolt. Tighten the nut with a wrench.This is a genuine OEM part sourced directly from the manufacturer. It is sold as an individual unit and does not come with the nut. This carriage bolt is designed for lawnmowers, snowblowers, and other outdoor lawn and garden equipment manufactured by Bolens, Craftsman, Cub Cadet, Huskey, Troy-Bilt, Turf Pro, MTD, Ryobi, and Mastercut.

Hex screw fastener for lawn tractors, mowers, and outdoor power equipment. Replace when stripped, rusted, or missing to secure engine and chassis parts.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

The hex head self-tapping screws are designed for a number of applications in lawn and garden equipment, primarily holding machinery and engine parts together. Over time, screws can become stripped, fall out, or otherwise get damaged, resulting in a need for replacement. When replacing screws and other hardware, always be sure to disengage or disable any power supply to reduce the risk of shock or other injuries. The self-tapping screw makes it easy to replace, and the fact that they are manufacturer-guaranteed ensures a perfect fit for compatible machines. This OEM self-tapping screw is compatible with several machines from RYOBI, MTD, Husky, Cub Cadet, Yard-Man, Troy-Bilt, Bolens, and Yard Machines. It can be found in lawnmowers and tractors and can be in multiple locations, depending on the exact model. This screw is sold as a single piece; order multiple quantities if needed.

Carriage bolt for lawn mowers and outdoor power equipment. Fastens components together with a nut. Replace if lost, stripped, or damaged during repair.

Hex cap screw fastener for outdoor power equipment. Secures components with hexagon-shaped head. Replace if stripped, broken, or missing threads.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

Replaces a stripped, damaged, or missing 5/8" hex flange nut on your lawn mower or snow thrower. Secures blades and other components with integrated washer.

Hex lock nut secures bolted joints on outdoor lawn equipment. Replace if threads are stripped, nut is missing, or won't hold proper tension.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

Deck height adjustment gear for lawn tractors and riding mowers. Replaces broken or worn gears that control cutting deck position and leveling.

Retainer bolt for lawn mowers and tractors. Secures components in place. Replace if lost, stripped, or damaged to restore proper fastening.

Complete discharge chute assembly for lawn mower decks. Directs grass clippings away from deck. Replace if cracked, broken, or missing. Uses existing hardware.

Compression spring for lawn mowers and outdoor power equipment. Replaces broken, worn, or missing springs. Essential hardware for proper operation.

Extension spring for lawn tractors and riding mowers. Replaces cracked, broken, or missing springs. Installs on various linkage and control mechanisms.

Plastic deck wheel for lawn mowers and lawn tractors. Attaches to the mower deck to prevent scalping and provide smooth gliding. Replace if cracked or worn.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

Shield spacer for lawn tractors and riding mowers. Provides proper spacing between shield components. Replace if damaged, worn, or missing during repairs.

Here is a replacement shoulder screw that is commonly used for various types of outdoor power equipment. Another name for the shoulder screw is a shoulder pin. The screw is often used to help secure the plastic wheels to the deck of a machine. However, different machines may have different uses for shoulder screws and other types of hardware. The shoulder screw is made from metal and is durable. However, the pin may still need to be replaced at some point. Whether it is because of corrosion or being bent, it is important to replace a failed screw with a new one. When performing maintenance on the machine, it is also possible that the screw could become lost, which would require a replacement. This is a genuine OEM replacement shoulder screw. It is sold individually and works with many types of makes and models. The screw is often used for edgers, snowblowers, lawn mowers, and chainsaws. Brands that have models that will be compatible with the shoulder screw include Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, MTD, Huskee, Yard-Man, and MasterCut.

Mulching blade cuts grass into fine clippings for nutrient-rich lawns. Replace when dull or damaged for cleaner cuts. Verify fit with your model number.

14.88" mulching blade for lawn mowers and tractors. 3-in-1 design mulches, bags, or side discharges clippings. Replace when dull or damaged. Verify fit.

Deck release pin secures the mower deck to the tractor frame. Replace if bent, broken, or missing to properly attach and support your cutting deck assembly.

Spindle drive belt for lawn tractor mower decks. Replace if worn, cracked, or slipping to restore proper blade engagement. Verify fit with your model number.

Want to mulch grass clippings instead of bagging? This mulch plug blocks the discharge chute to recirculate clippings for fine mulching action.

A flat idler pulley is a crucial piece of hardware designed for use with many different models of lawn mowers and snowblowers. It is compatible with products by brands such as Craftsman, Yard Machines, Yard Man, MTD, and Troy-Bilt.The flat idler pulley part is crucial for the proper functioning of the lawn mower because it connects to the idler bracket. The purpose of the flat idler pulley is to apply tension to the v-belt. The replacement process of the flat idler pulley will require a wrench.This flat idler pulley is made out of metal. It is sold individually. The flat idler pulley is an original OEM part sourced directly from the manufacturer, MTD.

Flat washer for lawn mowers and tractors. Replace if missing, corroded, or damaged during maintenance. Ensures secure fastening of components.

Idler bracket for lawn tractors and zero-turn mowers. Mounts to the frame to support the idler pulley. Replace if bent, cracked, or broken.

Deck skirt installs on the middle section of your mower deck to deflect grass clippings and debris. Replace if cracked, damaged, or missing.

Protective deck skirt that shields mower blades from objects and deck contact. Replace if cracked, broken, or missing to prevent blade damage.

Left-hand belt cover for 46-inch lawn tractors. Protects drive belts from debris and prevents damage. Replace if cracked or missing. Verify fit.

Protects and houses the deck drive belt on your lawn tractor. Replace if cracked, broken, or missing to prevent debris damage. Verify fit with your model.

Wing nut for lawn tractors and outdoor power equipment. Secures covers, guards, and components. Replace if stripped, missing, or damaged.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

Cable bracket for lawn tractors. Secures and routes control cables near the engine. Replace if bracket is bent, cracked, or missing to restore proper cable positioning.

Axle spacer for lawn tractors. Maintains proper wheel alignment and spacing on the axle assembly. Replace if worn, cracked, or missing.

Hex cap screw secures components on lawn tractors, tillers, snowblowers, and garden equipment. Replace if broken, stripped, or missing.

Stops blade movement when mower is disengaged. Replace if blades won't stop spinning after shutting off. Typical repair takes 30-45 minutes.

An authentic OEM replacement extension spring is an integral part of a lawn tractor or snowblowers brake system that helps to hold together and redistribute energy throughout the lower deck. When a driver applies the brakes, the lower deck has a tendency to continue moving forward with inertia. This extension spring helps to keep the parts in place and transfer a balance of energy. Although replacing the extension spring itself is a simple and straightforward process, gaining access to the spring is a little complicated as it requires removing the lawn mower or snowblower's lower deck. You will need a pair of pliers to remove the pins and cables that hold the lower deck in place but there is no other required hardware. Be sure to follow the user's manual as you remove the deck. This part is a top-quality replacement part sourced from its original manufacturer. It is designed to be used with Murray, Husky, Troy-Bilt Poulan, Yard Man, Yard Machines, Bolens, and MTD appliances. This part ships individually.

Blade adapter for lawn tractors. Connects the mower blade to the spindle shaft. Replace if cracked, stripped, or worn to ensure proper blade mounting.

Replacement deck assembly pin for lawn tractors. Holds deck components in place while allowing proper movement. Replace if bent, missing, or worn.

Belt guard pin secures the protective cover over drive belts on lawn tractors and mowers. Replace if bent, broken, or missing to maintain safe operation.

Flat washer for lawn tractors and outdoor power equipment. Replace if washer is missing, worn, or damaged during maintenance or repair work.

Deck wash nozzle for lawn mowers and tractors. Connects to your garden hose for easy underside deck cleaning. Replace if cracked, broken, or missing.
