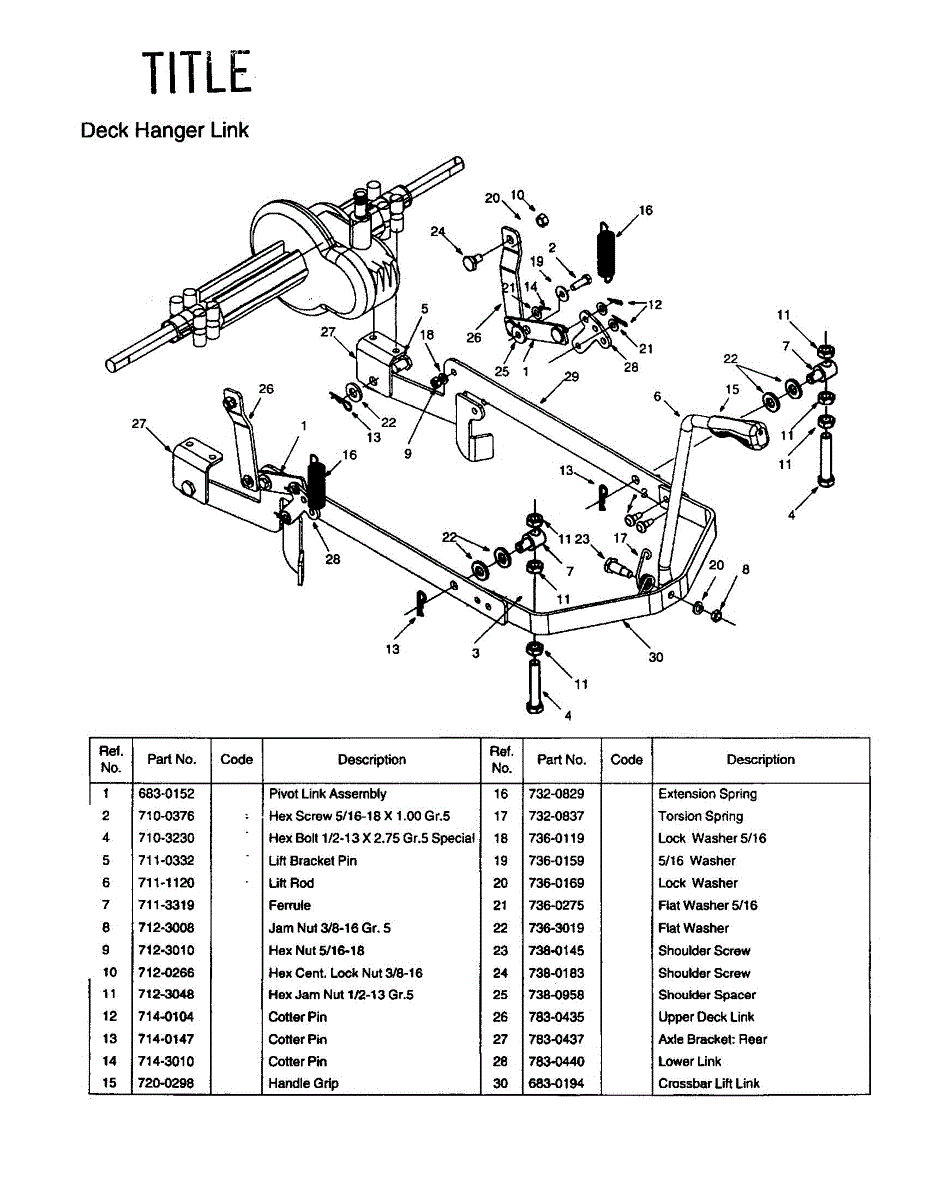

Parts for Mtd 13B-325-401: Deck Hanger Link Parts

This clevis pin is a metal fastener without threads like most screws. It has similarities to a bolt and is often inserted into a pre-drilled hole to secure two or several items together in yard and garden equipment. Clevis pins will have a hold through the end where cotter pins can be attached to secure the pins into place. Sometimes these pins can become corroded or experience damage which will require them to be replaced.If the clevis pin is falling out, broken, or damaged, it needs to be removed. Spraying it with penetrating oil and letting it sit for a few hours before pulling the cotter pin away from the clevis pin is the best technique. A pry bar can be used to take the pressure away from the clevis pin before hammering against the clevis pin to take it out. At that point, the new clevis pin can be installed.Created for use in chainsaws, lawnmowers, and snowblowers, this clevis pin fits lawn and garden equipment by MasterCut, Craftsman, Yard-Man, Toro, Yard Machines, Cub Cadet, MTD, and Murray. This is a genuine OEM product directly sourced from the manufacturer that comes as an individual component.

This genuine OEM replacement jam nut attaches to the idler bracket on a tiller. Jam nuts are a special type of nut designed to not unthread or strip out over time. Jam nuts are usually fastened on with another standard nut and then the two nuts are tightened against each other. Jam nuts can be easily identified from a standard nut because they are roughly half the size. Jam nuts can be lost while making repairs because of their small size. If lost, it might not affect the idler bracket immediately, but over time the standard nut may begin to slip or unthread. Therefore, the jam nut should be replaced as soon as possible. When making this replacement, be sure to unthread the standard nut as well and then tighten them both together using a wrench. This replacement jam nut is a high-quality part sourced from its original manufacturer. It is compatible with Troy-Bilt, Yard Man, Huskee, MTD, Ryobi, Yard Machines, and Cub Cadet tillers. This part does not ship with any additional hardware.

This cotter pin is an authentic OEM replacement part sourced directly from the manufacturer for use on many different lawn and garden machines in many different applications. Cotter pins are pins that are made of metal that are bent with or without curves on one side. The u-shaped pin is used to secure bolts in place. After installation, the ends of the pin are twisted to hold it tightly in place. One example of cotter pin use is on lawnmower wheels. After the wheel is placed on the shaft, the cotter pin slides through the hole on the end of the shaft to keep the wheel in place.Over time, cotter pins may become rusted, or the part being held together may need to be replaced. When the cotter pin is removed, a new one should be installed to ensure a tight hold. Use pliers to untwist or straighten the cotter pin for removal. Pull the cotter pin back through the hole using the pliers. To install a new cotter pin, push the pin through the hole and spread the ends in opposite directions once the pin is through the hole.This cotter pin is made of heavy-duty metal and is sold individually. It is designed for use in many different lawn and garden machines manufactured by various companies, including Craftsman, MTD, and Makita.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken, lost, or defective flat washer in a variety of outdoor power equipment models. Flat washers are a standard piece of hardware that can be used with a wide variety of equipment. They enable components to be tightly secured together by providing a larger surface area for screws or bolts. When working on or near an engine, it's important to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this flat washer, the appropriate owner's manual and equipment diagrams should be utilized.As an authentic replacement part, this flat washer is suitable for use on several different models of outdoor power equipment manufactured by MTD, Craftsman, Troy-Bilt, and other brands. This is a genuine part made of high-quality, durable metal and is sold individually.
