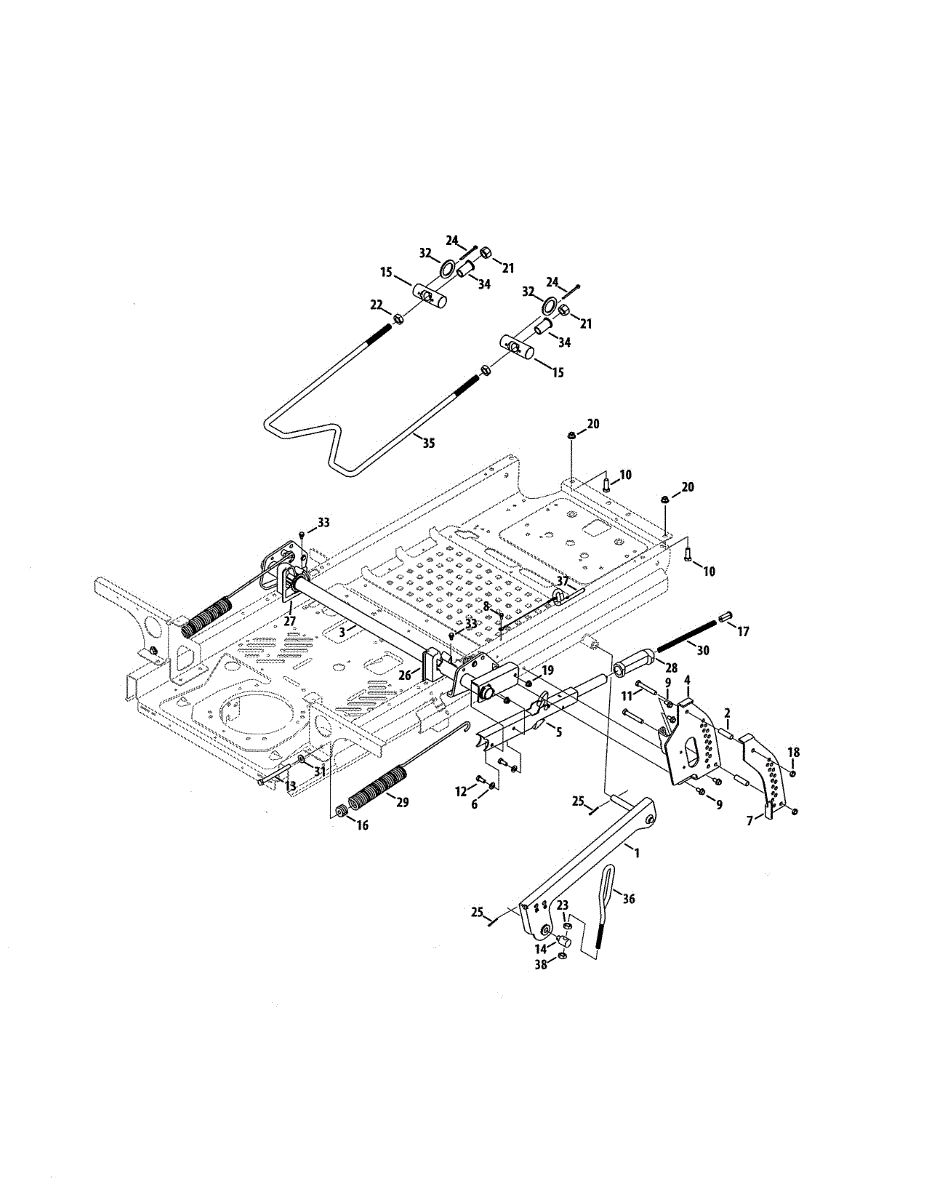

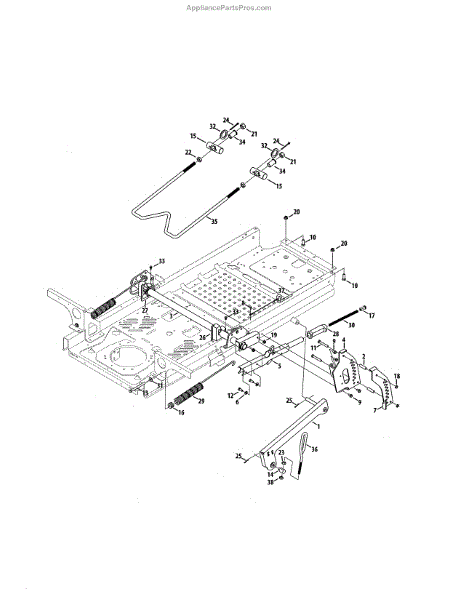

Parts for Mtd 17BSDALC099: Deck Lift Parts

This is a simple extension spring with an outside diameter of 0.38 and a slack length of 2.5. It is primarily used as an extension spring for snowblowers, but may be compatible with other lawn equipment. It’s designed to apply tension as the throttle is applied. The more gas there is, the more resistance will be present. Under most circumstances, replacement is easy. When the spring breaks or gets rusty, look at both points of attachment. Memorize where it’s attached, or take a picture, and remove the old spring using a pair of pliers if necessary. Install the new spring and the tool is ready to use. This is an OEM part sourced directly from MTD, and it is sold individually. It’s black in color and was initially designed for Troy-Bilt lawnmowers. However, because this is a versatile part, it has since been repurposed for a number of MTD and related machines in other brands. These include lawn tractors and snowblowers, as well as lawnmowers, in brands such as Ryobi, Yard Machines, Husky, and Cub Cadet.

The Hex Head Self-Tapping Screw is an OEM part for MTD outdoor power equipment. This screw is designed to securely fasten components of your equipment, providing reliable and durable connections. The thread size is 5/16 inches for major diameter, with 18 threads. The screw is 3/4 inches long and has a hexagonal or six-sided head.

Over time, the Hex Head Self-Tapping Screw can become damaged due to corrosion, stripping of the threads, or wear from frequent tightening and loosening. This can compromise the integrity of the connections and potentially lead to equipment malfunction.

Symptoms of a bad Hex Head Self-Tapping Screw include:

• Loose or wobbly components
• Difficulty tightening or loosening the screw
• Visible damage or corrosion on the screw

This OEM replacement part is designed for use with various models of MTD outdoor power equipment.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

This genuine OEM replacement jam nut attaches to the idler bracket on a tiller. Jam nuts are a special type of nut designed to not unthread or strip out over time. Jam nuts are usually fastened on with another standard nut and then the two nuts are tightened against each other. Jam nuts can be easily identified from a standard nut because they are roughly half the size. Jam nuts can be lost while making repairs because of their small size. If lost, it might not affect the idler bracket immediately, but over time the standard nut may begin to slip or unthread. Therefore, the jam nut should be replaced as soon as possible. When making this replacement, be sure to unthread the standard nut as well and then tighten them both together using a wrench. This replacement jam nut is a high-quality part sourced from its original manufacturer. It is compatible with Troy-Bilt, Yard Man, Huskee, MTD, Ryobi, Yard Machines, and Cub Cadet tillers. This part does not ship with any additional hardware.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

This flange lock nut is a metal component used in many types of lawn and garden equipment. It is the part that attaches to the rear wheel to keep it steady on any kind of terrain. It can also be used on handles and chutes for some equipment. The nut size is 3/8 and it has a thread size of 16. Most flange lock nuts will last for years. In some cases, the silicone ring inside the nut will wear down when it is loosened and tightened. When this happens, the flange lock nut will start to move around. It can start as minor slippage but often gets worse over time. It will need to be replaced but this is a simple task. Regardless of what equipment it is attached to, it simply needs to be unscrewed. Take off the old nut and replace it with the new one. This flange lock nut is an authentic OEM product that is sourced directly from the manufacturer. It is sold individually. The lock nut is made for use with lawnmowers, wood chippers, and edgers manufactured by MasterCut, Yard-Man, Bolens, Craftsman, Cub Cadet, Murray, Troy-Bilt, Yard Machines, MTD, and Huskee.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

This flat washer is used to attach the idler pulley in a number of small and medium sized gasoline powered engines. These engines include snow blowers, log splitters, riding mowers, lawn tractors, and chippers. Because the idler pulley is subject to a great deal of resistance when the pulley is engaged, eventually the pulley will wear out. Should there be a squealing sound when engaging the drive, the problem is likely the idler pulley. In these cases, the pulley must be replaced. It is a good idea to replace the surrounding hardware when replacing the idler pulley; tNhis includes the flat washer, which is subject to corrosion during heavy use. To replace the idler pulley, first detach the spark plug cap. If on a mower or tractor, drop the mower deck. Remove the original pulley and install in order: replacement pulley, hex bolt, flat washer, flange nut. Apart from dropping the mower deck, the only tools required to complete this installation may be a 9/16 ratchet and combination wrench. This washer is a genuine OEM replacement part, designed to perfectly replicate the original piece. This washer is compatible with Troy-Bilt, Yard Man, Yard Machines, MTD, and Craftsman devices.
