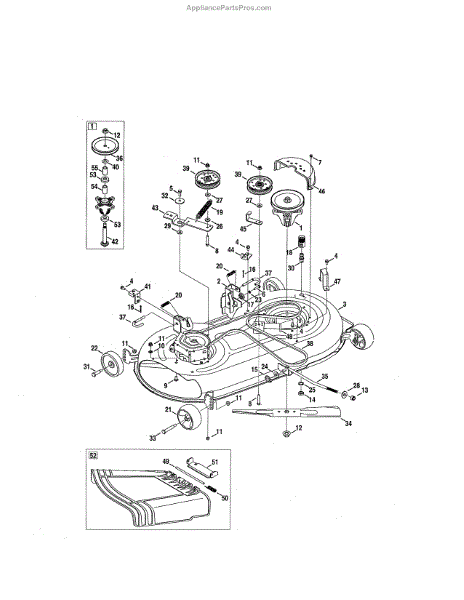

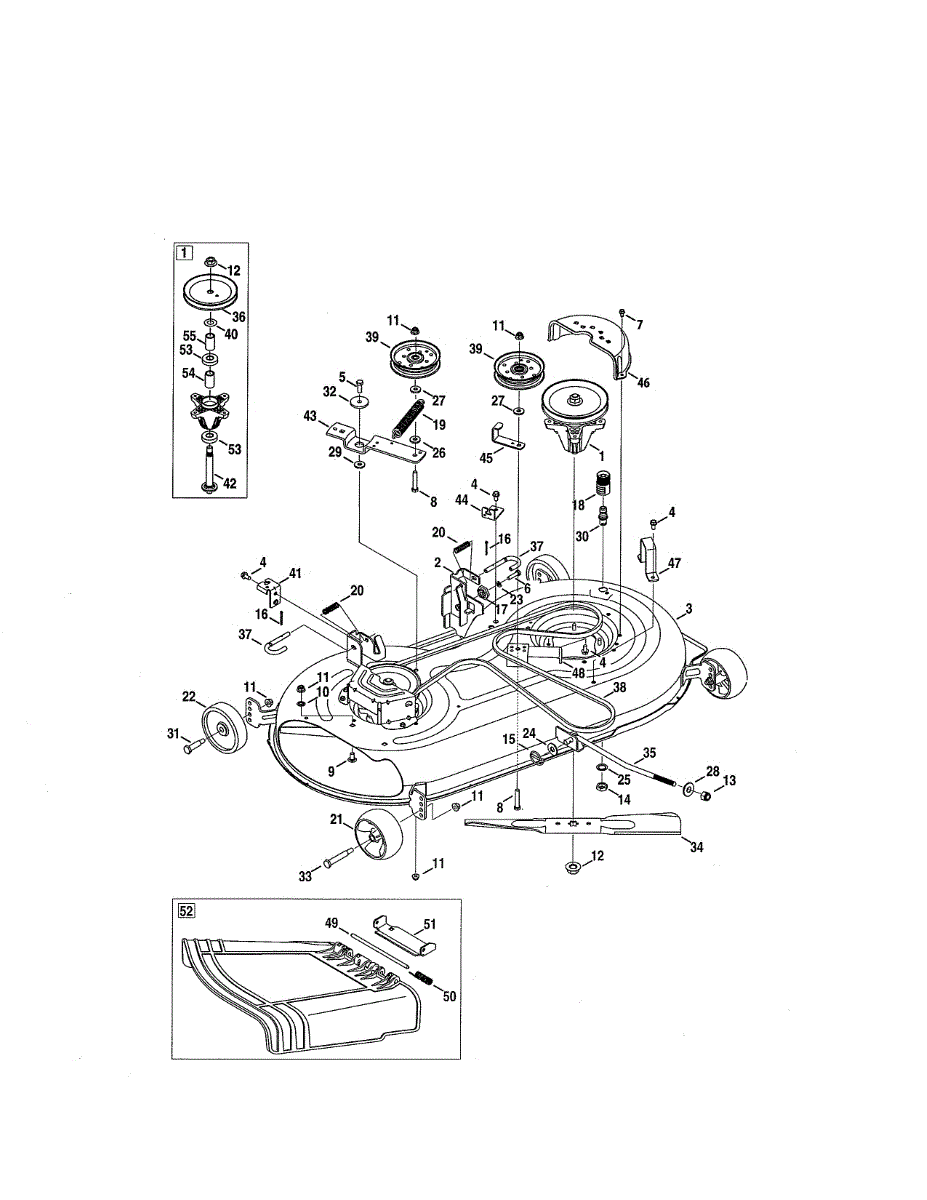

Parts for Mtd 13AR91PT099: Deck Parts

The Hex Head Self-Tapping Screw is an OEM part for MTD outdoor power equipment. This screw is designed to securely fasten components of your equipment, providing reliable and durable connections. The thread size is 5/16 inches for major diameter, with 18 threads. The screw is 3/4 inches long and has a hexagonal or six-sided head.

Over time, the Hex Head Self-Tapping Screw can become damaged due to corrosion, stripping of the threads, or wear from frequent tightening and loosening. This can compromise the integrity of the connections and potentially lead to equipment malfunction.

Symptoms of a bad Hex Head Self-Tapping Screw include:

• Loose or wobbly components
• Difficulty tightening or loosening the screw
• Visible damage or corrosion on the screw

This OEM replacement part is designed for use with various models of MTD outdoor power equipment.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

The replacement screw seen here is made from high-quality, durable metal. It is an identical replacement for a faulty screw in many types of lawn and garden equipment. The screw features a hex-bolt shaped head and is used for various applications in the machines. Owners will want to refer to diagrams of their model to ensure the correct application for the screw. A screw may need to be replaced for any number of different reasons. In some cases, the screw could become lost when making other repairs to the machine. It could also become bent or the threads could be damaged. Corrosion is also a possibility over time. Replacing the screw is typically considered a fast and easy repair. The screw is a genuine OEM replacement part that is sold individually. The screw can be used for many models of snowblower, lawnmower, chainsaw, tiller, string trimmer, log splitter, edger, and wood chipper. Compatible brands include Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This carriage bolt is a genuine MTD part, sold individually. This carriage bolt can be used as a replacement part in a variety of small engine outdoor appliances including lawn mowers, snowblowers, and chainsaws. The purpose of the carriage bolt for one of these outdoor appliances is to work in conjunction with a nut as a fastening component to affix metal to metal or metal to wood so that the parts remain attached to one another while the appliance is in operation.The carriage bolt in an outdoor appliance is a small component that can be easily lost or misplaced or can be damaged through general wear and tear over long-term use or as the result of an accidental collision with a hard object. If the carriage bolt is lost, misplaced, or sufficiently damaged as to not maintain the stable attachment of two or more components, the carriage bolt should be replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This carriage bolt is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, Yard Man, and MasterCut.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.

This part is a replacement nut. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a defective or lost nut in outdoor power equipment.Nuts help to secure different equipment components together properly. They will need to be replaced if corroded, stripped, lost, or unable to properly fasten together parts. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this nut, the appropriate owner's manual and equipment diagrams should be referred to. This nut is a genuine OEM part made of durable metal and is sold individually. It is suitable for use with outdoor power equipment that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This internal lock washer is a genuine MTD part, sold individually. This internal lock washer can be used as a replacement part for lawn mowers, snowblowers, tillers, and lawn tractors. The purpose of the internal lock washer is to stop the nut or bolt head from gradually coming loose over time.The internal lock washer is a small component that is easily lost or misplaced within the lifespan of a small engine outdoor appliance. If the internal lock washer becomes stripped over time or is subject to another form of damage that loosens or warps it, the component should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This internal lock washer is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Yard Man, Yard Machines, Bolens, Toro, Ryobi, Troy-Bilt, Murray, Huskee, Montgomery Wards, and MasterCut.

This flat washer is a genuine MTD part, sold individually. This flat washer can be used as a replacement part in lawn mowers, snowblowers, tillers, edgers, chainsaws, log splitters, and wood chippers. The purpose of a flat washer for one of these small engine outdoor appliances is to serve as a fastening component, spacing internal parts out to reduce friction.The flat washer in a small engine outdoor appliance is a small component that can easily be lost or misplaced, in which case it should be replaced as soon as the operator notices its absence. The flat washer can also be stripped away over time, in which case it should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This flat washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, MasterCut, Yard Man, Turf King, Montgomery Wards, Husky, and Murray.

This flat washer is used to attach the idler pulley in a number of small and medium sized gasoline powered engines. These engines include snow blowers, log splitters, riding mowers, lawn tractors, and chippers. Because the idler pulley is subject to a great deal of resistance when the pulley is engaged, eventually the pulley will wear out. Should there be a squealing sound when engaging the drive, the problem is likely the idler pulley. In these cases, the pulley must be replaced. It is a good idea to replace the surrounding hardware when replacing the idler pulley; tNhis includes the flat washer, which is subject to corrosion during heavy use. To replace the idler pulley, first detach the spark plug cap. If on a mower or tractor, drop the mower deck. Remove the original pulley and install in order: replacement pulley, hex bolt, flat washer, flange nut. Apart from dropping the mower deck, the only tools required to complete this installation may be a 9/16 ratchet and combination wrench. This washer is a genuine OEM replacement part, designed to perfectly replicate the original piece. This washer is compatible with Troy-Bilt, Yard Man, Yard Machines, MTD, and Craftsman devices.

Here is a replacement shoulder screw that is commonly used for various types of outdoor power equipment. Another name for the shoulder screw is a shoulder pin. The screw is often used to help secure the plastic wheels to the deck of a machine. However, different machines may have different uses for shoulder screws and other types of hardware. The shoulder screw is made from metal and is durable. However, the pin may still need to be replaced at some point. Whether it is because of corrosion or being bent, it is important to replace a failed screw with a new one. When performing maintenance on the machine, it is also possible that the screw could become lost, which would require a replacement. This is a genuine OEM replacement shoulder screw. It is sold individually and works with many types of makes and models. The screw is often used for edgers, snowblowers, lawn mowers, and chainsaws. Brands that have models that will be compatible with the shoulder screw include Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, MTD, Huskee, Yard-Man, and MasterCut.

This is a genuine replacement shoulder screw that is compatible with select models of lawn tractors. The shoulder screw has multiple applications in lawn tractors, where it is typically used as some kind of axle for wheels or other components. Over time, this type of screw can become worn from repetitive motion or the threads can start to strip. If the screw fails or is unable to work effectively, it can affect whatever it is responsible for securing or holding, as well. This could result in the entire machine not working until a replacement is made. This is a genuine manufacturer's replacement manufactured by MTD. It is compatible with their lawn tractors as well as those from Yard Machines, Troy-Bilt, Yard Man, Husky, and Cub Cadet. The screw is made of durable metal and is sold as a single unit. This is considered specialty hardware and is also sometimes referred to as a shoulder bolt.

This part is a replacement deck lift rod. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a defective or broken deck lift rod in lawn tractors.The deck lift rod lowers and raises the tractor deck. If the rod is bent, dented, snapped, or otherwise rendered ineffective, it should be immediately replaced with a genuine OEM part. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on the installation of this particular deck lift rod, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality metal. This deck lift rod can be used with a variety of lawn tractor models manufactured by MTD, Craftsman, and other brands.

This replacement part is a deck pulley. This is a genuine replacement part made by MTD. This type of pulley typically connects multiple parts together so they can operate properly when the engine is powered on. This ensures the parts are able to run smoothly during use. A new deck pulley might be needed if the current one has become worn down over time. A pulley will experience a great deal of friction with use. This can then cause it to malfunction and no longer work properly. If the user notices unusual noises coming from inside of the appliance, it can be due to a pulley that has moved out of place. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This is a flat washer that can be used with bolts and screws on many kinds of lawn and garden equipment. Before a bolt can be fastened to a surface, a fastener needs to be inserted through the end. A washer can be used with these items to help distribute the load. Washers are also responsible for decreasing heat and friction while a fastener is tightened to a surface. Washers can also be used to offer electrical insulation or operate as spacers.Even though washers are made of durable materials, they can be damaged over time. If the shape of the washer is bent or cut in half, this indicates that it needs to be replaced. A socket wrench or screwdriver can be used to make the replacement. Remove the screw or bolt, remove the fastener, and add the washer to the fastener before it screws back in.This flat washer is a genuine OEM replacement part sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, and edgers by Craftsman, MasterCut, Cub Cadet, Turf King, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD. It comes as an individual part.

This engagement bracket is a genuine MTD part designed for lawn tractors. On most models, this engagement bracket is installed on the top of the lawn tractor. It usually works with the blade engagement cable.This engagement bracket is a genuine OEM part sourced directly from the manufacturer and is sold individually. Like many metal parts that are exposed to open air and elements, the engagement bracket may become worn over time and need to be replaced. If replacing the blade engagement cable, it is a good idea to also replace the bracket.This engagement bracket is compatible with lawn tractors manufactured by Brute, Craftsman, Columbia, Huskee, Husky, Mastercut, Mtd Gold, Murray, White Outdoor, Yard Machines, and Yard-Man between 2010 and 2014. It may also be compatible with lawn tractors manufactured by Cub Cadet and Troy-Bilt.

This replacement belt cover is made of plastic and attaches to the deck of select riding lawn mowers and lawn tractors. The belt cover is responsible for protecting the belt from exposure to the elements and potential impact damage so that it can work to rotate the mower blade and help the machine run properly. If the belt cover becomes damaged or lost, it could leave the belt exposed and cause serious issues. Replacing the belt cover will resolve the issue and is a fairly simple repair. A wrench or socket set will be helpful in performing the repair. This genuine OEM part is manufactured to exact standards by MTD and can be used in select models from the brand. It is also compatible with select mowers from Husky, Cub Cadet, Yard-Man, and Troy-Bilt.This genuine belt cover is made of durable plastic and sold individually. Let the engine cool completely and disconnect the power before performing any repairs on or around the mower deck.

This replacement part is a torsion spring and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This spring is found in different types of lawn mowers and is able to assist other parts working together to allow the engine to run properly and smoothly. Though this spring is small it is an important part of many machines.A new torsion spring might be needed if the current one is damaged or missing. Because of the nature of the spring, it is not unusual for it to become stripped or snapped due to normal wear and tear within the machine. Unusual noises may come from inside the machine if the torsion spring is not working properly. This torsion spring is sold individually and is sourced directly from the manufacturer to ensure proper fit. This is a genuine OEM replacement part.

This chute bracket is an authentic OEM replacement part sourced directly from the manufacturer for use on lawn mowers and lawn tractors to hold the discharge chute in place on the machine. The discharge chute directs the grass trimmings and debris out from under the lawnmower so that there is no buildup underneath the machine. If the bracket holding the discharge chute becomes loose, it may fall off during use, and the chute would then fall off the machine. Over time, the mower's vibrations may cause the screws holding the bracket to loosen and then come out, causing the bracket to fall off. If the bracket is missing, it should be replaced to ensure the discharge chute stays attached.Routine inspection of screws and nuts on the mower can prevent the bracket from falling off the machine. When replacing the bracket, make sure to keep the screws used to attach it to the lawnmower and reuse them to install the one. Make sure the screws are secure but not overtightened.This chute bracket is a metal part that is individually sold. It does not include fastening hardware. This bracket is designed for use on lawn mowers and lawn tractors manufactured by Troy-Bilt, Yard Machines, Yard Man, and MTD.

The discharge chute assembly is located on the deck of the lawnmower. It is made out of durable plastic but can be damaged by impacts. It also can experience wear and tear that make it break or become weaker. If the discharge chute is broken or damaged, it will need to be replaced. Usually, the discharge chute will have visual wear or damage that alert a user to replace the part.The replacement of a discharge chute assembly is simple and takes only a few minutes. A socket set will be needed to go through the process. The original discharge chute assembly can be removed using the socket set. Replace it with the new replacement part. Before replacing the parts, make sure the lawnmower is powered off, and the spark plug wire has been disconnected.This is an authentic OEM replacement part that is sourced directly from the manufacturer. The part is sold as an individual unit. This discharge chute assembly is made for use with lawnmowers manufactured by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Yard-Man, and MasterCut.

A ball bearing is a common type of rolling-element bearing. It will use balls to keep space between the bearing races and eliminate friction and contact between moving parts. Ball bearings used in lawn and garden equipment ensure that axial loads and radial loads are evenly supported and that there is only a limited amount of rotational friction on the component. It distributes weight evenly, but will undergo constant wear and tear from vibration, heat, and friction and will need replacement regularly. This ball bearing is a genuine OEM part suited to use in Craftsman, Cub Cadet, Ryobi, Troy-Bilt, MTD, Huskee, Yard Machines, Bolens, Mastercut, and Yard-Man equipment. It may be needed for repair work done on a lawnmower, snowblower, tiller, edger, or a log splitter.
