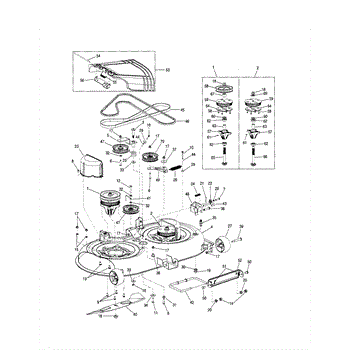

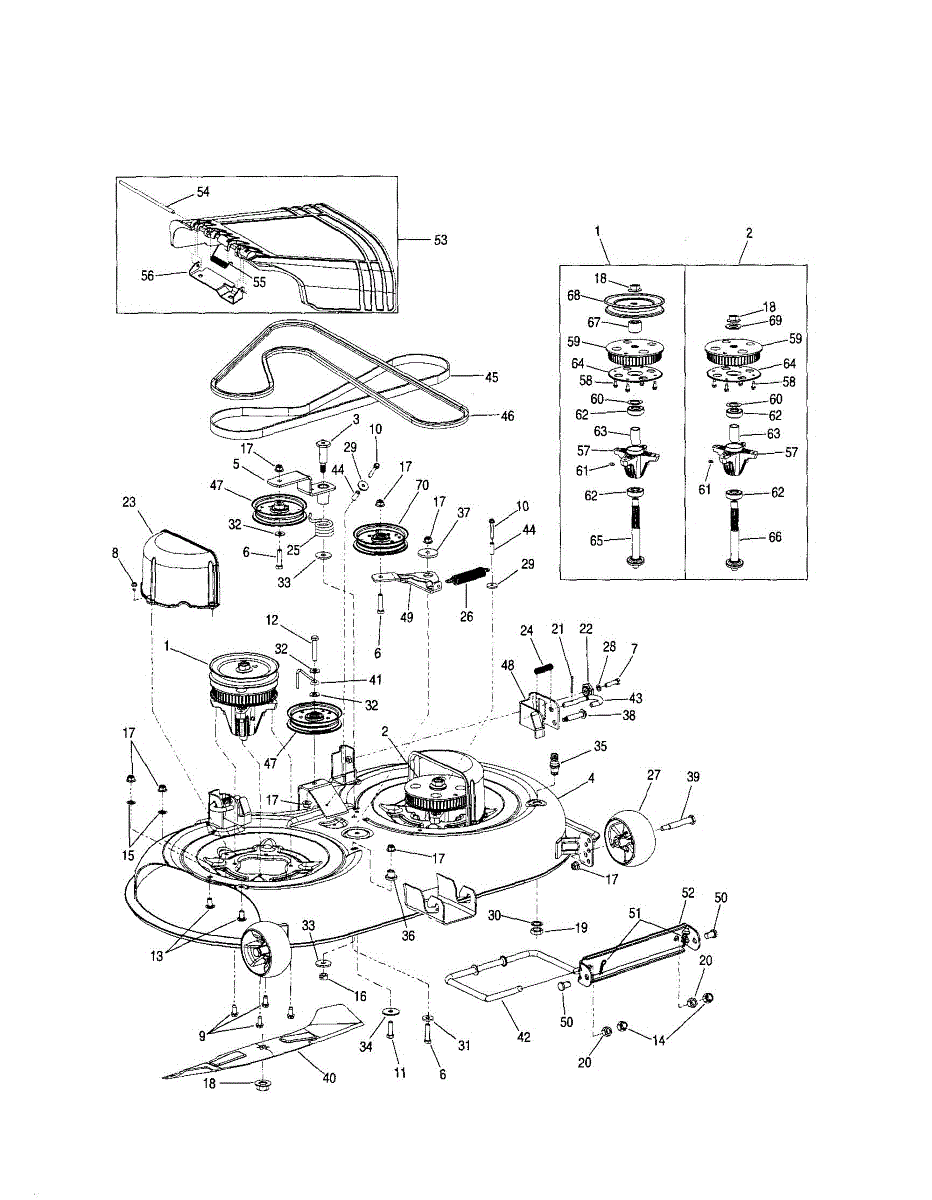

Parts for Craftsman 247289330: Deck / Spindle / Chute Deflector Parts

Blade won't spin or wobbles excessively? This lawn tractor spindle assembly supports the pulley shaft and rotates mower blades on 38" and 42" decks.

Fix uneven cuts or blade wobble with this lawn tractor spindle assembly. Enables smooth blade rotation for even mowing. Moderate DIY repair.

Shoulder bolt assembly for lawn tractors and riding mowers. Replaces broken, stripped, or missing bolts on deck, frame, or attachment points.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Hex head self-tapping screw for outdoor power equipment. Securely fastens components throughout your machine. Replace if missing, stripped, or worn.

Hex screw for lawn tractors and garden equipment. Replaces missing, loose, or deteriorated fasteners in various mounting applications across the machine.

The replacement screw seen here is made from high-quality, durable metal. It is an identical replacement for a faulty screw in many types of lawn and garden equipment. The screw features a hex-bolt shaped head and is used for various applications in the machines. Owners will want to refer to diagrams of their model to ensure the correct application for the screw. A screw may need to be replaced for any number of different reasons. In some cases, the screw could become lost when making other repairs to the machine. It could also become bent or the threads could be damaged. Corrosion is also a possibility over time. Replacing the screw is typically considered a fast and easy repair. The screw is a genuine OEM replacement part that is sold individually. The screw can be used for many models of snowblower, lawnmower, chainsaw, tiller, string trimmer, log splitter, edger, and wood chipper. Compatible brands include Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Carriage bolt for riding mowers and lawn tractors. Secures deck components and structural parts. Replace if bolt is stripped, broken, or missing.

Hex nut fastener for lawn tractors, tillers, and other outdoor power equipment. Secures components throughout the machine. Replace if stripped or missing.

Replace a missing, damaged, or worn push nut on your lawn tractor or riding mower. This fastener securely holds parts in place during operation.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Replaces a stripped, damaged, or missing 5/8" hex flange nut on your lawn mower or snow thrower. Secures blades and other components with integrated washer.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

Deck height adjustment gear for lawn tractors and riding mowers. Replaces broken or worn gears that control cutting deck position and leveling.

Right-hand belt cover for 42-inch lawn tractor mowing decks. Replace if cracked, missing, or damaged to protect drive belts from debris. Verify fit with your model number before ordering.

Compression spring for lawn mowers and outdoor power equipment. Replaces broken, worn, or missing springs. Essential hardware for proper operation.

Extension spring for lawn tractors and riding mowers. Replace if stretched, broken, or causing uneven tension. Verify fit with your model number.

5-inch diameter deck roller wheel for lawn tractors and riding mowers. Replaces cracked, worn, or missing deck wheels that support smooth cutting deck operation.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Flat washer for lawn tractors and outdoor power equipment. Secures fasteners and prevents loosening. Replace if worn, damaged, or missing during repair.

If bolts keep loosening on your lawn mower or snowblower, this internal lock washer prevents gradual loosening. Easy DIY fix in minutes.

Replacement flat washer for lawn mowers and outdoor power equipment. Replaces worn, missing, or damaged washers. Installs between bolts and components.

Flat washer for lawn mowers and outdoor power equipment. Replaces damaged, missing, or worn washers. Standard hardware component for various models.

Flat washer for lawn tractors and riding mowers. Secures bolts and distributes load across assemblies. Replace if worn, corroded, or missing.

Small metal washer that secures parts on lawn tractors and riding mowers. Replace if worn, cracked, or missing to properly fasten components together.

Shoulder spacer for lawn tractors and riding mowers. Installs to maintain proper spacing between components. Replace if worn, damaged, or missing.

Shoulder bolt for riding mowers and lawn tractors. Used as an axle for wheels and deck components. Replace if bent, worn, or stripped from regular use.

Uneven cut or poor mulching? This lawn tractor blade cuts grass and mulches clippings efficiently. Moderate DIY difficulty. Compatible with many models.

Belt keeper rod for lawn tractors and riding mowers. Holds drive belts in proper alignment during operation. Replace if bent or damaged. Confirm fit.

Deck release pin secures the mower deck to the tractor frame. Replace if bent, broken, or missing to properly attach and support your cutting deck assembly.

Deck spacer that attaches to the mower deck shell to create proper spacing between components and reduce friction. Replace if cracked or missing.

This replacement part is a timing belt. This is a genuine replacement part made by MTD. This part is very important to all types of machinery that operate with engines. The belt connects the engine's crankshaft to the camshaft and allows the pistons to operate properly so that the entire engine runs smoothly. A new timing belt might be needed if the current one is missing or damaged in any way. It is common for belts to become torn or stripped over time and should be replaced if this is the case. If the user notices unusual noises coming from inside the machine it might be due to a malfunctioning timing belt. The engine should be completely shut down and cooled off before attempting to replace this part. This is a genuine OEM replacement part which ensures proper fit. This part is sold individually and is sourced directly from the manufacturer.

V-belt for lawn tractor drive systems. Replace when slipping, cracking, or glazed to restore power transfer. Confirm fit with your model number.

Tension bracket for front-engine lawn tractors. Mounts to the frame to maintain proper belt alignment. Replace if bent, cracked, or broken hardware.

Metal clevis pin secures parts on lawn tractors and riding mowers. Replace if bent, worn, or missing to restore proper attachment and connection.

Secures moving parts and linkages on lawn mowers and tractors. Replace if bent, missing, or corroded to maintain safe equipment operation.

Chute hinge pin for lawn tractors and riding mowers. Secures the discharge chute hinge assembly. Replace if bent, broken, or missing to restore proper fit.

This replacement part is a torsion spring and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This spring is found in different types of lawn mowers and is able to assist other parts working together to allow the engine to run properly and smoothly. Though this spring is small it is an important part of many machines.A new torsion spring might be needed if the current one is damaged or missing. Because of the nature of the spring, it is not unusual for it to become stripped or snapped due to normal wear and tear within the machine. Unusual noises may come from inside the machine if the torsion spring is not working properly. This torsion spring is sold individually and is sourced directly from the manufacturer to ensure proper fit. This is a genuine OEM replacement part.

Flat washer for lawn mowers and outdoor power equipment. Secures bolts and screws in place. Replace if corroded, broken, worn, or missing hardware.

This grease fitting attaches to the cast pivot bar on many types of garden and lawn equipment. It is made of durable metal and ensures that internal parts of the equipment are lubricated so they operate at their full potential. Sometimes a grease fitting can become worn damaged and need to be replaced.If a lawn tool no longer seems to be properly lubricated, the grease fitting could be the cause. A pair of pliers will be required to make the replacement. Clean the area near the grease fitting and then use a hex wrench to remove it from the machine. Take the new fitting and place it into the hole and tighten it before applying grease.This is a genuine OEM replacement grease fitting that is sourced directly from the manufacturer. The part is sold individually. The fitting is compatible with chipper shredders, lawn tractors, snowblowers, string trimmers, edgers, chainsaws, and lawnmowers manufactured by Yard-Man, Cub Cadet, Troy-Bilt, Craftsman, Ryobi, Murray, Broan, Yard Machines, Huskee, Montgomery Wards, Bolens, MasterCut, and MTD.

A ball bearing is a common type of rolling-element bearing. It will use balls to keep space between the bearing races and eliminate friction and contact between moving parts. Ball bearings used in lawn and garden equipment ensure that axial loads and radial loads are evenly supported and that there is only a limited amount of rotational friction on the component. It distributes weight evenly, but will undergo constant wear and tear from vibration, heat, and friction and will need replacement regularly. This ball bearing is a genuine OEM part suited to use in Craftsman, Cub Cadet, Ryobi, Troy-Bilt, MTD, Huskee, Yard Machines, Bolens, Mastercut, and Yard-Man equipment. It may be needed for repair work done on a lawnmower, snowblower, tiller, edger, or a log splitter.

Spindle shaft fixes uneven cuts, blade wobbling, or excessive vibration on lawn tractors. Essential mower deck component for smooth blade rotation.

Experiencing uneven cuts or wobbly blades? This spindle shaft connects the blade to the mower deck. Direct replacement for common lawn tractor models.

Deck timing pulley maintains proper drive belt alignment for smooth mower deck operation. Replace if worn, cracked, or causing belt slippage. Verify fit.

Flat washer for lawn mowers, tractors, tillers, and snow blowers. Replace if worn, damaged, or missing to ensure proper fastener spacing and tension.

Idler pulley maintains belt tension for smooth drive operation. Replace if belt slips, wobbles, or makes noise. Confirm fit with your model number.

Tractor won't start or loses power? This electrical fuse protects against current overload. Simple 5-minute replacement restores safe operation.
