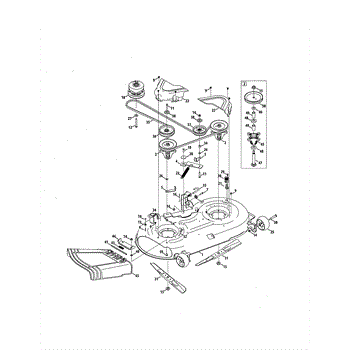

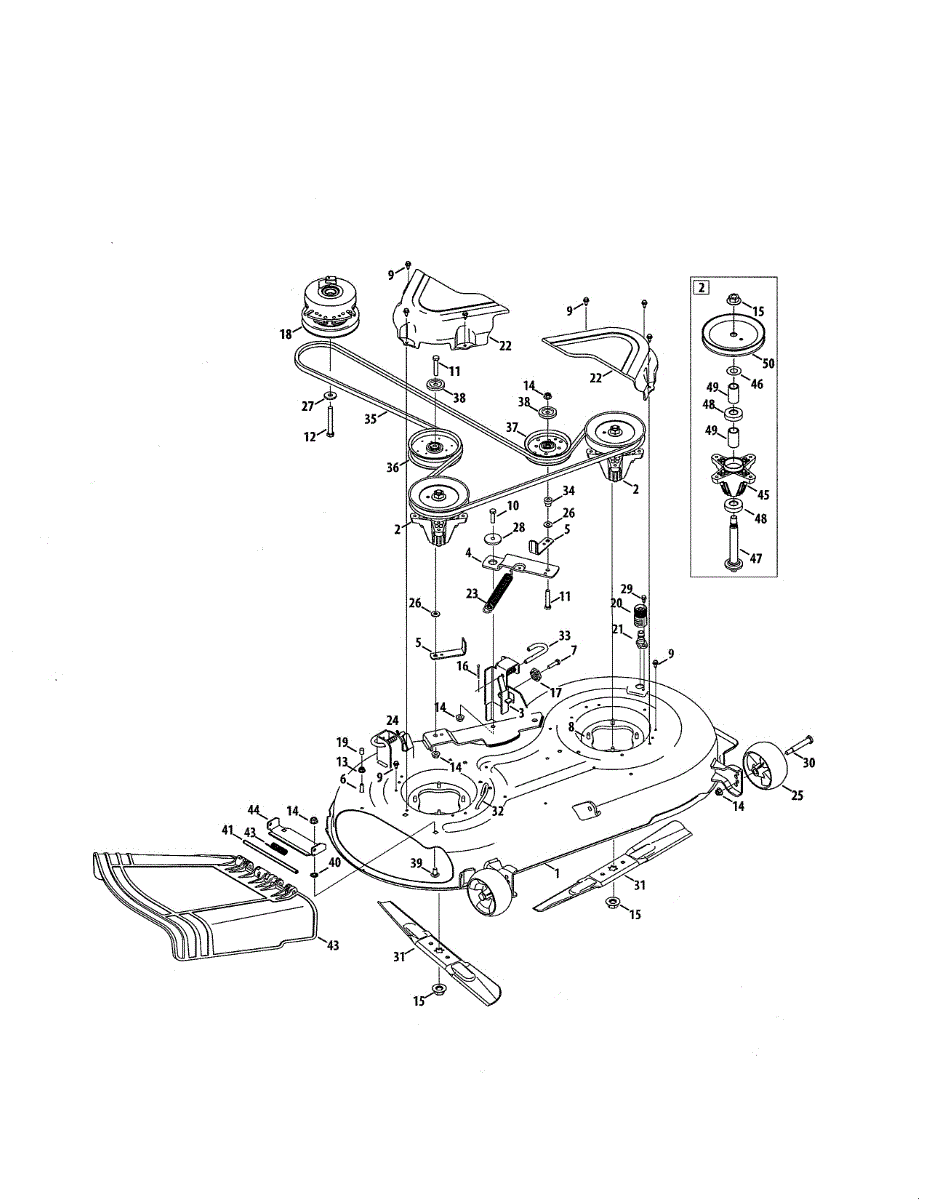

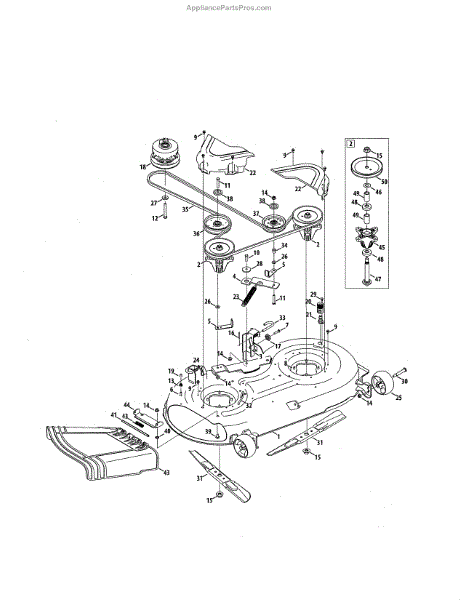

Parts for Craftsman 247204110: Deck / Spindle Parts

This is a Craftsman lawn tractor 42 inch deck. This houses the blades of a lawn tractor, so maintaining this part is important. If the mower deck is damaged through impacts with objects or due to rust, it should be replaced. It is recommended to place a piece of cardboard under the deck to make it easier to slide out once it is disconnected. Make sure the PTO is off, and drop the deck level to the ground. Next, the belt keeper needs to come off. It is located in front of the deck. There is a self-tapping screw holding it that will need a socket to take out. Take note of the hole it is attached to, so the new deck can go into the same hole. On both sides front and back, there is a bowtie pin that connects the deck support rod to the lift arm to the deck that pliers can pull out. Take out the support rod and let the deck drop to the ground. Then take out the PTO cable with another pin and pull out the PTO. Lastly, remove the spring and drag the deck out. This is a genuine OEM part sourced directly from the manufacturer and sold individually.

Left-hand deck hanger bracket for riding mowers. Secures the mower deck to the tractor frame. Replace if cracked, bent, or missing for proper deck support.

Replace a worn idler pivot bracket causing belt slippage or unusual noise on your riding mower. Straightforward repair restores proper tension.

Hex cap screw for securing components on lawn mowers, tractors, and outdoor power equipment. Replace if stripped, rusted, or missing hardware.

Hex screw hardware for securing components on mowers and outdoor power equipment. Replace if stripped, rusted, or missing for proper assembly.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

Hex screw for lawn tractors and garden equipment. Replaces missing, loose, or deteriorated fasteners in various mounting applications across the machine.

The replacement screw seen here is made from high-quality, durable metal. It is an identical replacement for a faulty screw in many types of lawn and garden equipment. The screw features a hex-bolt shaped head and is used for various applications in the machines. Owners will want to refer to diagrams of their model to ensure the correct application for the screw. A screw may need to be replaced for any number of different reasons. In some cases, the screw could become lost when making other repairs to the machine. It could also become bent or the threads could be damaged. Corrosion is also a possibility over time. Replacing the screw is typically considered a fast and easy repair. The screw is a genuine OEM replacement part that is sold individually. The screw can be used for many models of snowblower, lawnmower, chainsaw, tiller, string trimmer, log splitter, edger, and wood chipper. Compatible brands include Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Hex cap screw for riding mowers and lawn tractors. Secures various components and panels. Replace if stripped, rusted, missing, or damaged.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Replaces a stripped, damaged, or missing 5/8" hex flange nut on your lawn mower or snow thrower. Secures blades and other components with integrated washer.

Secures wheels and attachments to axles on lawn mowers and tractors. Replace if bent, rusted, broken, or lost to restore safe equipment operation.

Deck height adjustment gear for lawn tractors and riding mowers. Replaces broken or worn gears that control cutting deck position and leveling.

Blades won't engage or spinning constantly? This riding mower blade clutch connects the drive shafts to control blade engagement for proper cutting.

Nozzle adapter for lawn tractors and riding mowers. Connects hoses or tubes in the fuel or deck wash system. Replace if cracked, stripped, or missing.

Replace your riding mower's belt cover to protect drive components from debris and damage. Verify fit with your model number before ordering.

Replacement extension spring for lawn tractors and riding mowers. Controls movement of mechanical parts. Order a new spring if yours is stretched or broken.

5-inch diameter deck roller wheel for lawn tractors and riding mowers. Replaces cracked, worn, or missing deck wheels that support smooth cutting deck operation.

This flat washer is used to attach the idler pulley in a number of small and medium sized gasoline powered engines. These engines include snow blowers, log splitters, riding mowers, lawn tractors, and chippers. Because the idler pulley is subject to a great deal of resistance when the pulley is engaged, eventually the pulley will wear out. Should there be a squealing sound when engaging the drive, the problem is likely the idler pulley. In these cases, the pulley must be replaced. It is a good idea to replace the surrounding hardware when replacing the idler pulley; tNhis includes the flat washer, which is subject to corrosion during heavy use. To replace the idler pulley, first detach the spark plug cap. If on a mower or tractor, drop the mower deck. Remove the original pulley and install in order: replacement pulley, hex bolt, flat washer, flange nut. Apart from dropping the mower deck, the only tools required to complete this installation may be a 9/16 ratchet and combination wrench. This washer is a genuine OEM replacement part, designed to perfectly replicate the original piece. This washer is compatible with Troy-Bilt, Yard Man, Yard Machines, MTD, and Craftsman devices.

Flat washer for lawn tractors and riding mowers. Secures bolts and distributes load across assemblies. Replace if worn, corroded, or missing.

Shoulder spacer for lawn tractors and riding mowers. Installs to maintain proper spacing between components. Replace if worn, damaged, or missing.

Replace a missing, stripped, or damaged shoulder screw on your lawn mower or tractor. This fastener secures components and maintains proper alignment.

Shoulder bolt for riding mowers and lawn tractors. Used as an axle for wheels and deck components. Replace if bent, worn, or stripped from regular use.

Replacement spring rod for lawn tractors and riding mowers. Replace your broken, bent, or missing spring rod to restore proper linkage operation.

Deck release pin for riding mowers and tractors. Secures mower deck to chassis. Replace if bent, broken, or missing to restore proper deck attachment.

This replacement part is a pulley spacer intended for use in different lawn mowers. This is a genuine replacement part made by MTD. Pulley spacers allow the pulley to rotate while providing a gap so that friction does not build up inside the machine and create extra heat.A new pulley spacer might be needed if the current one is damaged or broken in any way. It is common for this part to be replaced after years of normal wear and tear. Be sure the appliance is completely powered down and cooled off before attempting to replace this part. For more detailed instructions on how to replace this specific part, please reference the user guide.This is an OEM part sourced directly from the manufacturer. It is sold individually. This replacement part is compatible with lawn mowers made by MTD.

This replacement part is a belt and is intended for use in a variety of lawn equipment. This is a genuine replacement part made by MTD. Belts are important to many appliances and have many responsibilities. Belts are used to keep everything inside the machine running smoothly as the systems and parts turn. A new belt might be needed if the current one is loose, stretched out, or damaged in any way. The user can tell if the belt is not operating properly if there are abnormal noises coming from the equipment. Always double check the size of the belt as different machines require different specific parts. Be sure the equipment is completely powered down and cooled off before attempting to repair an appliance. For more detailed instructions on how to install this specific part, see the owner's manual. This is an OEM part sourced directly from the manufacturer. It is sold individually. This replacement part is compatible with different types of lawn equipment made by MTD.

If your mower belt is slipping or squealing, this idler pulley may need replacement. Guides and tensions drive belts in the engine. Moderate DIY repair.

Idler pulley ensures proper belt tension and synchronizes rotating components on lawn tractors and riding mowers. Replace if worn or noisy. Verify fit.

Secures and protects the idler pulley on lawn tractors and riding mowers. Replace if cracked, loose, or missing to maintain proper belt tension.

Carriage bolt for riding mowers and lawn tractors. Secures deck components and structural parts. Replace if bolt is stripped, broken, or missing.

Replace a missing, damaged, or worn push nut on your lawn tractor or riding mower. This fastener securely holds parts in place during operation.

Chute hinge pin for lawn tractors and riding mowers. Secures the discharge chute hinge assembly. Replace if bent, broken, or missing to restore proper fit.

Replace your cracked or broken lawn tractor discharge chute assembly. Mounts to the mower deck to direct grass clippings away from the cutting area.

This replacement part is a torsion spring and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This spring is found in different types of lawn mowers and is able to assist other parts working together to allow the engine to run properly and smoothly. Though this spring is small it is an important part of many machines.A new torsion spring might be needed if the current one is damaged or missing. Because of the nature of the spring, it is not unusual for it to become stripped or snapped due to normal wear and tear within the machine. Unusual noises may come from inside the machine if the torsion spring is not working properly. This torsion spring is sold individually and is sourced directly from the manufacturer to ensure proper fit. This is a genuine OEM replacement part.

Holds the discharge chute securely in place on your lawn tractor deck. Replace if bracket is cracked, broken, bent, or missing to properly mount the chute.

Flat washer for lawn tractors and garden equipment. Distributes load under bolt heads and prevents surface damage. Replace if worn or missing.

Fix wobbling mower blades with this spindle shaft. Common repair for uneven cuts and blade vibration. Moderate DIY with socket set and hammer.

A ball bearing is a common type of rolling-element bearing. It will use balls to keep space between the bearing races and eliminate friction and contact between moving parts. Ball bearings used in lawn and garden equipment ensure that axial loads and radial loads are evenly supported and that there is only a limited amount of rotational friction on the component. It distributes weight evenly, but will undergo constant wear and tear from vibration, heat, and friction and will need replacement regularly. This ball bearing is a genuine OEM part suited to use in Craftsman, Cub Cadet, Ryobi, Troy-Bilt, MTD, Huskee, Yard Machines, Bolens, Mastercut, and Yard-Man equipment. It may be needed for repair work done on a lawnmower, snowblower, tiller, edger, or a log splitter.

Deck blade drive pulley for lawn tractors and riding mowers. Attaches to spindle shaft to rotate mower blades via belt. Replace if cracked or worn.
