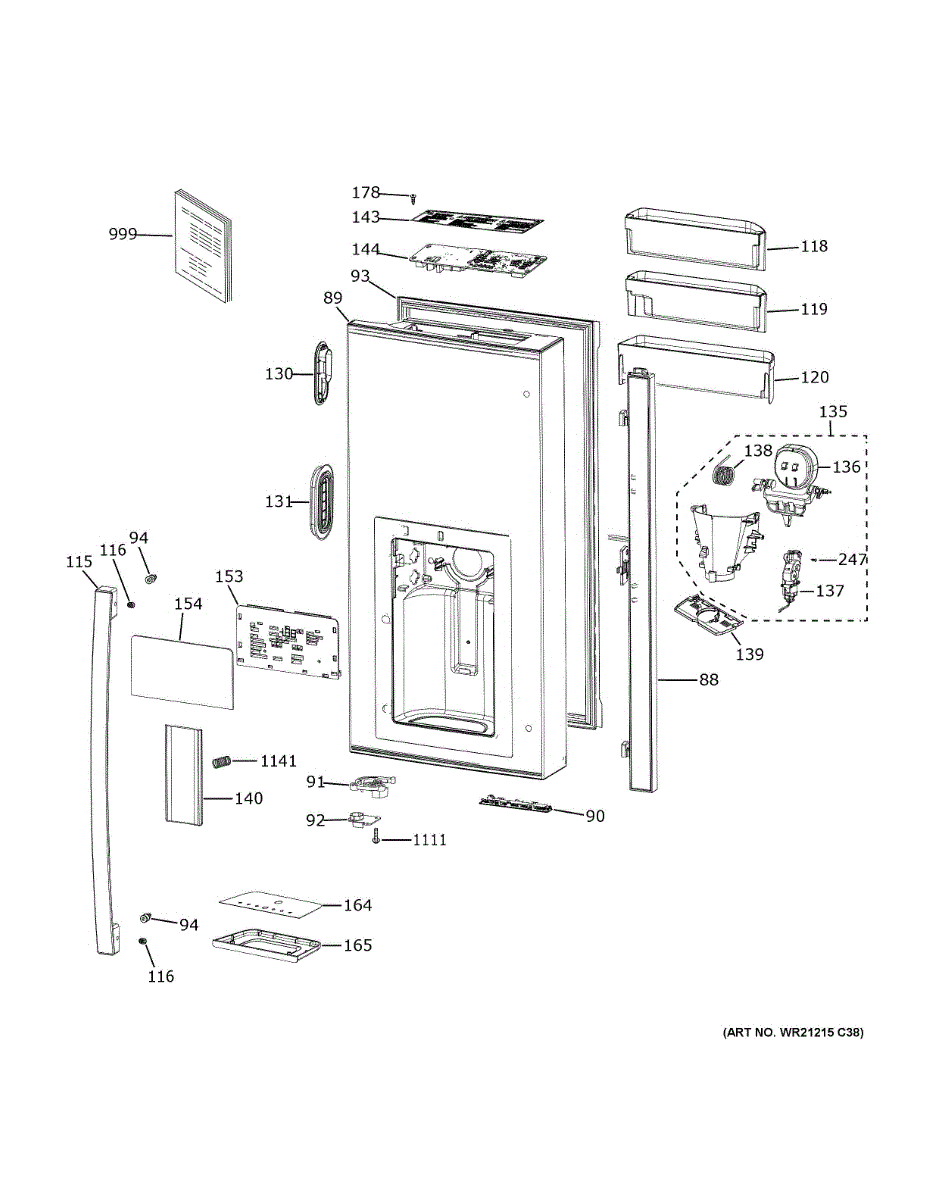

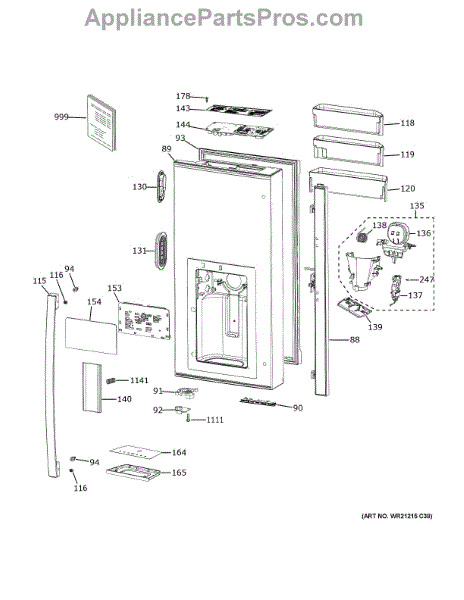

Parts for Ge PXD22BYPDFS: Dispenser Door Parts

This articulating mullion assembly replaces the center mullion on compatible French-door refrigerators to restore proper door alignment and sealing. It helps the doors close evenly and reduces air leaks that can raise energy use and spoilage. What it does:

• Provides the hinged center mullion that joins and guides the two doors for smooth opening and closing
• Restores proper door alignment to help maintain an even refrigerator seal
• Helps reduce gaps that can allow cold air to escape or warm air to enter
• Addresses symptoms like uneven doors, rubbing or binding at the center, and visible gaps between doors

• Turn off power to the appliance and remove food from affected compartments before beginning work
• Use appropriate hand tools and support both doors during removal/installation; a second person may be helpful
• Inspect mounting points and door edges for damage and replace any worn fasteners if needed

LED light assembly for refrigerator convertible or freezer drawer compartments. Replaces cracked, broken, or non-illuminating drawer lights.

Left-side door stop for bottom-mount refrigerators. Prevents door from overextending and maintains proper door alignment. Replace if cracked or missing.

Replacement fastener for refrigerator door handles. Secures handle to door with durable metal construction. Needed when original is cracked or broken.

Replaces a cracked, bent, or scratched refrigerator door handle. Restores a secure grip and clean appearance on your bottom-mount refrigerator door.

This set screw secures refrigerator components—most commonly door handles—to their mounting studs. Replacing a missing or stripped screw restores a solid, secure feel and helps prevent loose or wobbly handles.

• Locks the handle to its mounting stud to keep it tight and secure
• Helps resolve a loose, wobbly, sliding, or rattling handle
• Replaces a missing, rounded, or damaged set screw
• Helps maintain proper handle alignment and consistent door operation

• Unplug the appliance or switch off power before servicing
• Ensure the handle is fully seated on the studs before tightening
• Start the screw by hand to avoid cross-threading; then tighten until snug
• Do not overtighten to prevent stripping the screw or handle threads

Replace a cracked or worn clear door bin on your bottom-mount refrigerator. Restores secure storage for bottles and small items on the center-left door.

Clear plastic door bin that installs in the lower left position of your refrigerator door. Replace if cracked, broken, or missing to restore storage capacity.

Trim piece that reinforces the port opening on refrigerators. Secures tubing connections for proper alignment and a finished look. Replace if cracked or missing.

Seals the ice compartment door opening to maintain proper cold airflow and reduce frost buildup. Replace when worn or damaged to restore tight seal.

Fix ice dispensing issues with this ice funnel duct door and motor assembly. Solves problems with ice not dispensing or jamming in the chute mechanism.

Replaces a cracked, broken, or missing duct door in your refrigerator's air circulation system. This plastic door controls airflow between compartments.

The Duct Door Motor is an OEM replacement part for GE refrigerators. It is designed to control the opening and closing of the dispenser door, allowing for the release of ice from the dispenser.

A bad dispenser duct door motor can occur due to various factors, including normal wear and tear, motor failure, or damage to the motor mechanism. If you notice symptoms such as the dispenser duct door not opening or closing properly, or failure to dispense ice or water, it may indicate a need to replace the dispenser duct door motor.

Symptoms of a bad dispenser duct door motor include:

• Dispenser duct door not opening or closing properly
• Failure to dispense ice or water

Restore your refrigerator's dispenser system by replacing the faulty dispenser duct door motor with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


If your refrigerator vent door won't stay closed or airflow seems irregular, this duct door spring restores proper tension. Simple 5-minute fix.

The Stainless Drip Tray Cover is an OEM part for GE side by side refrigerators. It serves as the cover for the bottom drip tray in the refrigerator, allowing any spills or condensation to properly drain away while also keeping the drain area clean and hygienic.

Causes of a bad drip tray cover can include wear and tear from repeated cleaning, damage from impact or excessive weight, or warping due to moisture.

Symptoms of a bad drip tray cover include:

• Leaks or drips from the bottom of the refrigerator
• An unpleasant musty smell
• Accessible drainage area allowing for mildew or bacteria growth

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This stainless-steel drip tray catches spills and condensation under your appliance, protecting the cabinet and floor while keeping the area tidy. Durable metal construction resists corrosion and wipes clean for simple maintenance. What it does

• Collects water, drips and overflow from the appliance to prevent damage to surrounding cabinetry and flooring
• Direct-fit replacement designed to restore proper drainage and containment
• Stainless finish resists stains and is easy to clean with a damp cloth
• Helps reduce odors and mildew by containing spills until cleaned

• Designed as a direct-replacement; no modification expected
• Power off and disconnect the appliance if required to access the tray area
• Handle with care to avoid sharp edges; use gloves if needed
• Clean mounting area before installing the new tray to ensure proper seating

Round-head sheet metal screw (10-24 x 5/8) secures trim, panels, and internal components in refrigerators. Replace if missing, stripped, or corroded.

This selector control provides the hi/lo switching function for the oven/range heating circuit, restoring user control over high and low heat settings. It replaces a failed selector so the range can select the proper heat level reliably. What it does:

• Switches between high and low heat settings for the heating element or burner
• Restores control when heat setting changes do not respond or stick
• Helps eliminate intermittent or no-heat conditions caused by a worn selector
• Matches OEM function and mounting for a direct replacement

• One selector control assembly as shown

• Disconnect power to the appliance before starting any repair
• Handle electrical connections carefully; note wire locations or take a photo before removal
• Use basic hand tools; do not force connectors or mounting tabs

This small return spring provides the tension needed for a lever, latch, or flap mechanism in select refrigerators, helping the component move smoothly and snap back to its correct resting position after use.

• Restores proper tension so the linked mechanism operates smoothly and returns to neutral
• Helps doors, latches, or levers close or engage consistently
• Typical failure signs: weak or missing spring force, parts that don't spring back, poor closure, or rattling
• Replacing a fatigued spring can improve feel and reliability of the mechanism

• Disconnect power; turn off the water supply if working near dispenser or ice components
• Note spring orientation and take reference photos before removal
• Use needle-nose pliers and control stored tension to avoid injury
• Inspect related clips, pins, or brackets and replace if worn
