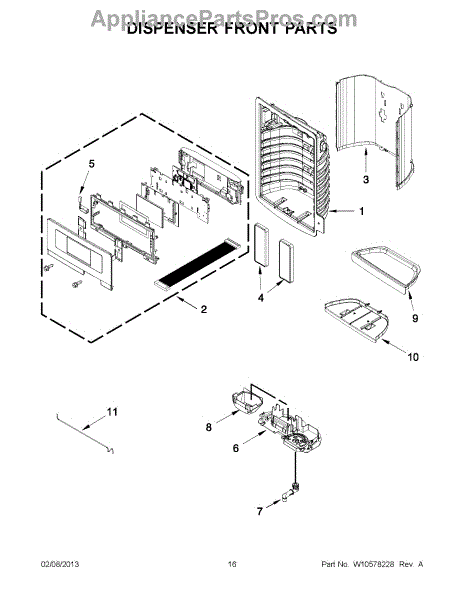

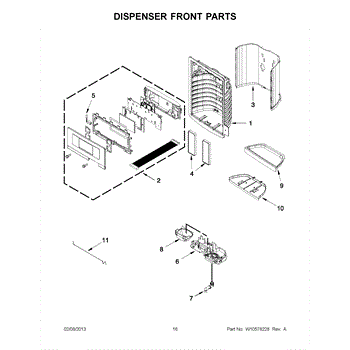

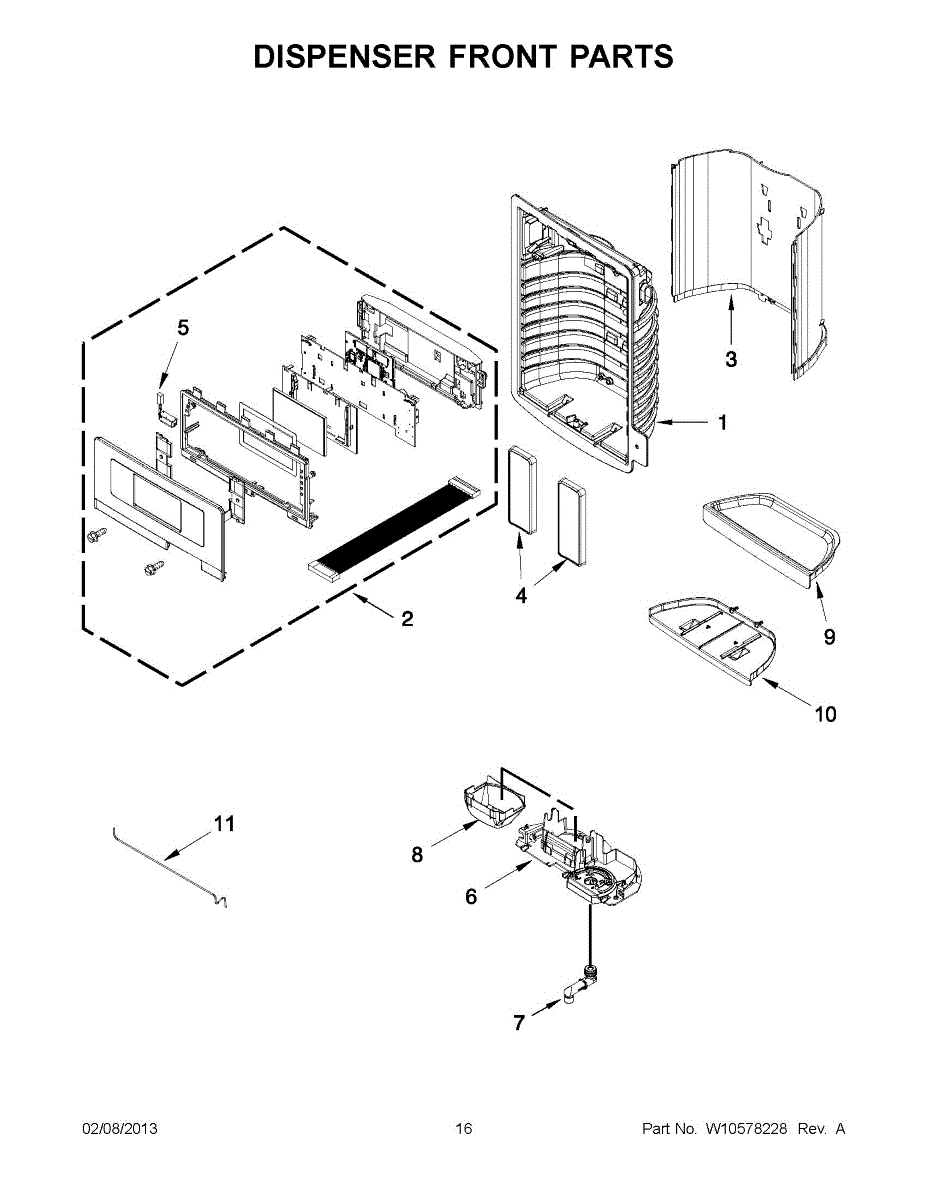

Parts for Whirlpool 5GI6FARAF001: 08 - Dispenser Front Parts

Fix a refrigerator with no ice or water dispensing, erratic controls, or unit won't run. This electronic control board restores function in minutes.

Replace a cracked or broken shield guard in your refrigerator. This protective cover installs to guard internal components from damage or wear.

Replacement dispenser actuator pads for refrigerator ice and water controls. Installs on dispenser housing. Replace if cracked, broken, or worn.

Illuminates your refrigerator's ice and water dispenser area. Replace if light is dim, flickering, or out. Confirm fit with your model number.

Forms the interior of your refrigerator's ice and water dispensing area. Replace if cracked, broken, or causing drips and frost buildup at the chute.

This spigot routes water from the internal supply to the dispenser outlet, delivering a controlled stream. Replacing a cracked or worn spigot helps restore proper dispensing and reduces drips or leaks at the dispenser area.

• Directs water from the internal tubing/reservoir to the dispenser outlet
• Maintains a defined flow path to help prevent splashing and after-drip
• Common symptoms of failure: dripping at the dispenser, slow/erratic flow, leaks inside the door, or visible cracks at the outlet
• Replace if damaged, leaking, or obstructed by mineral buildup

• Unplug the appliance and shut off the household water supply
• Dispense water to relieve line pressure before replacement
• Access the dispenser; note tubing orientation and fully seat/secure connections
• Restore water and power; flush the system and check all joints for leaks

Channels ice from maker to dispenser opening. Replace if cracked, broken, or missing to prevent ice scatter and jams. Installs in freezer door dispenser.

Catches drips and splashes in the dispenser recess of your refrigerator door. Replace if cracked, stained, or missing to keep the front panel clean.

This slide tray is the removable drip tray that catches spills and condensation from the refrigerator dispenser, keeping the cabinet floor and shelf area clean and dry. It slides out for quick cleaning and maintenance. What it does:

• Collects drips and overflow from the water/ice dispenser to prevent puddles under the dispenser
• Slides outward for easy access when wiping up spills or removing debris
• Re-seats into the dispenser assembly to maintain proper alignment and coverage
• Helps reduce need for frequent cleanups and keeps the dispenser area sanitary

• Disconnect power and turn off the water supply before servicing dispenser components
• Remove old tray by sliding it out; align new tray and slide in until it clicks or seats firmly
• Use only gentle pressure—do not force or pry parts into place
• If tray doesn't seat correctly, check for obstructions or damaged mounting tabs before operating

This water tube routes cold water from the household line to the refrigerator door dispenser, restoring reliable dispensing and preventing leaks at the door. Durable tubing designed for direct connection to dispenser fittings. What it does:

• Carries cold water from the inlet to the door-mounted dispenser assembly.
• Replaces cracked, pinched, or kinked tubing that causes leaking or poor flow.
• Helps stop slow or intermittent dispensing caused by damaged or collapsed tubing.
• Keeps the dispenser water path sealed when properly installed.

• Shut off the refrigerator and turn off the water supply before starting.
• Inspect and replace any damaged fittings or O-rings; tighten connections to prevent leaks.
• Route tubing without sharp bends or kinks; trim cleanly if shortening is required.
