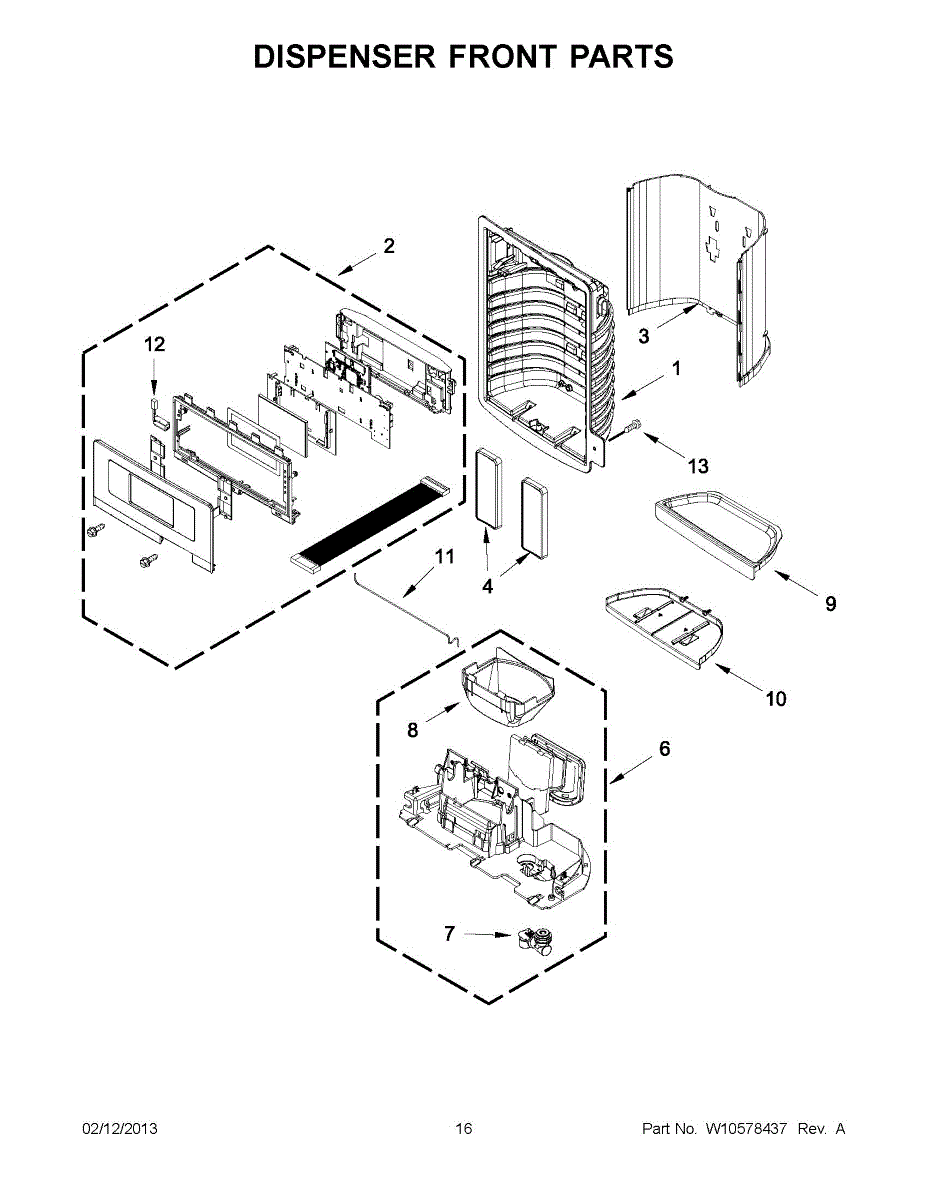

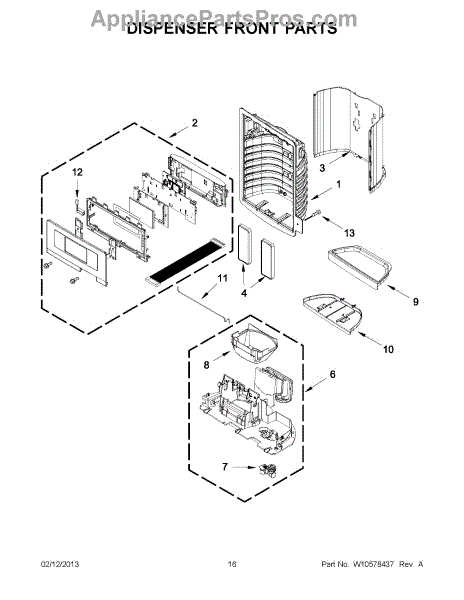

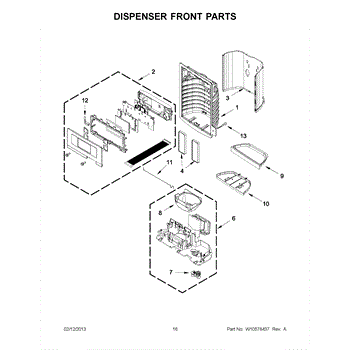

Parts for Whirlpool 5VGI6FARAF01: 08 - Dispenser Front Parts

This electronic control board is the appliance's central controller. It interprets user inputs and sensor data, manages cycle timing, and distributes power to key components to restore reliable operation when controls act erratically or the unit won't run. What it does:

• Coordinates cycle timing and overall operation based on user selections and sensor feedback
• Sends power to components such as motors, pumps, valves, and heating elements
• Monitors system status and may log/trigger diagnostic fault codes
• Common failure symptoms include no start, unresponsive or intermittent controls, incomplete cycles, or error codes

• 1 electronic control board

• Disconnect electrical power before servicing; verify no power is present
• Use ESD precautions; handle the board by the edges and avoid touching components
• Photograph/label wiring; transfer connectors one at a time to matching keyed positions
• Refer to the model's tech sheet for any required post-install checks or diagnostic procedures

The Ice and Water Dispenser Pads is an OEM replacement part for Whirlpool refrigerators. It consists of two actuator pads that attach directly to the dispenser housing and are responsible for activating both the water and ice dispensers. The pads work together to trigger the dispensing mechanism and intuitively control the flow of water and release of ice cubes.

Constant use can cause actuator pads to become worn out or damaged.

Symptoms of bad pads include:

• Intermittent or unreliable dispensing
• Increased difficulty activating the dispensers
• Dispensers activating on their own without input

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This dispenser separator assembly forms the interior of the refrigerator's ice/water dispensing area. It guides ice and water into your glass and helps seal the chute to limit warm air intrusion, drips, and frost at the opening.

• Forms and supports the dispenser recess and chute opening
• Provides sealing surfaces to help prevent air leaks that lead to frost or condensation around the dispenser
• Directs ice/water flow for cleaner, more controlled dispensing
• Replace if cracked, warped, loose, or if you notice frost/moisture around the chute or splashing/dripping during dispense

• Unplug the refrigerator and shut off the water supply before service
• Remove the dispenser front/trim to access the separator; handle wiring/connectors with care and reuse existing fasteners
• Avoid prying on finished surfaces; use non-marring tools
• Restore power and test ice and water dispensing; check for proper chute sealing

This spigot routes water from the internal supply to the dispenser outlet, delivering a controlled stream. Replacing a cracked or worn spigot helps restore proper dispensing and reduces drips or leaks at the dispenser area.

• Directs water from the internal tubing/reservoir to the dispenser outlet
• Maintains a defined flow path to help prevent splashing and after-drip
• Common symptoms of failure: dripping at the dispenser, slow/erratic flow, leaks inside the door, or visible cracks at the outlet
• Replace if damaged, leaking, or obstructed by mineral buildup

• Unplug the appliance and shut off the household water supply
• Dispense water to relieve line pressure before replacement
• Access the dispenser; note tubing orientation and fully seat/secure connections
• Restore water and power; flush the system and check all joints for leaks

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This dispenser drip tray sits in the door recess to catch drips and splashes during dispensing, helping keep the front of your refrigerator clean and reducing moisture that can run down the door onto surfaces below. What it does:

• Collects water droplets and minor spills in the dispenser area
• Helps reduce stains, residue, and corrosion around the dispenser opening
• Restores proper fit and appearance when the original tray is cracked, warped, or missing
• Common symptoms: water pooling in/under the dispenser, loose or ill-fitting tray, visible cracks or leaks

• 1 drip tray

• Unplug the refrigerator and shut off the water supply before servicing
• Lift out the old tray from the dispenser recess; clean and dry the area
• Align and press the new tray fully into place so it sits flat and secure
• Wipe away any remaining moisture before restoring power and water

This slide tray is the removable drip tray that catches spills and condensation from the refrigerator dispenser, keeping the cabinet floor and shelf area clean and dry. It slides out for quick cleaning and maintenance. What it does:

• Collects drips and overflow from the water/ice dispenser to prevent puddles under the dispenser
• Slides outward for easy access when wiping up spills or removing debris
• Re-seats into the dispenser assembly to maintain proper alignment and coverage
• Helps reduce need for frequent cleanups and keeps the dispenser area sanitary

• Disconnect power and turn off the water supply before servicing dispenser components
• Remove old tray by sliding it out; align new tray and slide in until it clicks or seats firmly
• Use only gentle pressure—do not force or pry parts into place
• If tray doesn't seat correctly, check for obstructions or damaged mounting tabs before operating

This water tube routes cold water from the household line to the refrigerator door dispenser, restoring reliable dispensing and preventing leaks at the door. Durable tubing designed for direct connection to dispenser fittings. What it does:

• Carries cold water from the inlet to the door-mounted dispenser assembly.
• Replaces cracked, pinched, or kinked tubing that causes leaking or poor flow.
• Helps stop slow or intermittent dispensing caused by damaged or collapsed tubing.
• Keeps the dispenser water path sealed when properly installed.

• Shut off the refrigerator and turn off the water supply before starting.
• Inspect and replace any damaged fittings or O-rings; tighten connections to prevent leaks.
• Route tubing without sharp bends or kinks; trim cleanly if shortening is required.

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This factory screw secures panels, brackets, and other components in your appliance. Replace a missing, stripped, or corroded fastener to restore a tight fit and keep parts properly aligned and rattle-free.

• Secures appliance components and panels in their mounting points
• Replaces damaged, stripped, or missing hardware
• Helps reduce rattling or vibration from loose parts

• Disconnect power; shut off water or gas supplies if applicable
• Match location with the original screw; start threads by hand to avoid cross-threading
• Tighten until snug; do not over-torque, especially into plastic or thin metal
• Reinstall any covers or panels and test for secure fit
