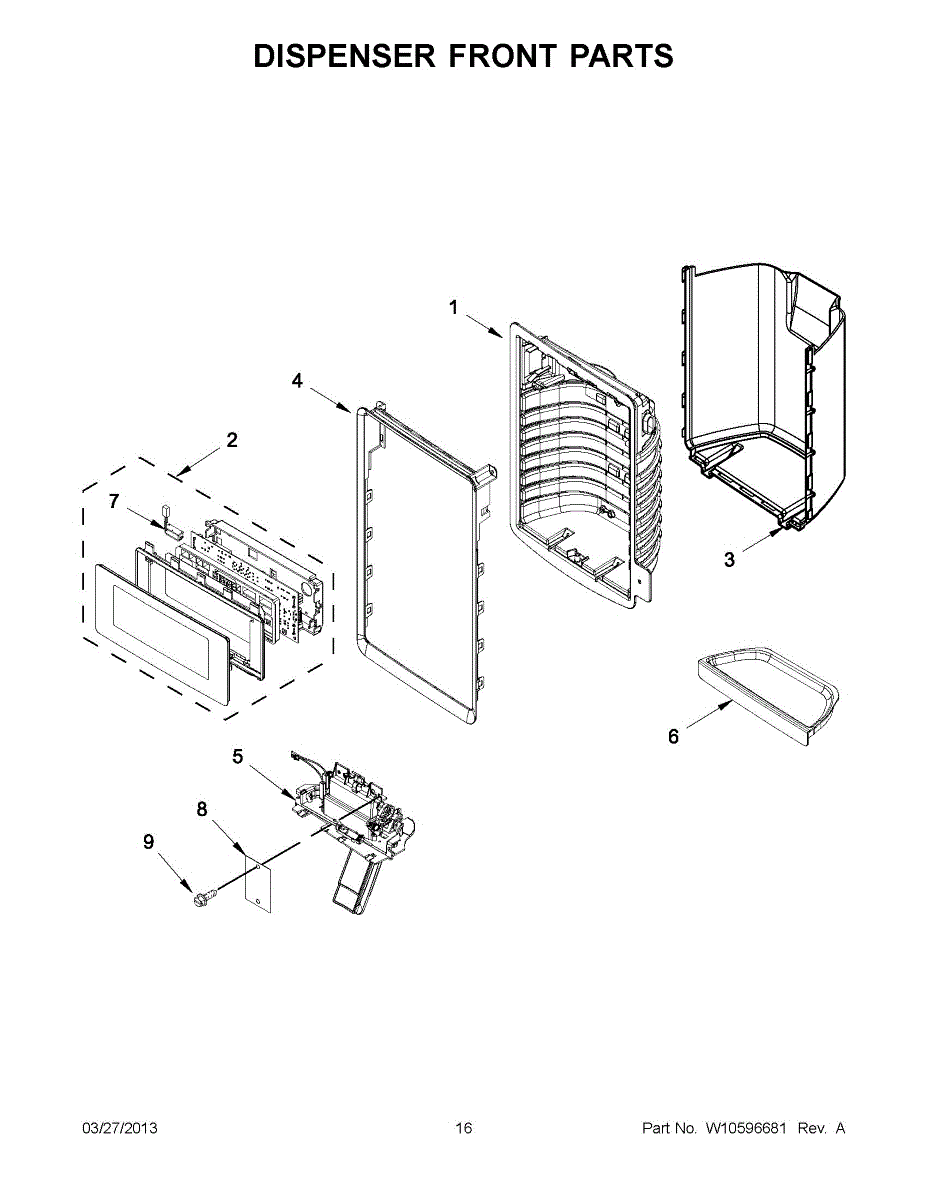

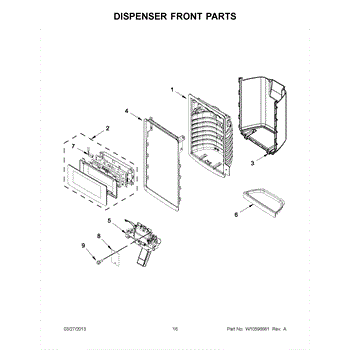

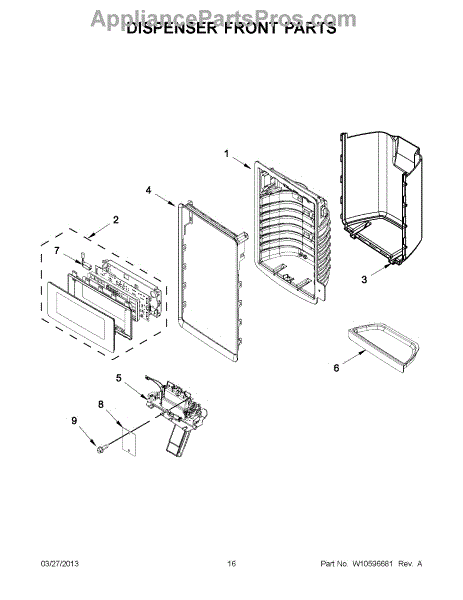

Parts for Whirlpool 7WF736SDAM10: 08 - Dispenser Front Parts

This electronic control board is the primary circuit module that governs your appliance's functions. Replacing a failed board can restore power to the controls and bring cycles and features back to normal operation.

• Directs power to motors, valves, heaters, and other components based on user selections and sensor inputs
• Coordinates timing and cycle logic; monitors status and protective interlocks
• Addresses issues such as an unresponsive control panel or display, failure to start, mid-cycle shutdowns, erratic operation, or control-related error codes

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD protection and handle the board by the edges to avoid static damage
• Photograph/label all connections; move connectors to the new board one at a time
• Some models require service-mode programming or calibration after installation—follow the tech sheet for your model

This ice door replaces the flip/cover on the refrigerator ice dispenser to help control ice flow and keep the ice chute sealed. Restores proper opening and closing so ice dispenses cleanly and helps reduce warm air entering the compartment. What it does:

• Covers and seals the ice chute to help keep ice inside the bin and reduce melting or clumping
• Opens and closes with the dispenser mechanism to allow ice to pass through while minimizing drafts
• Prevents debris from entering the ice chute and helps maintain dispenser hygiene
• Helps restore normal dispensing if the original door is cracked, broken, or sticking

• Disconnect power to the appliance before starting any repair
• Remove ice bin and any obstructing parts per your model's service instructions to access the door
• Typically secures with clips or a small screw; handle plastic tabs carefully to avoid breakage

This dispenser drip tray sits beneath the ice/water dispenser recess to catch small drips and spills. Replacing a cracked or missing tray helps protect the door and floor while keeping the dispenser area neat and easier to clean. What it does:

• Collects water and beverage drips from the dispenser area
• Helps prevent moisture from running down the door or onto the floor
• Restores a clean, finished look if the original is cracked, warped, stained, or missing
• Improves fit if the old tray no longer sits securely

• One dispenser drip tray

• Unplug the refrigerator and turn off the water supply before servicing
• Lift the old tray straight out; clean the recess of debris and residue
• Align and press the new tray in until it sits flush and secure
• Do not force or pry against surrounding trim to avoid damage

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal
